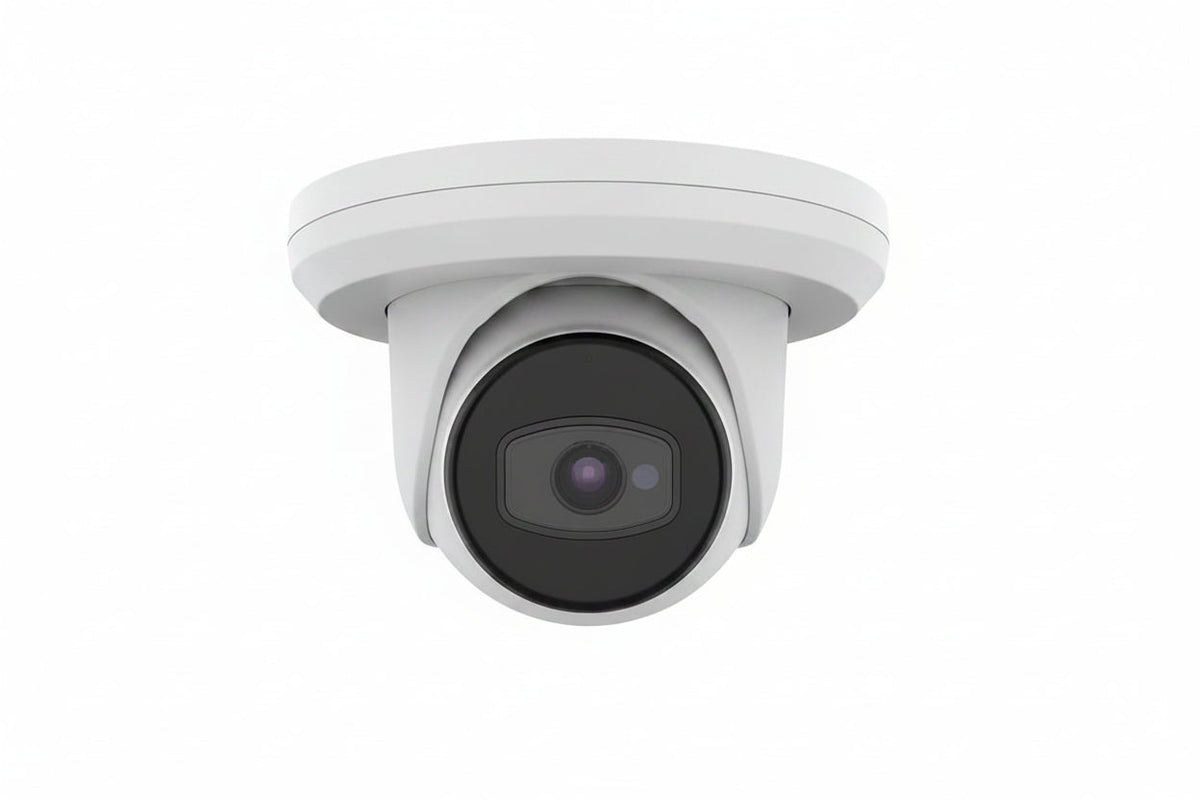

Hanwha ACE-6020R A-Series 2MP Turret Analog Camera, 3.6mm Fixed Lens

The Hanwha ACE-6020R is a 2MP analog turret camera from the A-Series, built for CCTV installs that need dependable day and night coverage. It records Full HD video over AHD, uses a flat lens design to keep IR glare and water spots down, and carries IP67 and IK10 ratings for exposed locations. It suits installers and businesses upgrading or expanding wired analog systems.

Key features

• Delivers 2MP resolution at up to 30 fps.
• Switches between day and night operation, with infrared night vision reaching 25m.
• Uses a fixed 3.6mm lens for a consistent field of view.
• Carries IP67 and IK10 ratings for weather and impact resistance.
• Combines the footprint of a dome with the benefits of a bullet-style camera in its Flateye form factor.

Specifications

Model: ACE-6020R

Brand: Hanwha

Product series: A

Form factor: Flateye

Analog video signal format: AHD

Effective camera resolution: 2MP

Maximum video resolution: 1920 x 1080

Maximum resolution: 1280 x 720

Maximum frame rate: 30fps

Recording format: Full HD

Aspect ratio: 16:9

Image sensor type: CMOS

Lens type: Fixed focus

Focal length: 3.6mm

Maximum aperture: f/1.6

Field of view (horizontal): 77.6°

Field of view (vertical): 40.30°

Shutter speed: 1/30 second (longest), 1/50,000 second (shortest)

Night vision: Yes, infrared (IR)

Night vision distance: 82.02'

Ingress protection rating: IP67

Impact protection rating: IK10

Durability: Impact resistant

Mount type: Backbox mount

Connectivity: Wired

Input voltage: 12V DC

Operating temperature: -22°F to 131°F

Operating humidity: 0-90% RH

Diameter: 4.72″

Weight: 0.90 lb

Color: White

Lens included: Yes

Country of origin: KR

Installation notes

The camera mounts on a backbox, so confirm the mounting surface and cable entry are ready before fitting it. Use a stable 12V DC supply, and aim the camera clear of nearby surfaces so infrared light is not reflected back into the lens at night.
