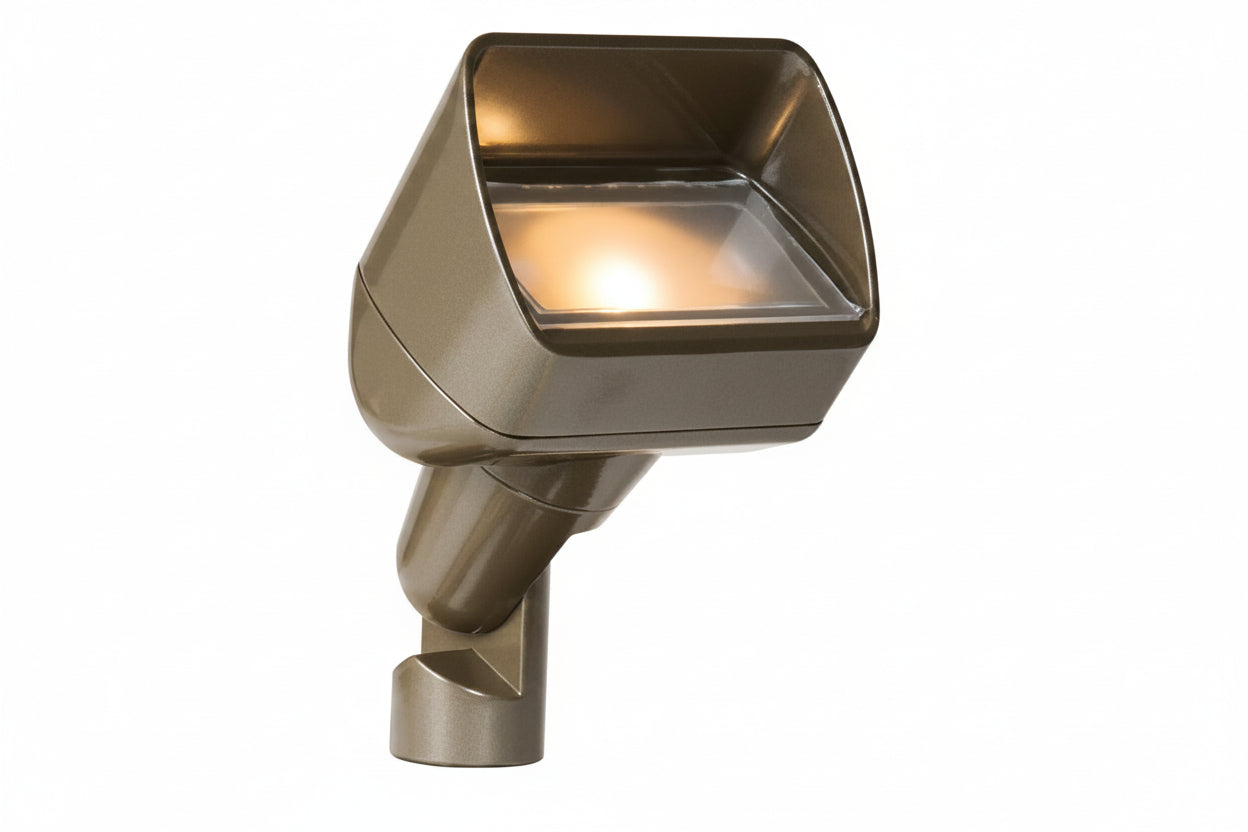

FX Luminaire PB-ZD-3LED-BZ Designer Collection LED Up Light, Zone / Dim with Luxor, 4.0W / 4.4VA, Warm, Bronze Metallic

The FX Luminaire PB-ZD-3LED-BZ (model PBZD3LEDBZ) is a landscape LED up light from the Designer Collection, finished in bronze metallic with a warm LED color. It is built for accent and wall-wash lighting outdoors, and suits installers and homeowners who want a zone/dim fixture that works with Luxor control. The ProAim adjustable aiming and the layered marine-grade finish are what set it apart.

Key features

• The body is die-cast aluminum or brass.
• A two-layer marine-grade anodization and powder coat finish protects the surface.
• Lumileds integrated LEDs provide the light source.
• ProAim adjustability moves in 9° increments over 220° of vertical alignment, and its compress-and-lock design keeps the aim from slipping after installation.
• The fixture is compatible with Luxor technology and is dimmable by phase or PWM.
• It runs on a 10-15V input.

Specifications

Brand: FX Luminaire

Model: PBZD3LEDBZ

Product line: Designer Collection

Product model: Designer PB Wall Wash

Product type: Landscape Lighting

Power: 4.0W / 4.4VA

Input voltage: 10-15V

Width: 4.03″

Height: 6.72″

Environmental certification: RoHS

Environmentally friendly: Yes

Luxor compatible: Yes

Installation notes

Set the aim with the ProAim adjustment and tighten the compress-and-lock mechanism once the beam is where you want it. Confirm the supply voltage at the fixture falls within the 10-15V input range, and match the dimming method (phase or PWM) to the controller you are using.
