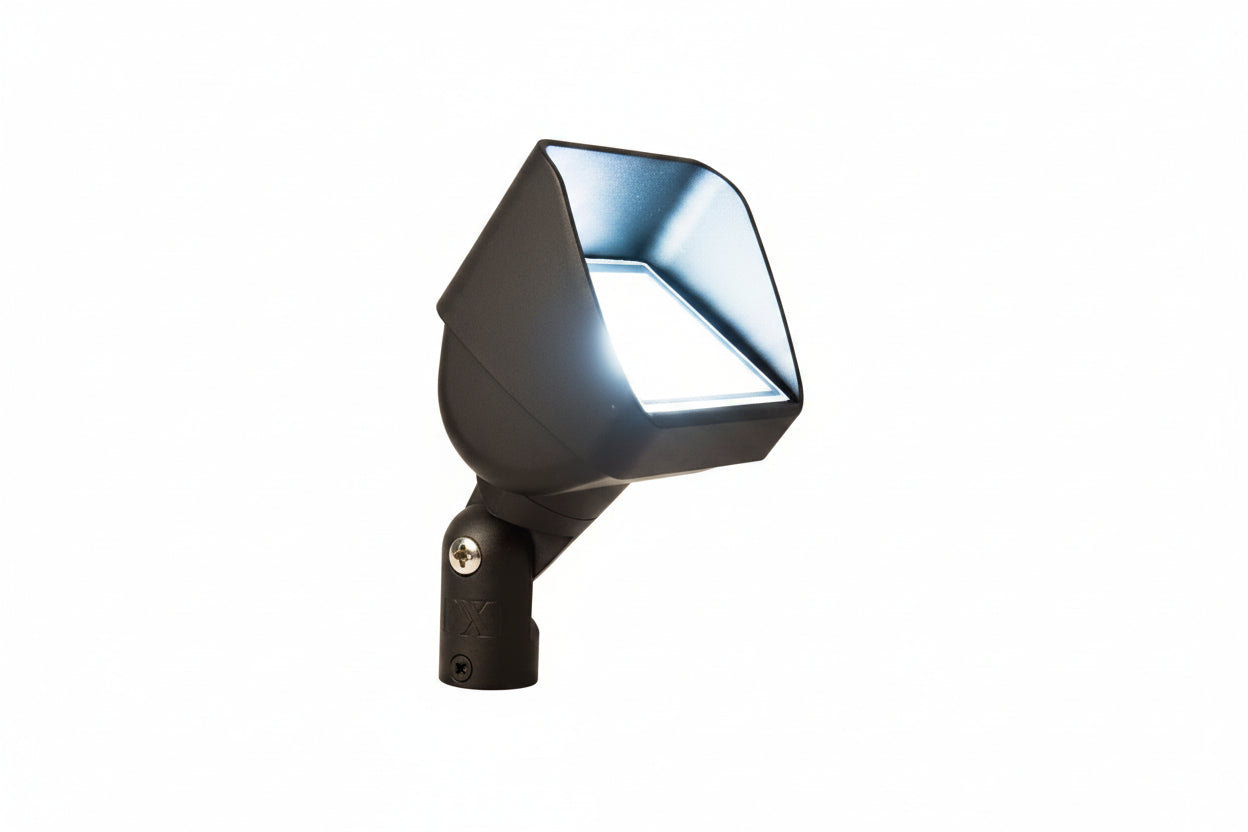

FX Luminaire LC-ZDC-FB Wall Wash Designer Collection Series LC Wall Wash, Zone / Dim / Color with Luxor, Black

The FX Luminaire LC-ZDC-FB (model LCZDCFB) is a landscape wall wash light from the Designer Collection, finished in black. It's built to wash walls and other vertical surfaces with light, and it suits landscape lighting installers and homeowners who want a controllable fixture with Luxor technology. Its die-cast aluminum body, ProAim adjustability and phase dimming are what stand out.

Key features

• The die-cast aluminum body has a two-layer marine-grade anodization and powder coat finish.
• Lumileds integrated LEDs provide the light source.
• ProAim adjustability uses compress-and-lock features to prevent slip after installation.
• Aiming adjusts in 9° increments over 220° of vertical alignment.
• It is compatible with Luxor technology and is phase dimmable.
• Tamper-resistant features are included, and the input voltage is 10-15V.

Specifications

Brand: FX Luminaire

Model: LC-ZDC-FB

Product Line: Designer Collection

Product Type: Landscape Lighting

Light Output: 192lm

Input Voltage: 10-15V

Features: Compatible with Luxor technology

Certifications & Standards: IEC 60598-1

Installation notes

Set the aim before final tightening, then lock it using the compress-and-lock mechanism so the fixture holds position. Confirm the supply stays within the 10-15V input range at the fixture, and check the dimming setup with your controls before burying or concealing the cabling.
