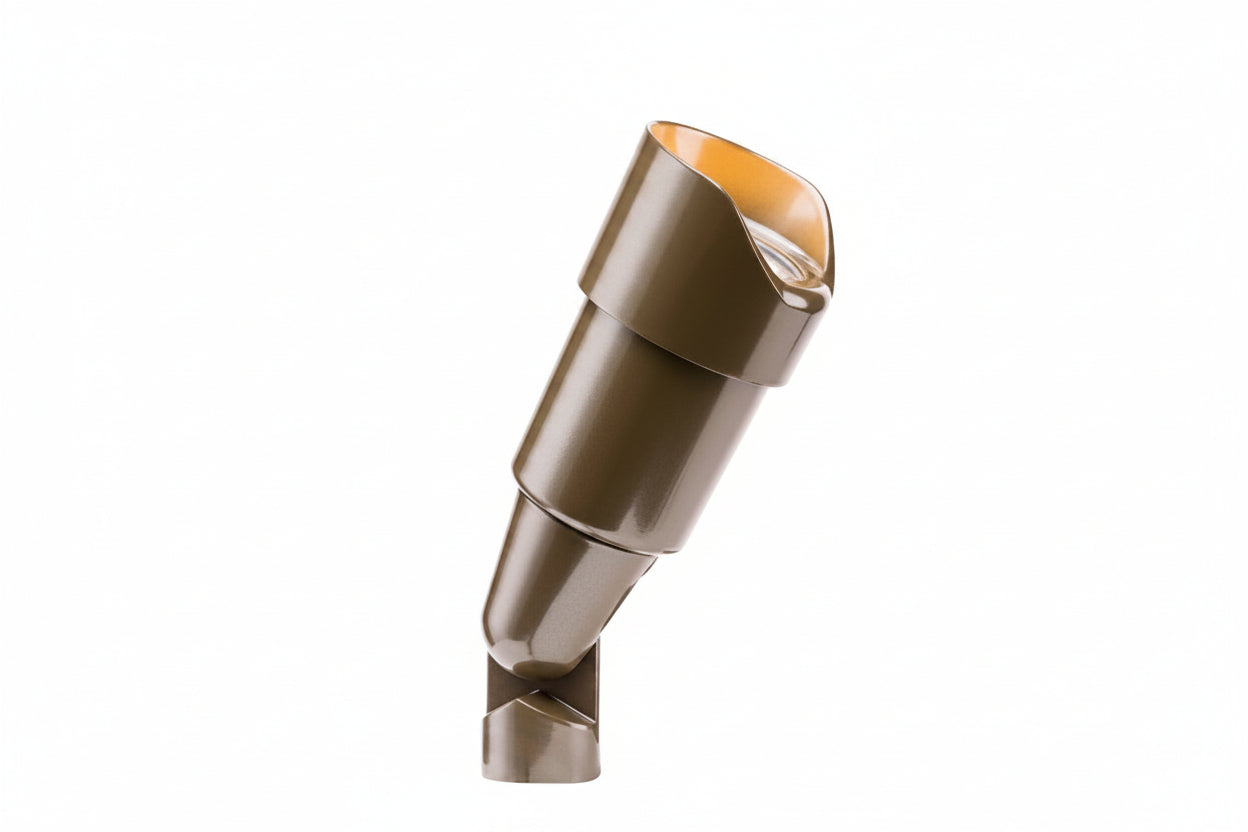

FX Luminaire RS-LED20WFL-BZ Vantage Collection Up Light, 4.3VA, 2700K, 35° LED MR-16 Lamp, Bronze Metallic

The FX Luminaire RS-LED20WFL-BZ (model RSLED20WFLBZ) is a Vantage Collection landscape up light that uses an LED MR-16 lamp with a 35° beam and 2700K color. It suits installers and homeowners who want to accent trees, walls and other features from ground level while keeping glare under control. The built-in shield, adjustable aiming and bronze metallic finish are what set it apart.

Key features

• A built-in shield and spring-loaded lamp positioning give you control over glare and photometry.
• ProAim adjustability uses compress-and-lock to prevent slipping after installation, with 9° increments across 220° of vertical alignment.
• Marine-grade anodization and a polyester TGIC powder-coat finish are meant to hold up outdoors in all conditions.
• The MR-16 lamp sits in a premium socket with a ceramic base and retaining clips.
• It is compatible with Luxor technology for powerline zoning and smooth dimming.
• It includes a Super Slot Spike ground stake made from 100% recycled material.

Specifications

Brand: FX Luminaire

Model: RSLED20WFLBZ

Product Model: Vantage RS Accent Light

Product Line: Vantage Collection

Product Type: Landscape Lighting

Height: 6.50″

Light Output: 250lm

Color Temperature: 2700K

Beam Angle: 35°

Power: 4.3VA

Features: Compatible with Luxor technology

Certifications & Standards: IEC 60598-1

Installation notes

Set the fixture in the ground stake and aim it before locking the position, then check the beam at dusk to confirm glare is controlled. Plan cable runs and connections for the low-voltage system, and follow Luxor guidance if you are using powerline zoning or dimming.
