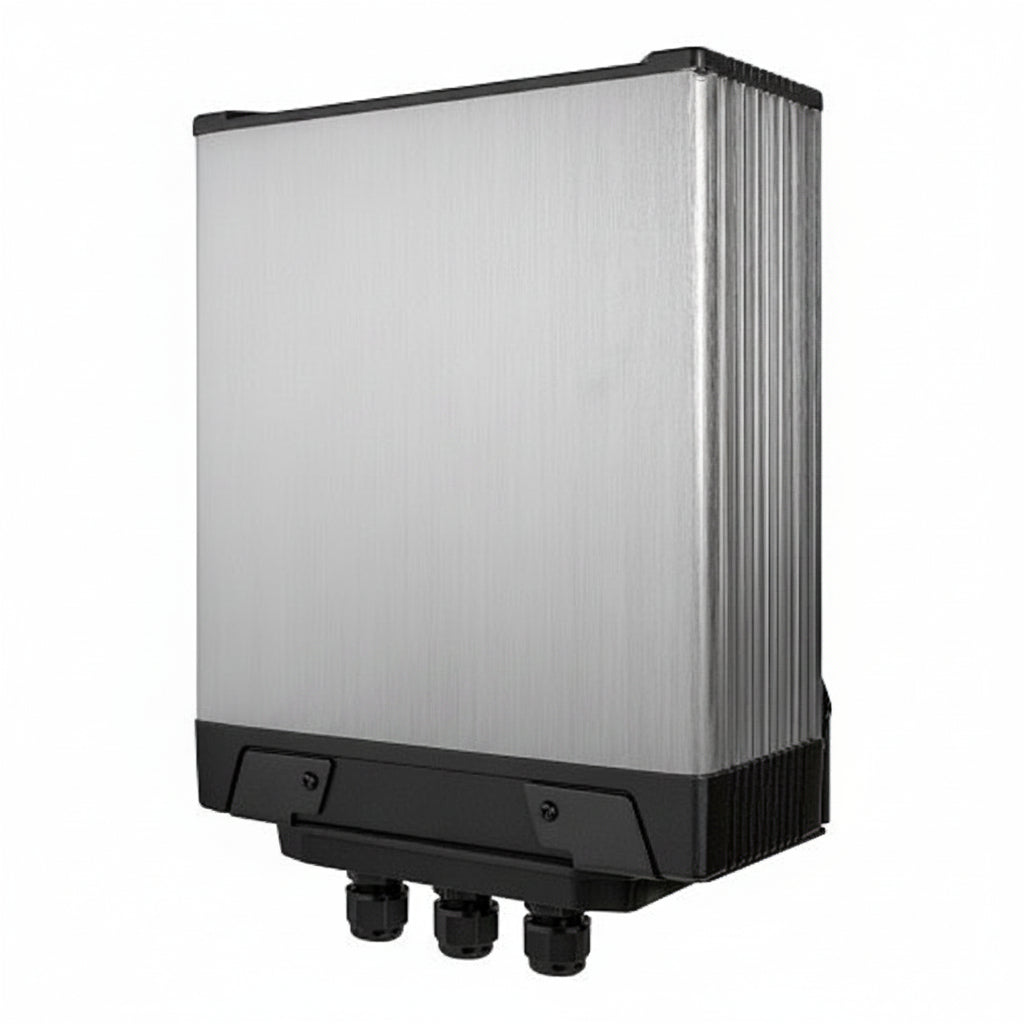

Episode ES-RAD-MB1-300 Radiance MB-1 Outdoor Audio and Lighting Processor

The Episode ES-RAD-MB1-300 Radiance MB-1 is an outdoor audio and lighting processor that lets one unit handle both speaker and landscape lighting duties. It suits installers and homeowners who want audio and lighting combined in a small, outdoor-rated package. When driven by an Episode Hybrid 1000 Amplifier, it supports up to 500W of audio and up to 300W of lighting.

Key features

• Combines up to 500W of audio and up to 300W of lighting when driven by an Episode Hybrid 1000 Amplifier.
• Accepts a 12V or 15VAC or DC input from a standard non-dimmable lighting transformer.
• IP66 rated for outdoor use, so it can sit close to the lighting transformer.
• The mounting bracket allows secure mounting to any surface.
• Built-in fuse protection helps prevent damage from improper wiring.

Specifications

Model: ES-RAD-MB1-300

Brand: Episode

Product Series: Radiance

Product Type: Outdoor

Indoor/Outdoor: Outdoor

Compatibility: Control4

Operating Temperature: -4 to 140°F

Storage Temperature: -22 to 158°F

Dimensions: 4.09″ x 8.76″ x 9.06″

Installation notes

Mount the MB-1 near the lighting transformer to keep cable runs short, and use a non-dimmable transformer on the input. Double-check polarity and wiring before applying power, since the fuse protects against improper wiring but is no substitute for a careful install.
