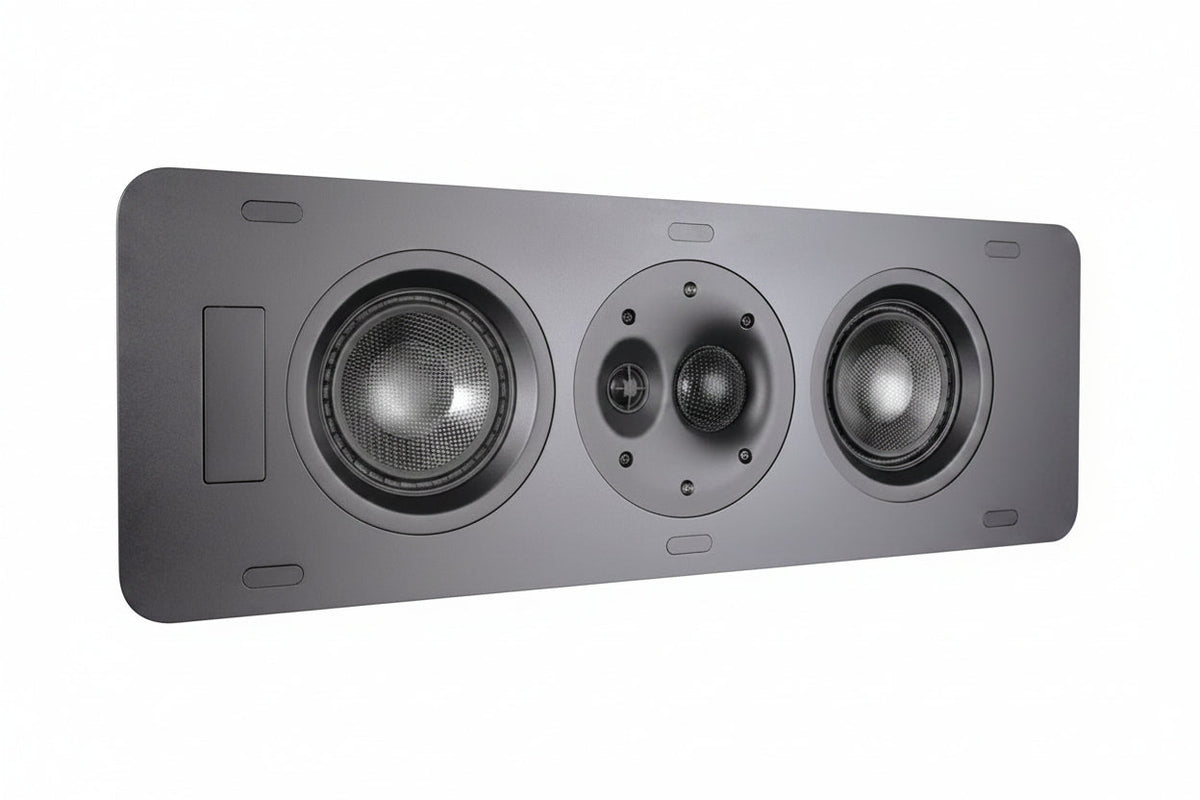

Episode ES-HTR-IWLCR-M-6 Home Theater Reference Series Medium In-Wall LCR Speaker, 6"

The Episode ES-HTR-IWLCR-M-6 is a medium in-wall LCR speaker from the Home Theater Reference Series, built to handle the left, center or right channel in a home theater. It suits installers and homeowners who want a reference-level in-wall option with a 2″ aluminum dome midrange and carbon fiber woofers. Episode describes its approach as "Sound Based on Science," with the drivers acoustically matched for an immersive experience.

Key features

• A 2″ aluminum dome midrange is used for detailed sound.
• Carbon fiber woofers resist deformation.
• Linkwitz-Riley filters with Zobel impedance matching are part of the crossover design.
• Tonal balance controls let you tune the sound to the room.
• Premium components are chosen for faithful audio, and the drivers are acoustically matched.

Specifications

Model: ES-HTR-IWLCR-M-6

Brand: Episode

Product Type: In-Wall

Speaker Type: LCR

Product Series: Dynamic Series

Maximum Frequency Response: 25kHz

Sensitivity: 93dB

Impedance: 6Ohm

Dimensions: 11.02″ x 31.89″ x 4.02″

Cutout Dimensions: 10 x 30.95″

Installation notes

Mark and cut the opening to the listed cutout dimensions, and check the wall cavity for enough depth before mounting. Run speaker cable before drywall goes up where possible, and set the tonal balance controls during commissioning while listening from the main seating position.
