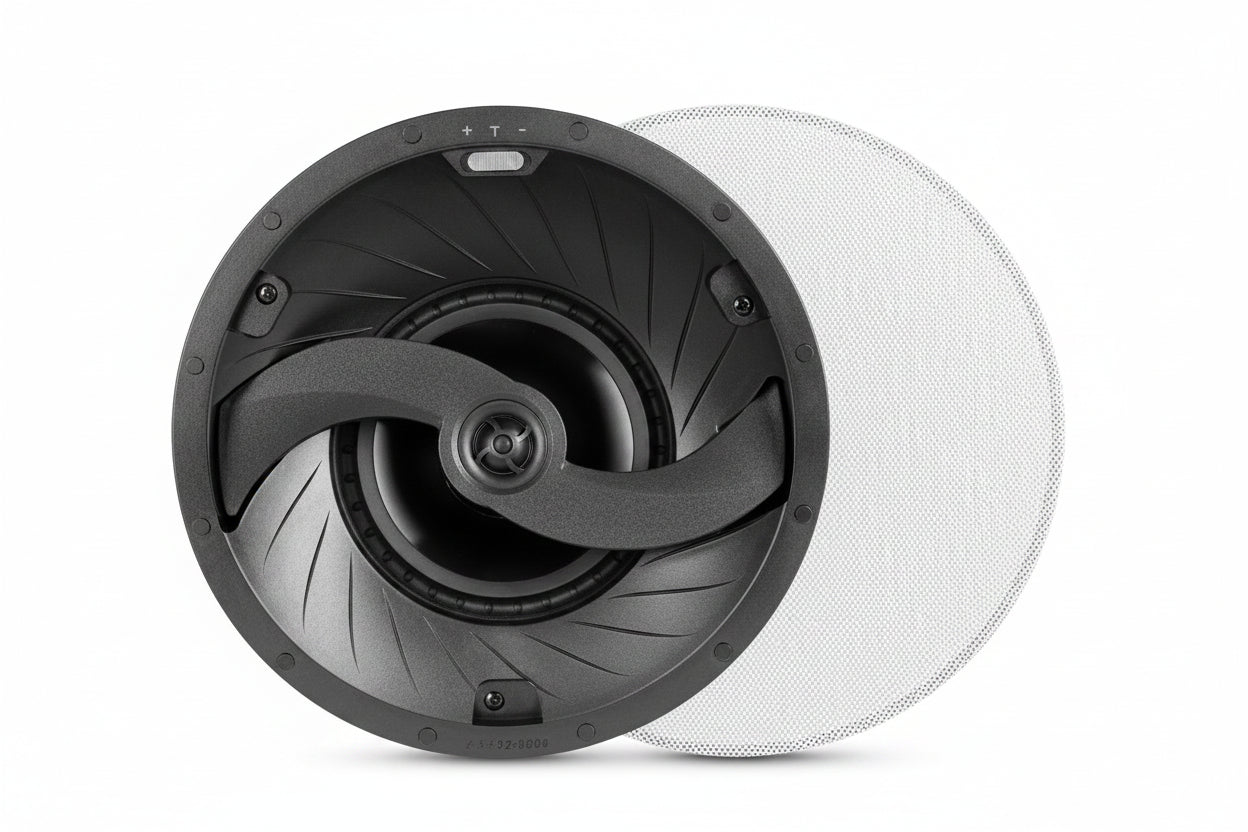

Episode ES-CORE-56-IC-POINT CORE 5 Series 6" In-Ceiling Point Speaker

The Episode ES-CORE-56-IC-POINT is a 6″ in-ceiling point speaker from the CORE 5 Series, sold individually. It is aimed at installers and homeowners who want in-ceiling audio with a clean look, thanks to its bezel-less grille. The angled baffle and adjustable tweeter let you aim sound toward the listening area.

Key features

• The cone is injection-molded polypropylene.
• A Teteron dome tweeter handles the high frequencies.
• Point Speaker Technology with an angled baffle is built into the design.
• A tweeter adjustment switch lets you tune the high-frequency output.
• A tweeter bridge handle is included on the speaker.
• The bezel-less grille gives the ceiling a cleaner appearance.

Specifications

Brand: Episode

Model: ES-CORE-56-IC-POINT

Product Line: Core

Product Series: 5

Product Type: Speaker

Sensitivity: 90dB

Impedance: 4Ohm

Frequency Response: 52Hz to 20kHz

Size: 0.75″

Height: 10.60″

Depth: 4.80″

Weight: 3.20lb

Installation notes

Check that the ceiling cavity has enough clearance for the 4.80″ depth before cutting. Confirm the amplifier is rated for a 4 ohm load, and set the tweeter switch and aim the speaker once you have listened in the room.
