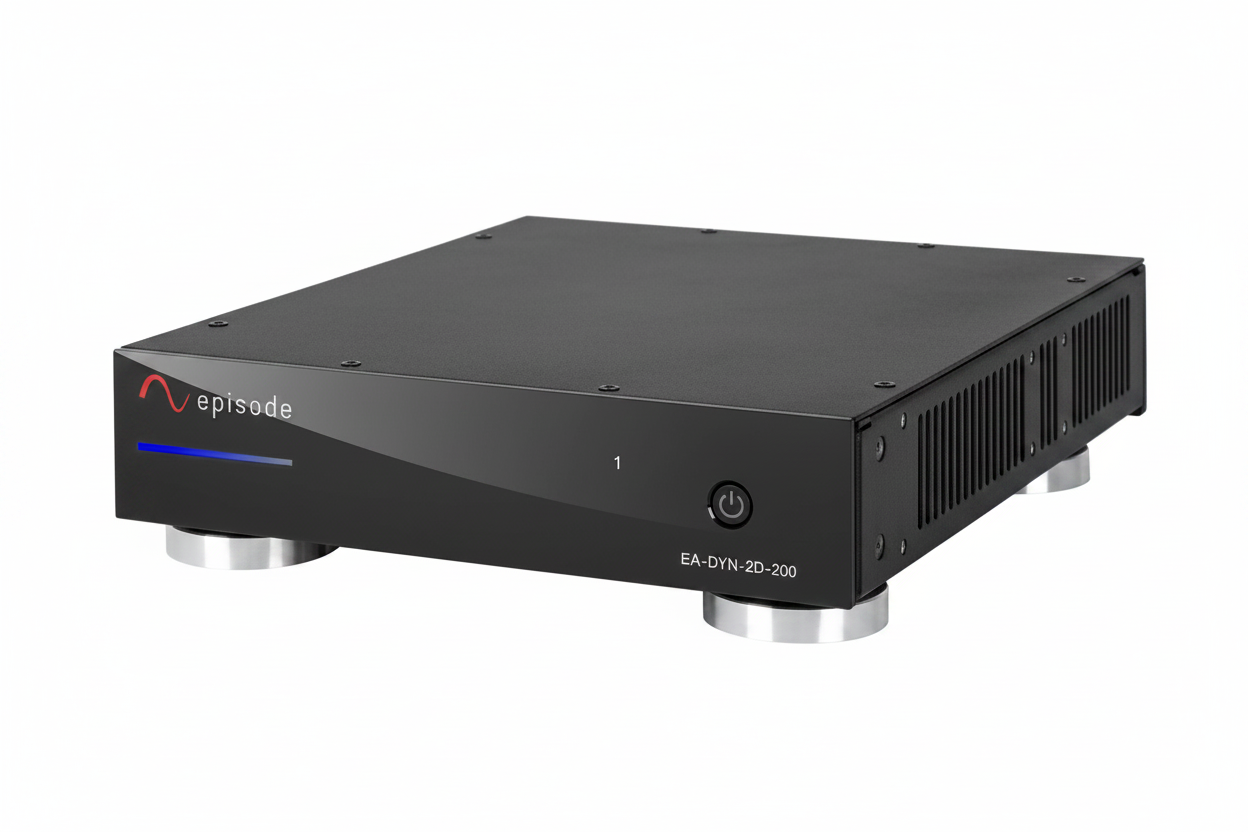

Episode EA-DYN-2D-200 Dynamic Series Class-D Amplifier, 200W x 2 Channel

The Episode EA-DYN-2D-200 is a 2-channel Class-D amplifier from the Dynamic Series, rated at 200W per channel. It suits installers building sophisticated audio systems who want a compact 1U amplifier with bridgeable outputs and adjustable gain control. Audio sensing and global inputs add flexibility, and the series scales up to 1000 total watts across its channel options.

Key features

• Delivers 200W on each of its two Class-D channels.
• Outputs can be bridged, and gain is adjustable to match the system.
• Audio sensing and global inputs help with versatile system design.
• Uses an efficient design built with premium components.
• ESD and surge protection are built in for reliability.
• The Dynamic Series is also offered in 8-, 12-, and 16-channel versions, with up to 1000 total watts.

Specifications

Brand: Episode

Model: EA-DYN-2D-200

Product Type: Class-D Amplifier

Product Series: Dynamic

Product Line: MRA

Channels: 2

Power: 200W x 2 channel

Color: Black

Rack Height: 1U

Maximum Frequency Response: 20kHz

Total Harmonic Distortion (THD): 0.1% – 0.5%

Compatibility: Control4

OvrC Enabled: No

Certifications: UL, CE, FCC

Dimensions: 7.9x2.33x10.25

Weight: 4.00lb

Coverage: 2-Year Limited

Installation notes

Leave open space around the 1U chassis for airflow when rack mounting, and keep speaker wiring runs tidy and separate from line-level input cables. Confirm the gain setting and whether outputs are bridged before connecting speakers.
