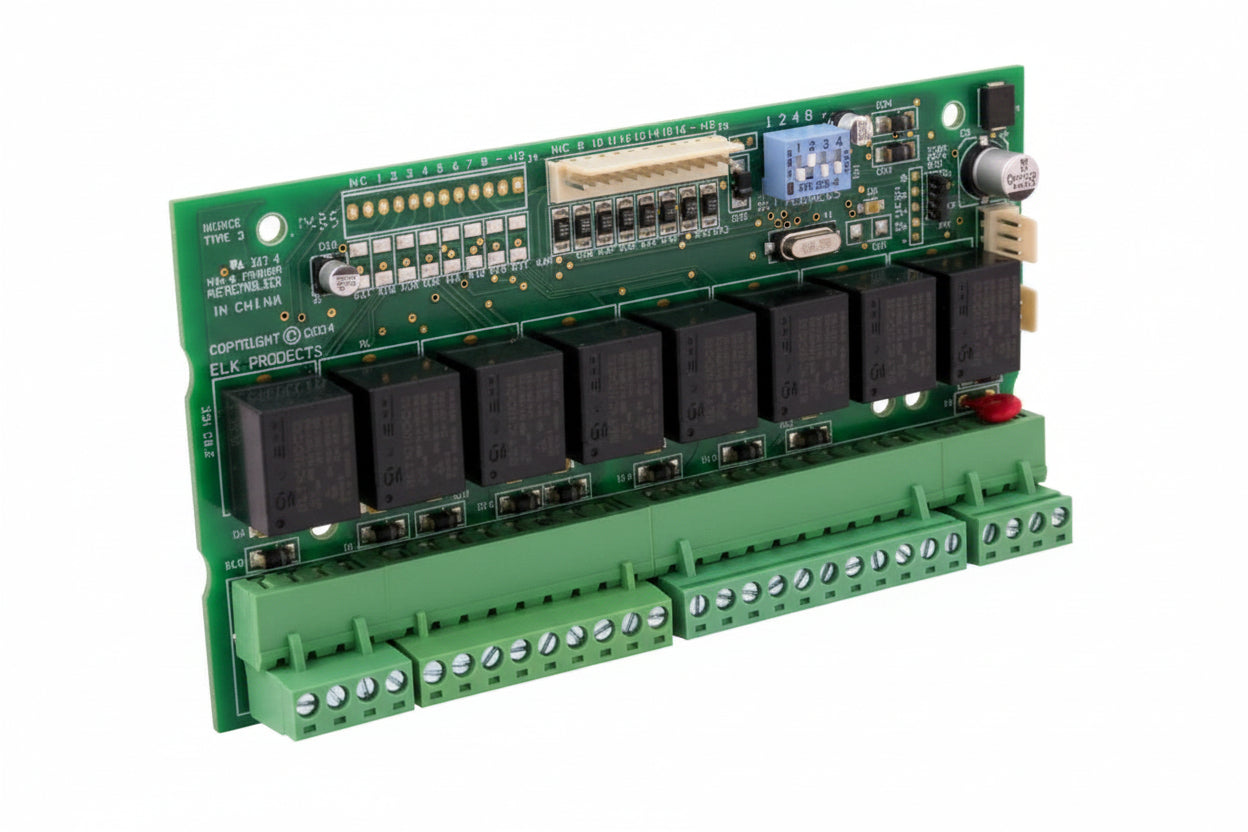

ELK M1XOVR 16 Output Expander, Voltage and Relays

Price: $262.70Model: M1XOVR
In stock — ready to ship Free US shipping on orders $500+ · $237.30 to go
Need a project quote?
ELKShop all ELK →
ELK M1XOVR 16 Output Expander, Voltage and Relays
  • Free US shipping
    on orders $500+
  • 30-day returns
    unused, in original box
  • Secure checkout
    Shopify Payments
  • Product help
    before & after you buy

About the M1XOVR

The ELK M1XOVR is a 16-output expander for M1 Gold and M1EZ8 controls, adding 8 voltage outputs and 8 relay outputs. It suits installers extending an M1 alarm system that need extra outputs to trigger low-current devices or switch loads. It connects over the panel's 4-wire data bus, so it doesn't need a separate control path.

Key features

  • Adds 8 voltage outputs to the control.
  • Adds 8 single-pole, double-throw relay outputs.
  • Connects to the 4-wire data bus.
  • Uses DIP switches to set the address.
  • Flash memory allows firmware updates.
  • Voltage outputs can trigger low-current devices, up to 50 mA each.

Specifications

Brand: ELK

Model: ELKM1XOVR (M1XOVR)

Product type: Alarm Control Panel Expansion Module

Product line: M1

Outputs: 8 voltage, 8 relay

Voltage output current: 50 mA max. each

Relay rating: 7A @ 30 VDC, 10A @ 125 VAC

Input voltage: 12V DC

Installation type: Residential

Status indicators: Yes

Width: 6.00″

Height: 0.80″

Depth: 3.30″

Environmental certification: RoHS

Country of origin: US

Installation notes

Set a unique address on the DIP switches before powering the module, and keep the 12V DC supply and data bus wiring tidy. Check that each voltage output load stays within its current limit and that each relay load is within its contact rating.

Specifications

BrandELK
ModelM1XOVR
Product typeELK M1XOVR 16 Output Expander, Voltage and Relays

Specs are taken from the manufacturer listing. Need a detail that isn't here? Ask us.
