ELK-960 Delay Timer Module, 12 to 24VDC Operation

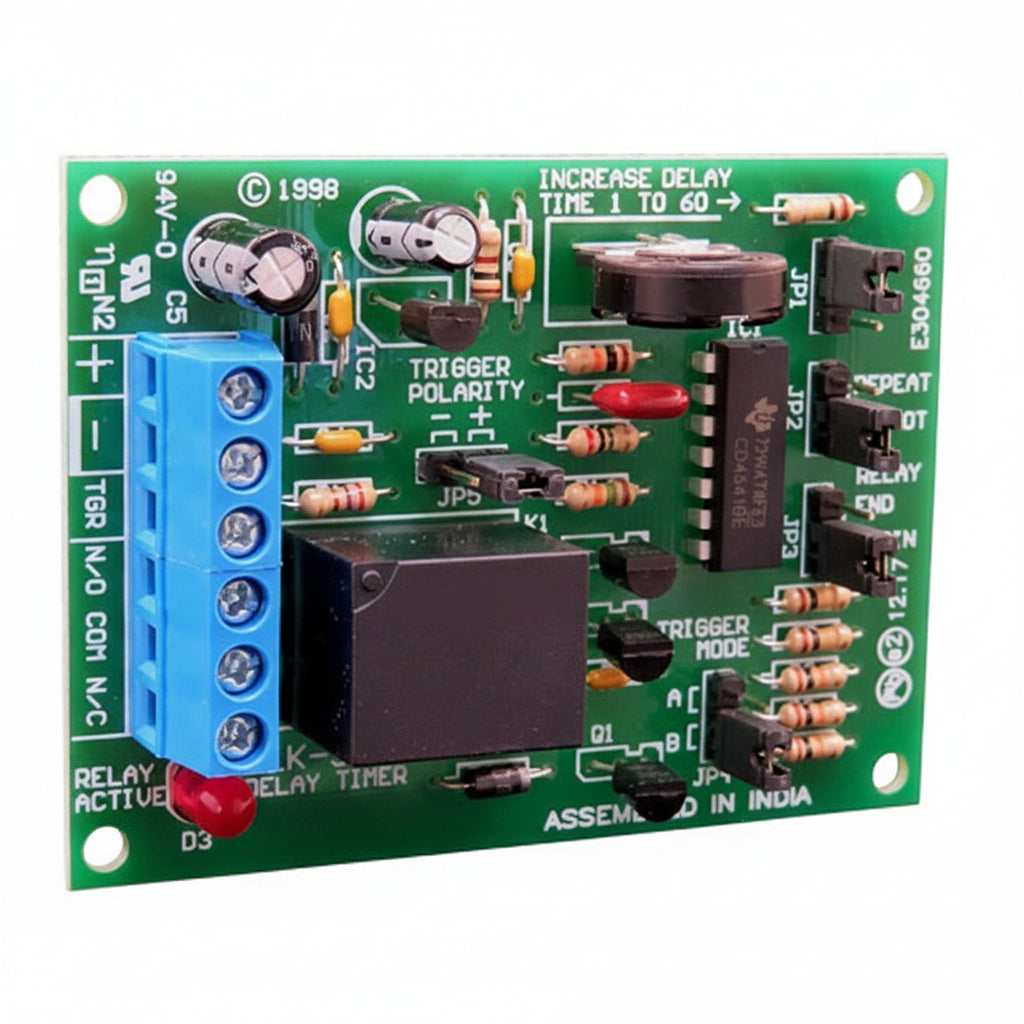

The ELK-960 from ELK is a relay module with an adjustable timer, built for general-purpose use in intrusion and other low-voltage systems. It switches an SPDT (Form "C") relay on a delay you set, and it can be triggered by a low current input with either positive or negative logic. The selectable initial relay state and the One-Shot or Repeat modes make it a flexible fit for installers who need a simple, dependable timing function.

Key features

• Runs on 12 to 24VDC, so it fits common low-voltage power supplies.
• The time delay is adjustable to suit the job.
• The SPDT (Form "C") relay gives you both normally open and normally closed switching options.
• The trigger input is low current, and you can select a positive or negative trigger.
• You can choose the initial relay state, On or Off, and run in One-Shot or Repeat mode.
• An LED shows the state of the relay.

Specifications

Model: ELK-960

Brand: ELK

Product name: Relay Module with Timer

Product type: Relay

Minimum operating voltage: 12V

Maximum operating voltage: 24V

Width: 2.20″

Height: 3.00″

Application/usage: General purpose

Sector: Intrusion

Installation type: Residential

Environmental certification: RoHS

Environmentally friendly: Yes

Country of origin: US

Installation notes

Confirm the supply voltage is within the module's DC range before powering up, and check polarity on the power and trigger connections. Set the trigger polarity, initial relay state and operating mode first, then use the LED to confirm the relay behaves as expected before closing up the enclosure.
