ELK-120 4-Channel Recordable Voice and Siren Driver

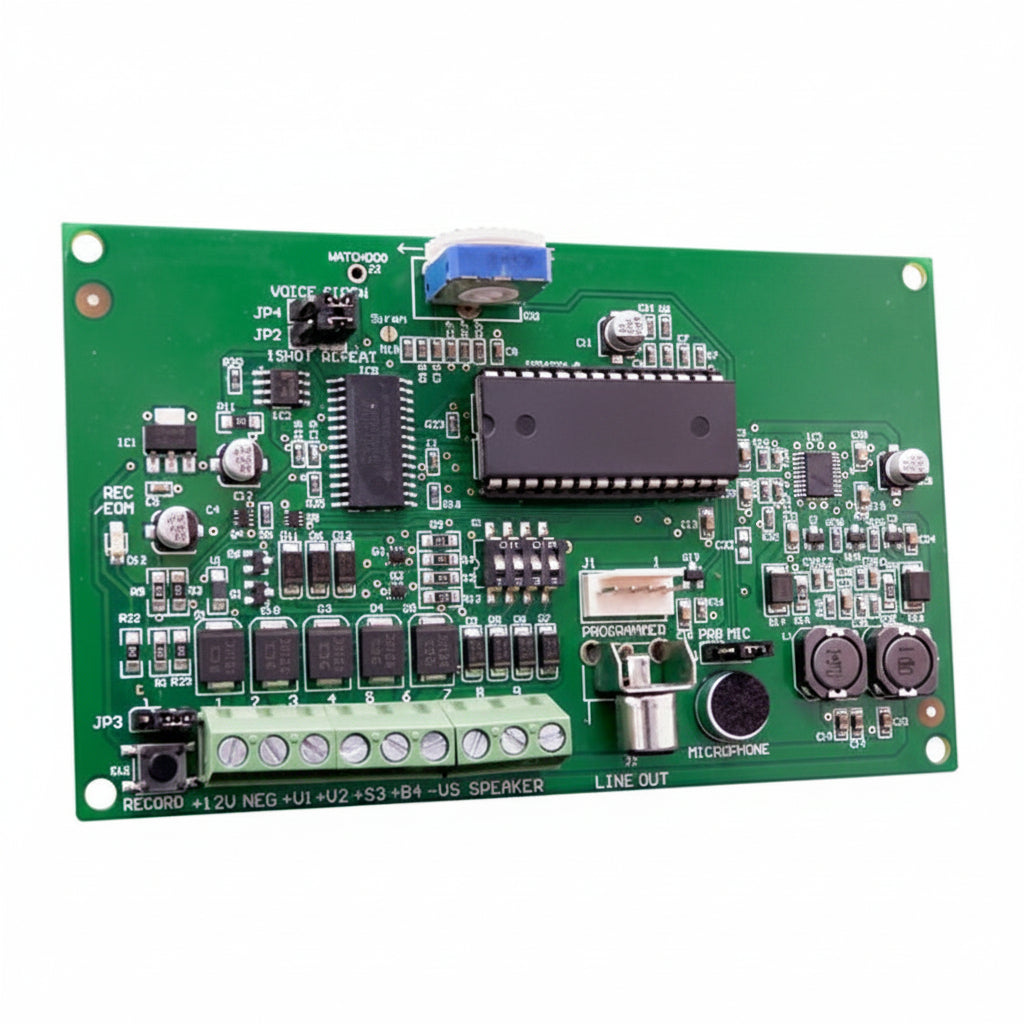

The ELK-120 from ELK is a recordable voice and siren driver module that plays back up to four messages or sounds through its built-in amplifier. It suits installers who need a compact unit to deliver spoken announcements or alarm tones in a residential, indoor setup. Its mix of voice recording through an on-board microphone and preset siren sounds, together with line level and speaker outputs, gives it flexibility in how it is wired.

Key features

• Stores up to 4 messages, or a mix of 2 voice and 2 siren channels.
• Records voice messages directly through the on-board microphone.
• Includes a 24W audio amplifier with volume control.
• Plays back in one shot or repeat mode.
• Offers both line level and speaker outputs.
• Includes Classic Yelp Siren, Temporal Coded Horn and Steady Industrial Horn sounds, and accepts momentary or maintained "+" triggering.

Specifications

Brand: ELK

Model: ELK120

Product Model: 120

Product Type: Recordable Voice/Siren Module

Color: Green

Height: 3.00″

Width: 5.00″

Depth: 1.30″

Indoor/Outdoor: Indoor

Installation Type: Residential

Country of Origin: US

Installation notes

Mount the module indoors where you can reach it to record and test messages, and keep it close to the speaker or line level destination to keep wiring runs short. After wiring the trigger input, play each channel back and set the volume before leaving the site.
