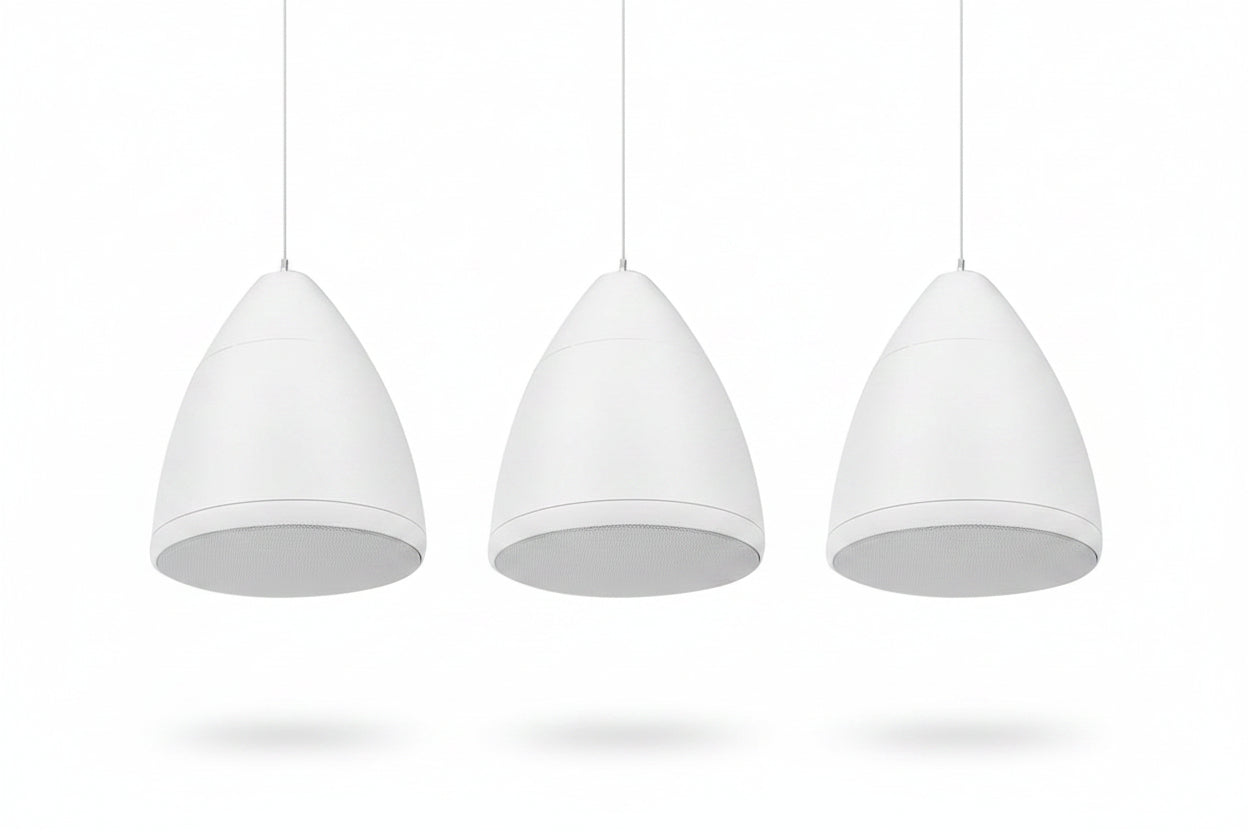

Episode ECS-800-PND4-WHT 800 Commercial SerieECS-800-PND4-WHT 800 Commercial Series 70V Pendant Speaker with 4" Woofer and Gripple Kit, Whites 70V Pendant Speaker with 4" Woofer and Gripple Kit, White

The Episode ECS-800-PND4-WHT is a white 70V pendant speaker from the 800 Commercial Series, built around a 4″ woofer and supplied with a Gripple kit. It handles background and foreground audio in commercial spaces, and the listing names corporate buildings as its application. Installers will like the tool-less tap settings, the 70V/100V design with an 8-ohm bypass, and the magnetic cap that keeps the top of the speaker clean.

Key features

• Tap settings change without tools, which speeds up commissioning.
• The 70V/100V design includes an 8-ohm bypass for flexibility in how it is wired.
• The UL listed design allows for flexible installation.
• A magnetic cap on top of the speaker gives a clean finished install.
• The tweeter is a silk dome with a neodymium magnet.

Specifications

Brand: Episode

Model: ECS-800-PND4-WHT

Product series: Commercial

Product type: Speaker

Color: White

Size: 4″

Height: 9.10″

Weight: 4.20 lb

Sensitivity: 84dB

Environmental certification: UL 1480

Application: Corporate building

Installation notes

Plan the drop length and hanging points before you pull cable, and make sure the structure above can carry the speaker and its suspension. Set the tap on the transformer to match your line voltage and power budget before the speaker is hung, then confirm the setting during commissioning.
