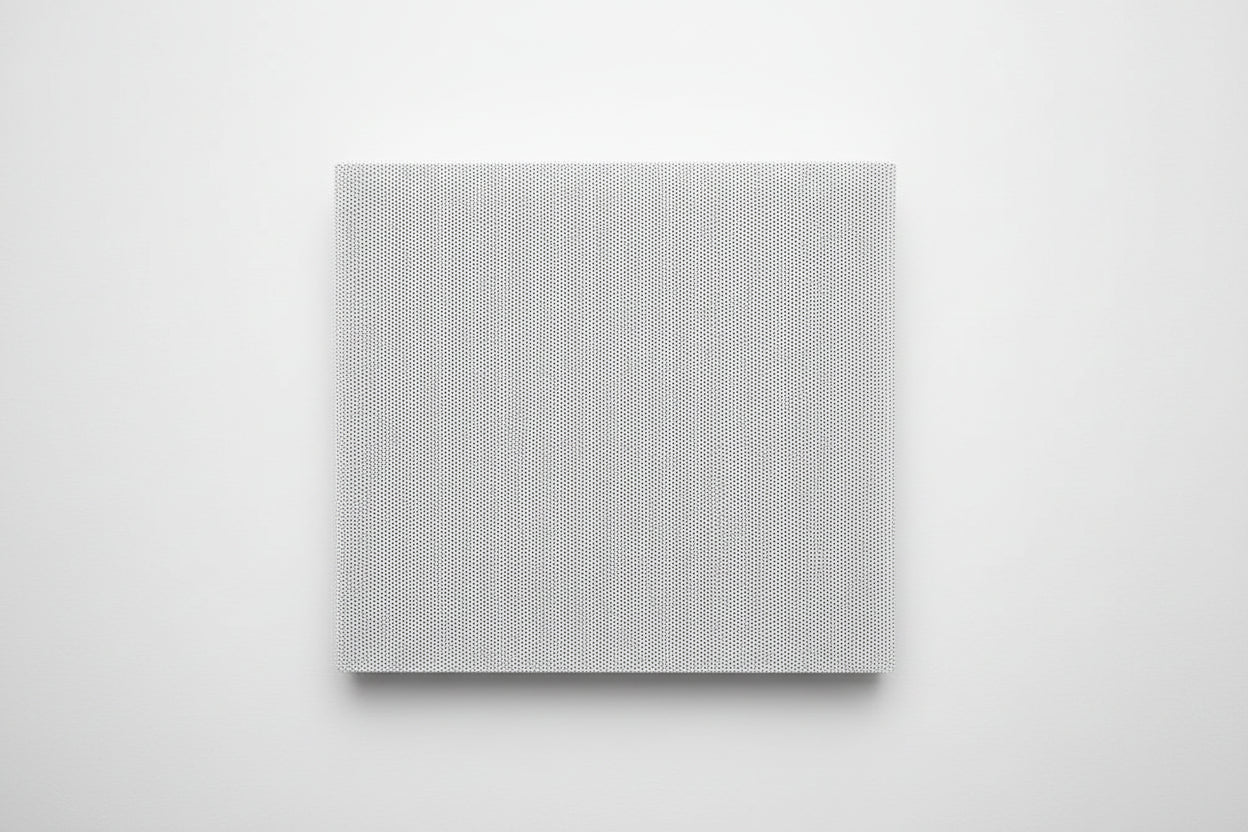

Episode ECS-400-70V-2x2-TR 400 Commercial Series 70V 2x2 Tile Speaker with 6.5" Woofer, White

The Episode ECS-400-70V-2x2-TR is a 70V commercial tile speaker with a 6.5″ woofer, sized to replace a standard 2'x2' ceiling tile. It suits installers outfitting offices, retail spaces and other commercial rooms that need distributed background audio from a 70V line. The white two-way design includes a rotary tap switch and carries UL listing and plenum rating, and it is designed to be lighter than a typical tile speaker.

Key features

• The 2'x2' footprint lets it take the place of a ceiling tile.
• It is compatible with 3/8″ conduit.
• A rotary tap switch makes power tap changes easy, with settings from 20W down to 1.25W.
• The listing and rating include UL and plenum.
• The two-way design pairs a 6.5″ woofer with a higher-frequency driver.

Specifications

Brand: Episode

Model: ECS-400-70V-2x2-TR

Product series: Commercial

Color: White

Height: 23.80″

Width: 23.80″

Depth: 3.43″

Weight: 9.00 lb

Sensitivity: 91dB

Frequency response: 60Hz to 20kHz

Environmental certification: UL-1480, UL-2043

Installation notes

Set the rotary tap switch to the wattage that suits the room before closing up the ceiling, and keep the total of all tap settings on a 70V line within the amplifier's rated output. Allow for the 3.43″ depth above the tile grid when planning placement, and run cable through conduit where the job calls for it.
