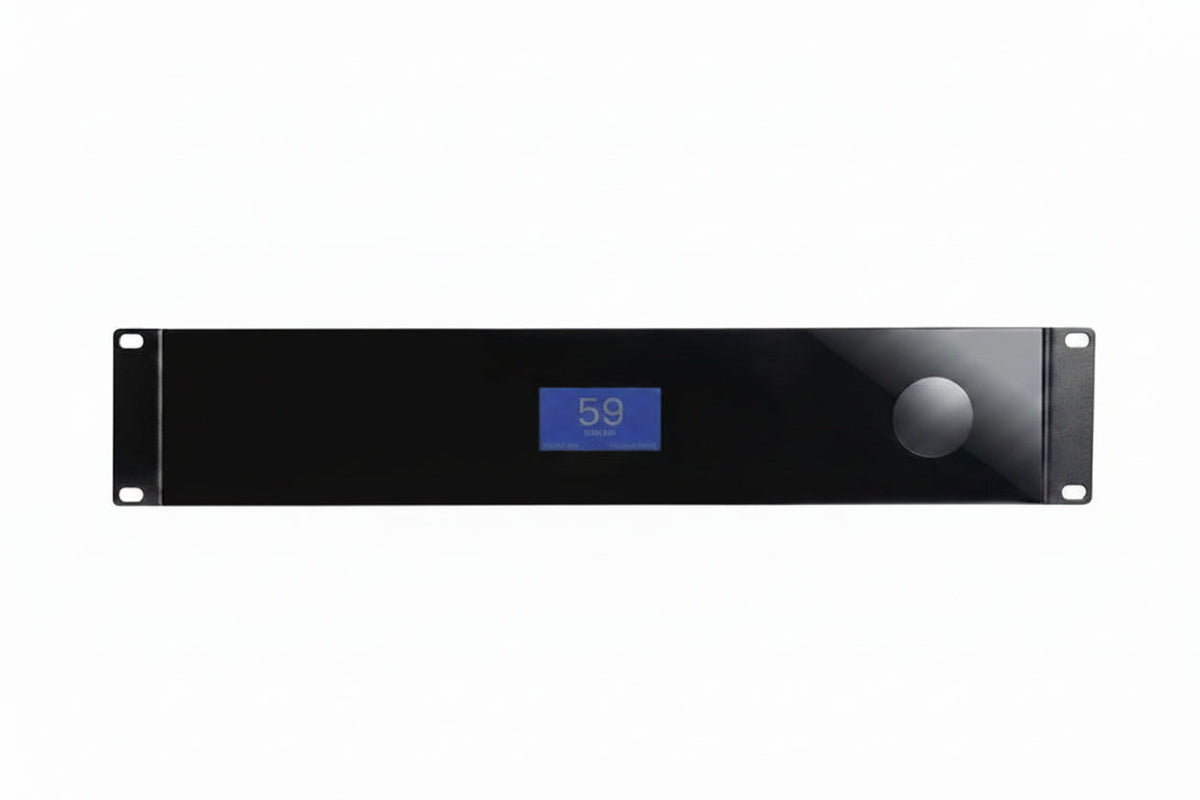

Episode EA-HYB-AMP-2D-2400 2-Channel Hybrid Digital Amplifier with IP Control, 2400W

The Episode EA-HYB-AMP-2D-2400 is a 2-channel hybrid digital amplifier rated at 2400W, built to drive both 70V and 8-ohm audio systems from one rack-mounted unit. It suits installers running large commercial or landscape audio jobs, with a 2RU chassis and a layout designed for better airflow in the rack. Its IP control, OvrC remote management and pre-built control system drivers make it easy to commission and look after once it is installed.

Key features

• Supports 70V and 8-ohm hybrid audio systems, with balanced, unbalanced analog and digital inputs plus loop outs.
• Offers two configurable output channels with a 2-ohm minimum load.
• Includes pre-loaded DSP settings, with an expanded limiter and high tilt/shelf EQ.
• Lets you adjust input gain for each source from the on-unit interface or the WebUI.
• Works with Control4 and other control systems through pre-built drivers, and supports remote firmware updates and troubleshooting through OvrC.
• Is optimized for landscape audio and works with Episode Surroundscape speakers.

Specifications

Brand: Episode

Model: EA-HYB-AMP-2D-2400

Product Type: Hybrid Amplifier

Power Output: 2400W

Number of Channels: 2

Frequency Response: 20Hz to 20kHz

Input Voltage: 100-240V AC

Circuit Requirements: North America: 20-Amp (110 - 120V / 60Hz)

Rack Height: 2U

Color: Black

Width: 17.00″

Height: 3.50″

Depth: 16.50″

Weight: 16.20 lb

Installation notes

Allow for the 16.50″ depth and leave clear space around the unit so the airflow design can do its job, and support the weight properly in the rack. Put the amplifier on a dedicated 20-amp circuit, and set each source's input gain during commissioning before you bring up the outputs.
