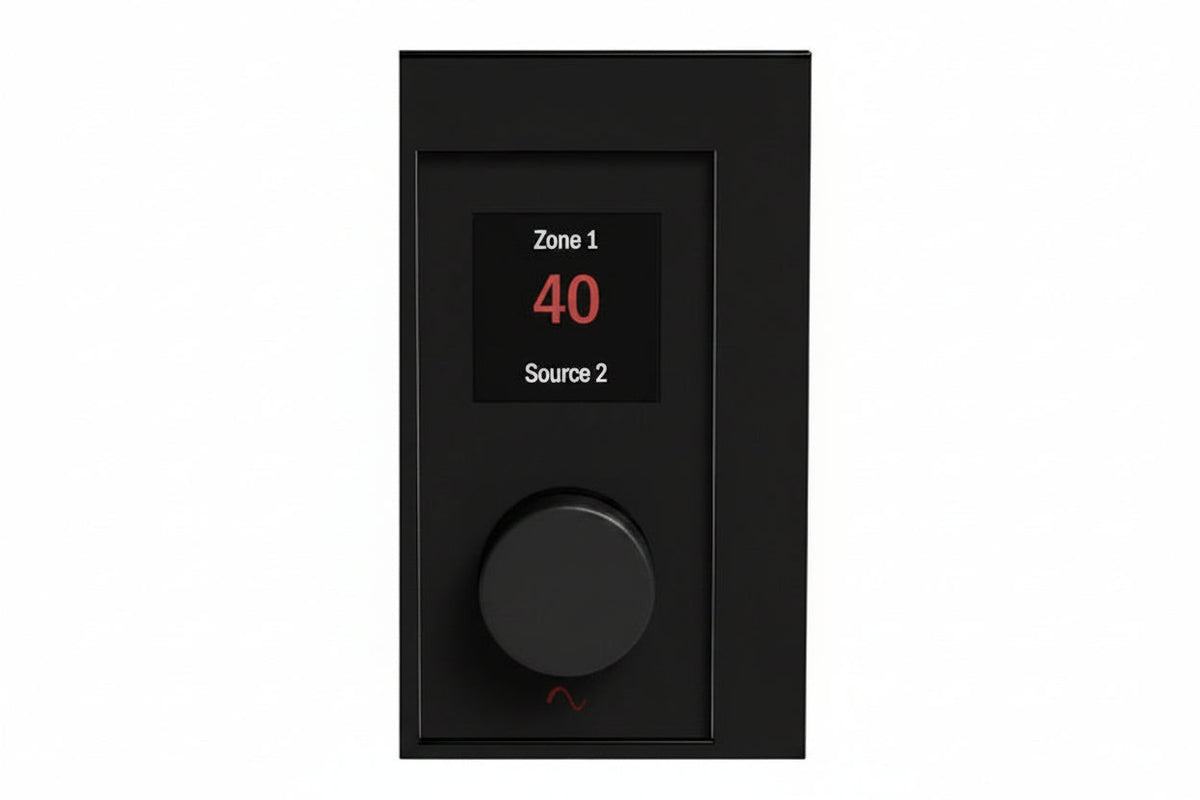

EA-COM-WP-ZONE-BL Zone / Source Controller Wall Plate for Episode Business Music DSPs

The Episode EA-COM-WP-ZONE-BL is a black metal zone and source controller wall plate for Episode Business Music DSPs. It lets staff pick any zone or source from any zone controller on the network, and it suits installers outfitting corporate buildings and other commercial spaces. Its IP54 rating, single-cable PoE connection and high-resolution color display make it a practical choice for demanding indoor areas.

Key features

• IP54 rating covers indoor commercial spaces, including kitchens and indoor pools.
• The high-resolution color display offers light and dark modes for easy navigation.
• A single CAT5e/6 cable carries both PoE power and control.
• Any zone or source can be controlled from any zone controller across the network.
• A patented installation system helps align the plate with the junction box, and the scratch-resistant finish keeps a professional look.

Specifications

Brand: Episode

Model: EA-COM-WP-ZONE-BL

Product Type: Controller Wallplate

Product Line: EBMS

Product Series: Episode Business Music Solution

Color: Black

Material: Metal

Dimensions: 4″ x 2.125″ x 2.125″

Display Screen Type: LED (Light Emitting Diode)

Operating Temperature: 14-122°F

Storage Temperature: -22-158°F

Operating Humidity: 20-90% (Non-condensing)

OvrC Enabled: Yes

Application/Usage: Corporate Building

Additional Information: IEC 61000-4-2 Level 2 Contact

Installation notes

Run a single CAT5e/6 cable to the junction box location and confirm the PoE source is available before mounting. The package includes a single-gang gloss faceplate; if you need a 2-Gang or 3-Gang opening, order that faceplate separately.
