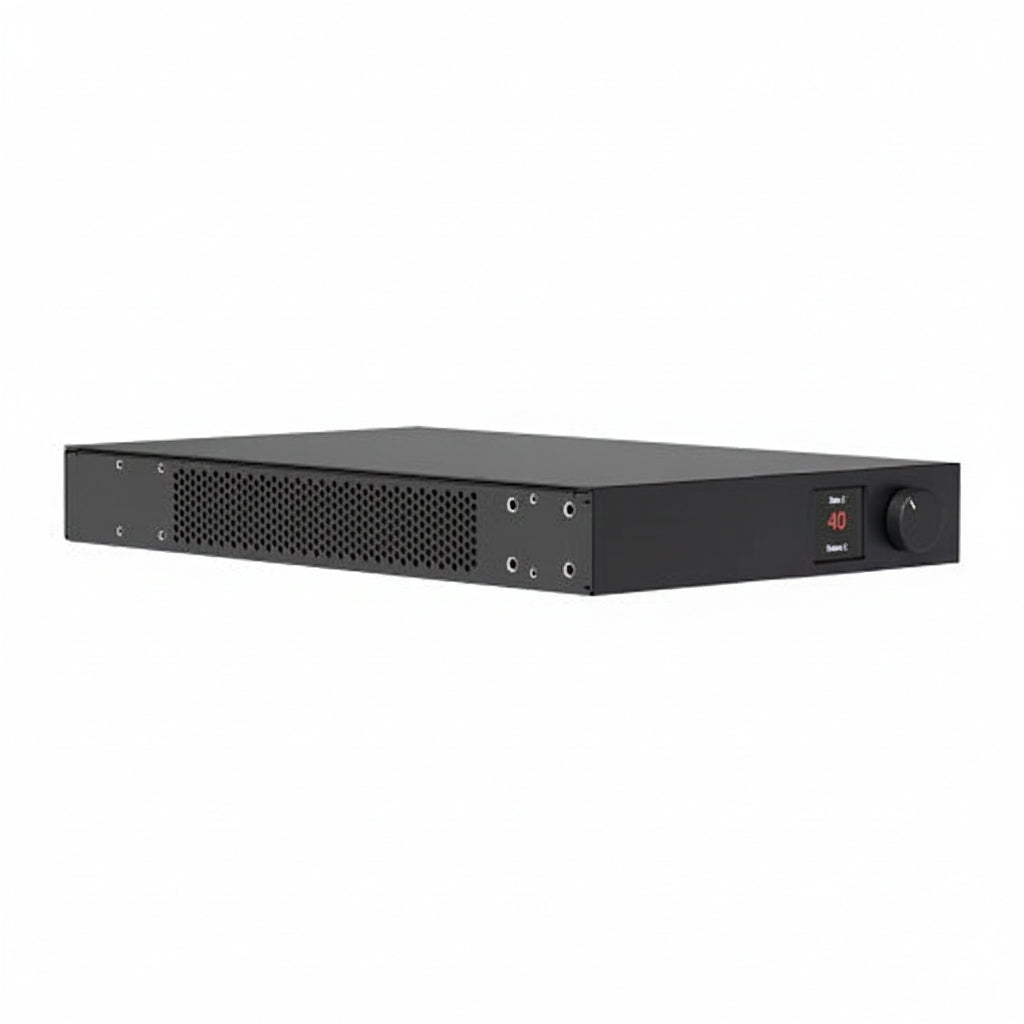

Episode EA-COM-MXAMP-350 Business Music 2x350 MixAmp with Selectable Output, 70-100V, 8-4 Ohms

The Episode EA-COM-MXAMP-350 is a two-channel business music MixAmp that combines a source mixer, DSP and power amplifier in one unit. It routes up to 16 sources to 8 zones and drives commercial speaker lines, with selectable 70V, 100V, 8-ohm and 4-ohm outputs. It suits corporate buildings and similar commercial installs, and the OvrC support and front panel color display make it easier to set up and monitor.

Key features

• Output can be set to 70V, 100V, 8-ohm or 4-ohm, so one amp fits different speaker layouts.
• It accepts up to 16 sources, including mic, line, balanced, unbalanced and MoIP, and sends them to 8 zones with built-in matrixing.
• Direct drive amplification delivers 160W per channel.
• The DSP provides input and output EQ, compression, gating, ducking and de-essing.
• Priority inputs with configurable ducking can automatically play priority sources, and a remote 2-pin contact closure can trigger messages, presets, mute and source play.
• OvrC support allows remote monitoring, configuration and troubleshooting.

Specifications

Brand: Episode

Model: EA-COM-MXAMP-350

Product type: MixAmp

Product line: EBMS

Product series: Episode Business Music Solution

Number of channels: 2

Maximum frequency response: 20kHz

Application/usage: Corporate Building

Compatibility: Control4

Certifications & standards: CE

Dimensions: 9.5″ x 1.75′ x 14″

Weight: 6.00lb

Operating temperature: 14-122°F

Storage temperature: -22-158°F

Operating humidity: 20-90% (Non-condensing)

Installation notes

Set the output mode to match the speaker line or impedance before connecting speakers, and confirm total speaker load is within what the amp can drive. Leave space for airflow and keep the unit within its listed operating temperature and humidity range.
