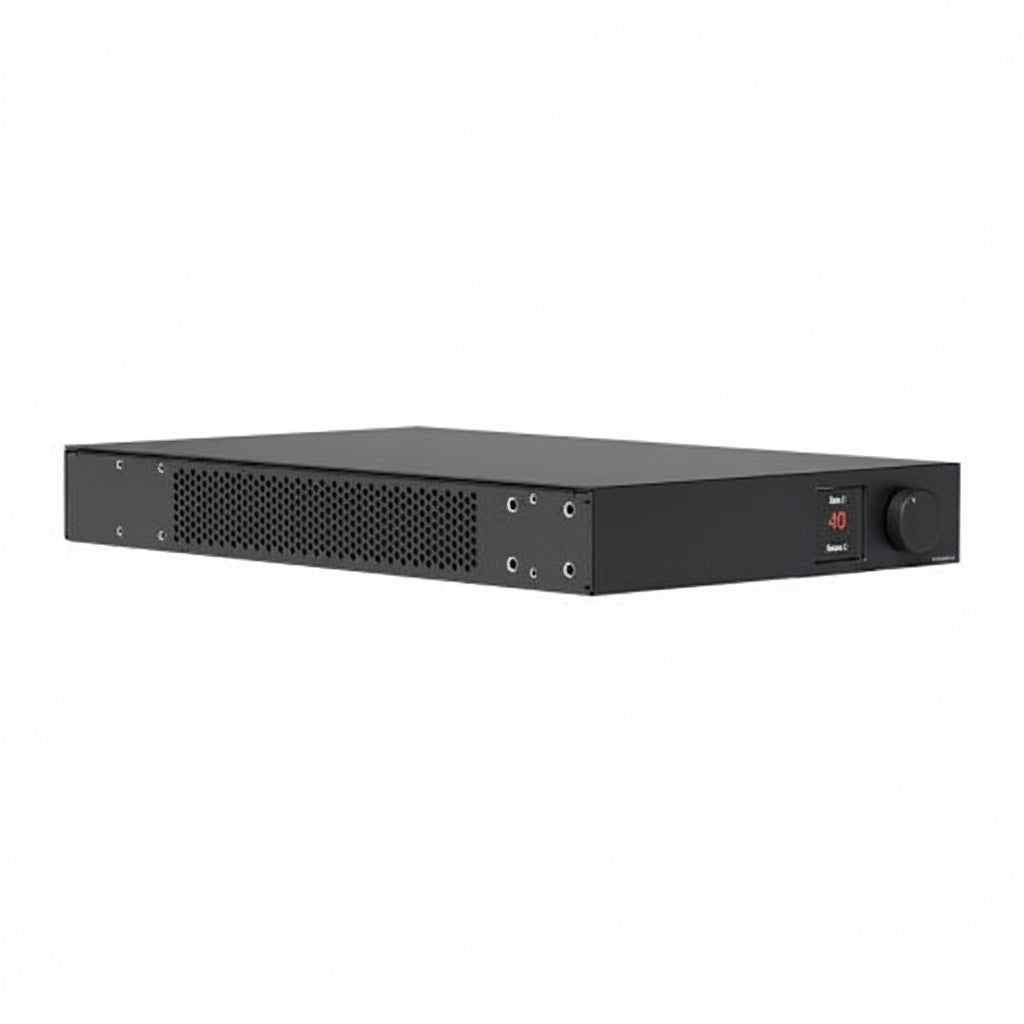

Episode EA-COM-MXAMP-160 Business Music 2x160 MixAmp with Selectable Output, 70-100V, 8-4 Ohms

The Episode EA-COM-MXAMP-160 is a two-channel business music mixer amplifier that combines source mixing, DSP and 160W-per-channel amplification in one unit. It suits corporate buildings and similar commercial spaces where several sources need to feed multiple zones, with output options for both constant-voltage and low-impedance speakers. The selectable 70V/100V/8-ohm/4-ohm outputs and OvrC remote management are what set it apart.

Key features

• Output can be set to 70V, 100V, 8-ohm or 4-ohm, so it fits different speaker layouts.
• It handles up to 16 sources across 8 zones, including mic, line, balanced, unbalanced and MoIP inputs.
• Built-in DSP covers input and output EQ plus microphone processing such as ducking, compression and gating.
• Audio matrixing lets you route sources to zones as needed, and priority inputs can duck other audio automatically.
• A 2-pin contact closure input can trigger audio messages or scene presets remotely.
• OvrC support allows remote monitoring, configuration and troubleshooting.

Specifications

Brand: Episode

Model: EA-COM-MXAMP-160

Product Type: MixAmp

Product Line: EBMS

Product Series: Episode Business Music Solution

Number of Channels: 2

Output Power: 160W per channel

Maximum Frequency Response: 20kHz

OvrC Enabled: Yes

Compatibility: Control4

Application/Usage: Corporate Building

Certifications & Standards: CE

Operating Temperature: 14-122°F

Storage Temperature: -22-158°F

Operating Humidity: 20-90% (non-condensing)

Dimensions: 9.5″ x 1.75″ x 14″

Weight: 6.00 lb

Installation notes

Match the output mode to your speaker line before connecting, and confirm total speaker load stays within what each channel can drive. Leave room around the unit for airflow, keep it within the listed operating temperature and humidity range, and run mic and line inputs away from speaker wiring to limit noise.
