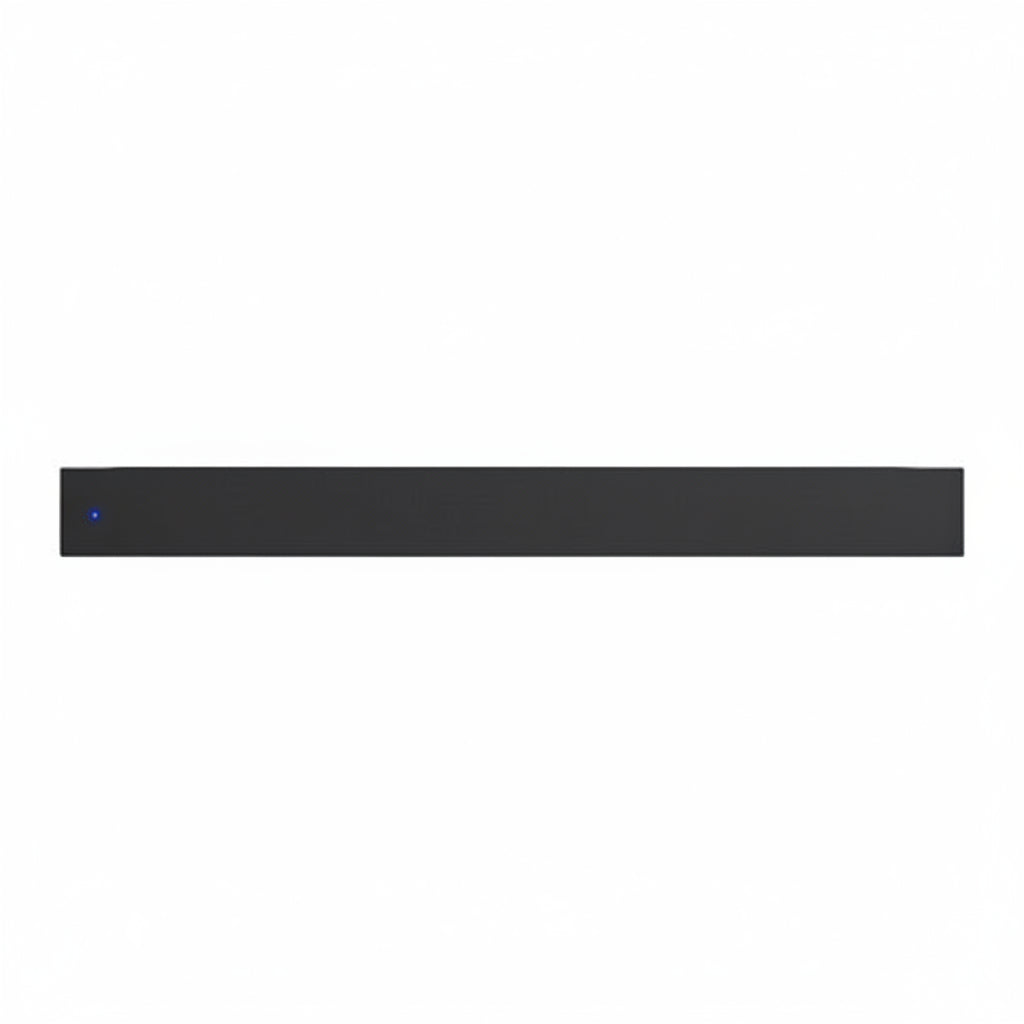

Episode EA-COM-DSP-8-4 Business Music 8x4 Digital Signal Processor

The Episode EA-COM-DSP-8-4 Business Music 8x4 Digital Signal Processor is a rack-width DSP built for commercial audio and paging systems. It handles up to 16 sources and 8 zones, including microphones and unbalanced, balanced, or MoIP inputs, so it suits corporate buildings and similar spaces that need multi-zone music and announcements. MoIP networking, configurable ducking and OvrC remote management stand out.

Key features

• Input and output EQ plus microphone processing allow precise tuning of the system.
• MoIP support lets the unit receive and transmit audio sources over the network.
• Configurable ducking gives priority inputs control for paging, playback and emergency communications.
• A 2-pin contact closure can play built-in or user-created messages, trigger a preset, mute all zones, and more.
• Zone controller wall plates provide source and zone control from one controller, and multiple controllers can be connected to the network to control any combination of DSPs.
• OvrC lets you remotely monitor, configure and troubleshoot the audio system.

Specifications

Brand: Episode

Model: EA-COM-DSP-8-4

Product Type: DSP

Product Line: EBMS

Product Series: Episode Business Music Solution

Application/Usage: Corporate Building

Maximum Frequency Response: 20kHz

OvrC Enabled: Yes

Certifications & Standards: CE

Operating Temperature: 14-122°F

Operating Humidity: 20-90% (Non-condensing)

Dimensions: 19″ x 1.75″ x 14″

Weight: 7.00 lb

Additional Information: Level 3 Air-Gap; Fully Matrixed plus Multisource Mixing; 20 Bands; -55db Minimum at full audio range

Installation notes

Allow room for rear cabling and airflow, and keep the unit within its stated temperature and humidity range in a dry location. Plan the network connection and source routing before commissioning, then use OvrC or the configuration software to set up zones, ducking and contact-closure actions.
