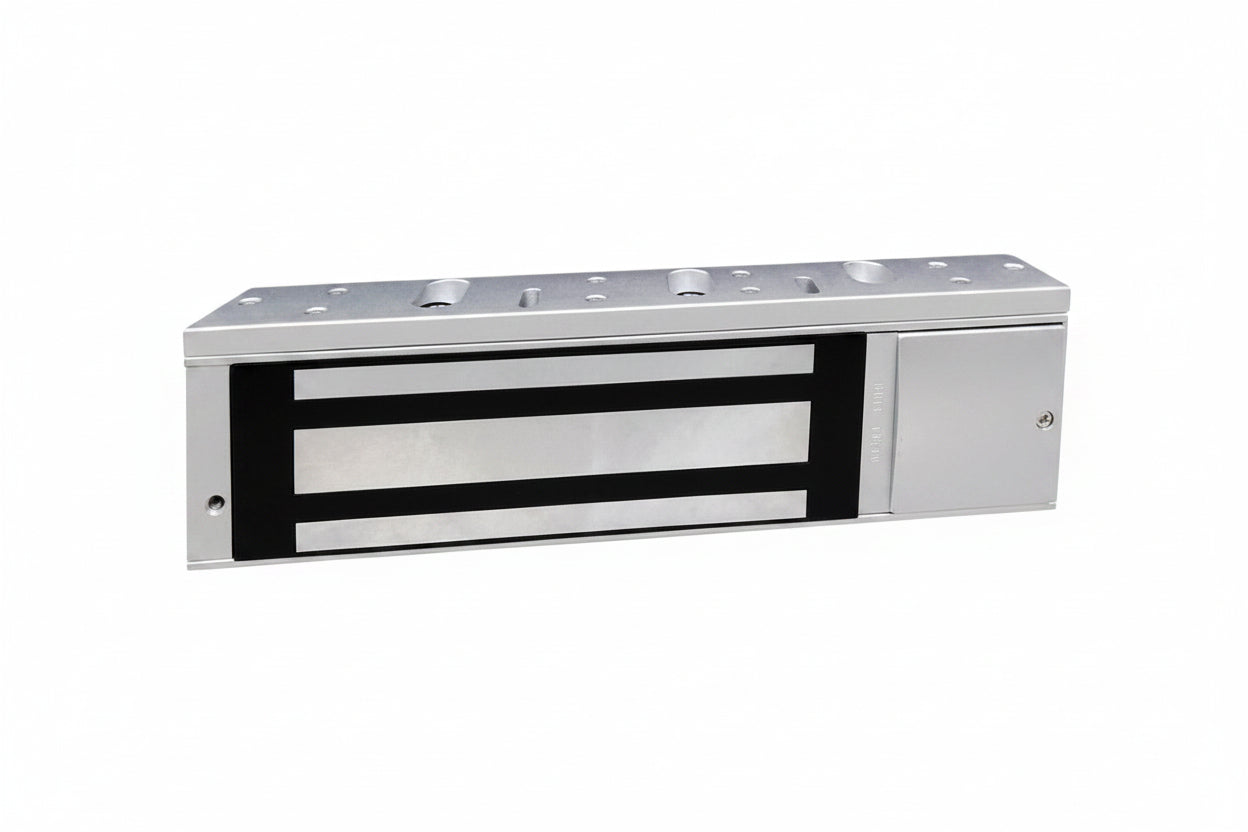

Camden CX-91S-12 Surface Single Door Magnetic Lock, 1200 lbs

The Camden CX-91S-12 is a surface-mount magnetic lock for a single door, rated for 1,200 lb (544 kg) of holding force. It suits installers and facility owners who need a vandal-resistant lock for access and egress systems on hinged doors. It runs on field-selectable 12/24 VDC and is UL and CUL listed.

Key features

• Holds with 1,200 lb (544 kg) of force on a single door.
• UL and CUL listed for single-door use.
• Weather- and vandal-resistant construction, proven over thousands of installations.
• Input voltage is selectable in the field, 12 or 24 VDC.
• Surface mounting with an anodized aluminum finish.
• Offers an optional built-in adjustable timer and an optional bond sensor to monitor that the door is secure.

Specifications

Brand: Camden

Model: CX-91S-12

Product line: eXACT

Product series: CX-90/91

Product type: Single Door Magnetic Locks

Holding force: 1,200 lb (544 kg)

Input voltage: 12/24 VDC, field selectable

Mounting: Surface

Door supported: Hinged

Compatibility: Access/Egress Systems

Color: Silver

Finish: Anodized

Width: 10.40″

Depth: 1.56″

Country of origin: CA

Installation notes

Set the 12 or 24 VDC selection to match your power supply before you energize the lock. Line up the magnet and its mating plate carefully on the door and frame so they meet flat, since poor alignment reduces how well the door holds.
