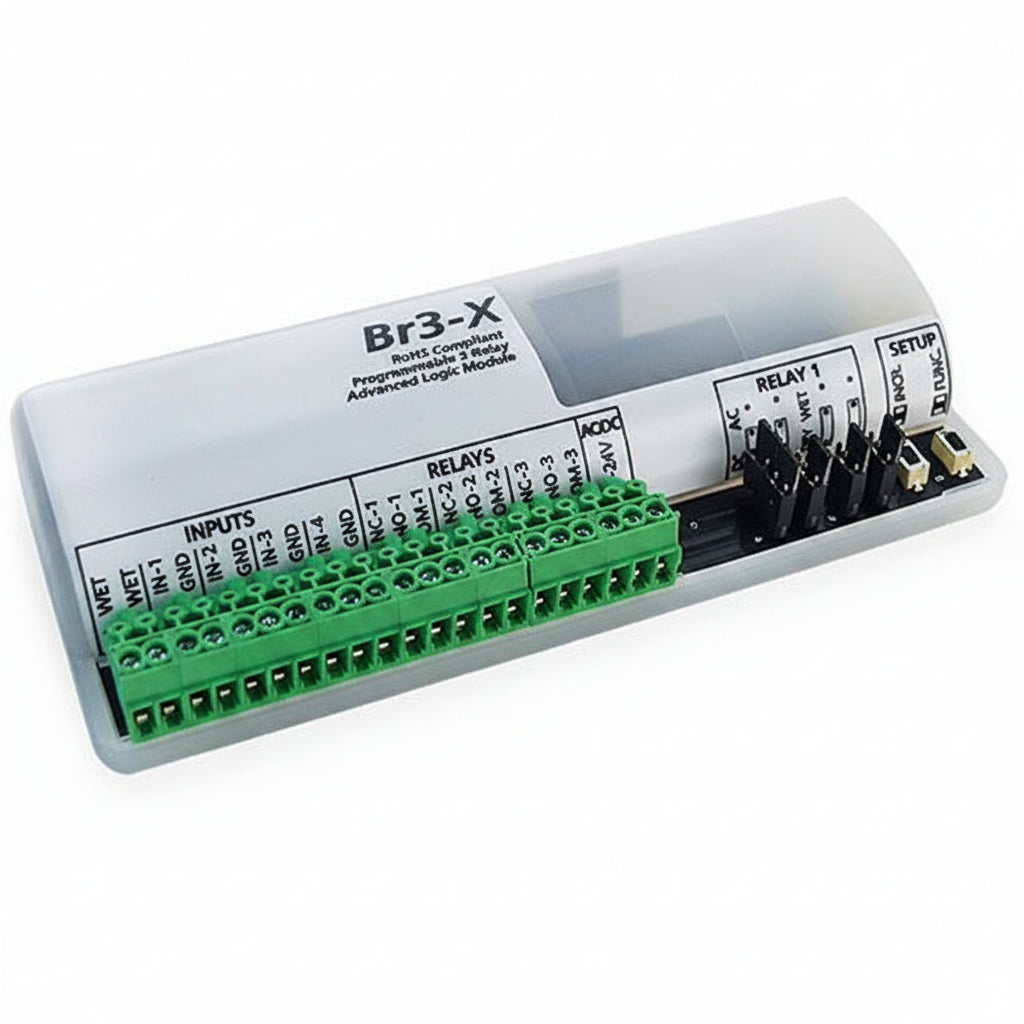

BEA 10BR3-X Programmable 3-Relay Logic Module

The BEA 10BR3-X is a programmable 3-relay logic module that works as a replacement logic board for access control applications. It suits installers and integrators who need both simple and advanced logic control from a single board. Its 13 programmable logic functions and two-button setup with a dual seven-segment display keep configuration straightforward.

Key features

• Offers 13 programmable logic functions for the BR3-X.
• Covers simple and advanced logic control in one module.
• Programs with two buttons, so no separate programming tool is described.
• Shows settings on a dual seven-segment display during setup.
• Functions include timer, ratchet/latching and inhibitor modes.
• Includes relay sequencer functions, such as 2-relay sequencer with inhibitor.

Specifications

Brand: BEA

Model: 10BR3-X

Product Type: Replacement Logic Board

Application/Usage: Access Control

Relays: 3

Programmable Logic Functions: 13

Country of Origin: US

Installation notes

Confirm the module is the right replacement for your existing board before removing anything, and power down the system before swapping it. After installation, step through the chosen logic function with the two-button interface and test each relay's behavior before leaving the site.
