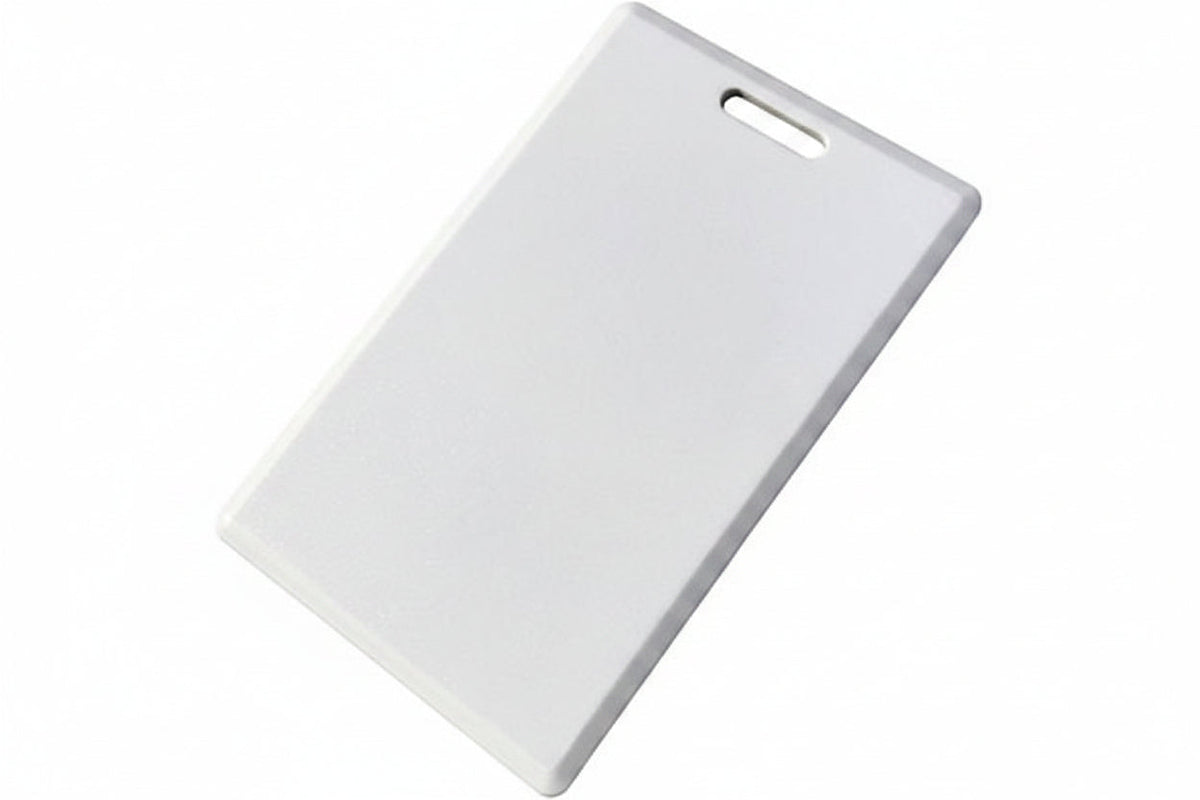

AWID CS-AWID-0-0 CS Clamshell Prox-Linc Proximity Card

The AWID CS-AWID-0-0 is a Prox-Linc clamshell proximity card, a white PVC ID card that works at 125 kHz for access control credentials. It is credit card size with beveled edges and arrives pre-punched in portrait orientation, so it suits businesses and installers who want to wear or clip a badge. It can carry your logo on the front and be programmed with a field-programmable Wiegand format.

Key features

• Credit card size with beveled edges.
• Accepts photo flap and self-adhesive badge overlays.
• Comes pre-punched in portrait orientation.
• Can be customized with your logo on the front.
• Prox-Linc cards and tags can be programmed with up to 72,058 trillion unique codes.
• Field-programmable Wiegand format with up to 56 user-definable bits, for security, compatibility and short lead times.

Specifications

Brand: AWID

Model: CS-AWID-0-0

Product Line: Prox-Linc

Product Type: ID Card

Color: White

Material: PVC

Operating Frequency: 125 kHz

Packaged Quantity: 100

Width: 2.20″

Height: 3.40″

Thickness: 0.07″

Depth: 0.80″

Country of Origin: US

Installation notes

Confirm the Wiegand format and code range you need before programming, and make sure your readers operate at 125 kHz. Test a sample card at each reader before issuing the full batch, and check that any photo flap or badge overlay fits the card before printing or applying it.
