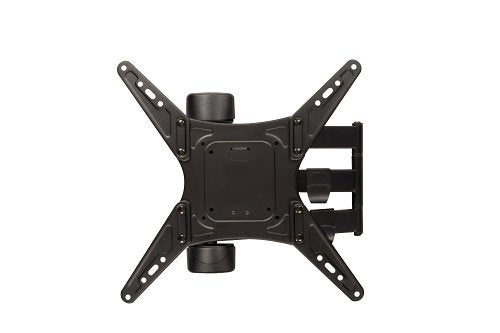

AVARRO NX-FMM3763 Full-Motion Medium Mount for 37"-63" Displays Up to 70 lb UL ULC

The AVARRO NX-FMM3763 is a full-motion wall mount that holds a 37″ to 63″ display on an extending arm. It suits installers, businesses and homeowners who want to angle a TV toward the seating area, then fold it back close to the wall when it's not in use. It carries displays up to 70 lb and has a low-profile design with cable management.

Key features

• Fits 37″ to 63″ TVs weighing up to 70 lb.
• Accepts VESA patterns from 100 x 100 up to 400 x 400 mm.
• Tilts, pans and swivels so you can aim the screen where it's needed.
• Extends 20.6″ from the wall in use and retracts to 2.0″ when not in use.
• Includes a complete hardware kit.

Specifications

Brand: AVARRO

Model: NX-FMM3763

Product type: Medium Full Motion Wall Mount

Color: Black

Compatible screen size: 37″ to 63″

Maximum load capacity: 70 lb

VESA compatible: Yes, 100 x 100 to 400 x 400 mm

Mount profile: Low profile

Features: Cable management

Height: 13.00″

Weight: 8.20 lb

Listings: UL, ULC

TAA compliant: No

Energy Star: No

Country of origin: CN

Package contents: Medium Full Motion Mount, Hardware Kit

Installation notes

Anchor the mount into solid framing or a wall surface suited to the load, and confirm the display's VESA pattern and weight before mounting. Allow clearance for the arm to extend and swivel, and route cables with the cable management so they don't bind as the arm moves.
