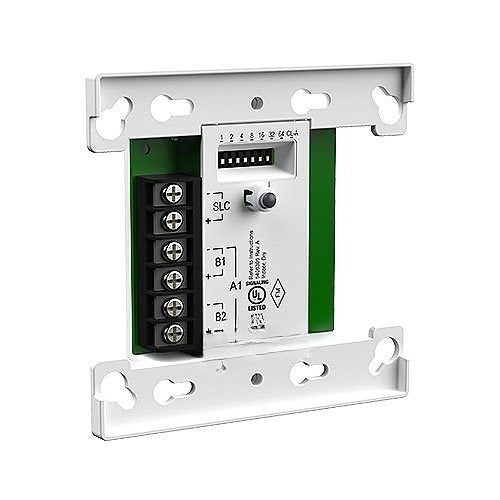

Addressable Dual Input Module for Fire Control Panels, 24V DC PAD100-DIM

The PAD100-DIM is an addressable dual input module designed for fire control panel systems. This compact module monitors two separate Class B circuits or one Class A circuit using a single SLC loop address, making it ideal for fire detection and monitoring applications where multiple sensors need to be supervised from one location.

Perfect for monitoring sprinkler waterflow switches and valve tamper detection when devices are situated in the same area, the PAD100-DIM mounts cleanly in standard 4-inch square or double-gang electrical boxes. The module features a red LED status indicator that flashes during normal polling and increases flash rate when an input is activated, providing clear visual feedback of module operation and alarm conditions.

Wiring terminals accept 22 to 12 AWG conductors and remain accessible even when the module is mounted in its box. Engineered for fire safety applications, the PAD100-DIM operates reliably across temperatures from 32°F to 120°F and carries a 5-year limited warranty. Input voltage is 24V DC.

• Monitors two Class B or one Class A circuit with a single SLC loop address for efficient fire panel integration
• Red LED status indicator flashes during normal operation and accelerates during alarm conditions for quick visual confirmation
• Mounts in standard 4-inch square or double-gang electrical boxes for flexible installation in existing infrastructure
• Accessible wiring terminals accept 22 to 12 AWG conductors, simplifying field installation and service
• Operates reliably across 32°F to 120°F temperature range with 5-year limited warranty
