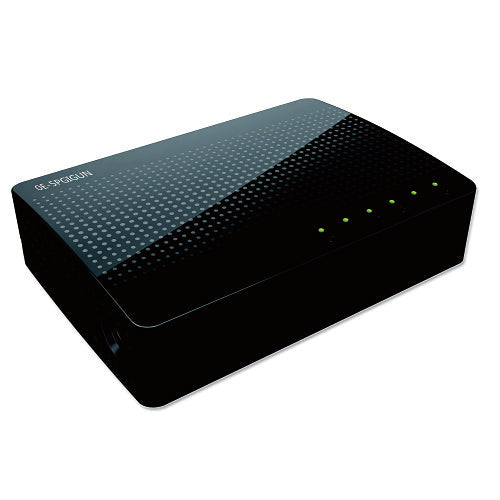

UltraTech 0E-5PGIGUN 5-Port Gigabit Unmanaged Ethernet Switch

The UltraTech 0E-5PGIGUN is a 5-port Gigabit unmanaged Ethernet switch that adds wired ports to an existing network and upgrades links to Gigabit speed. It is plug and play, so it suits home offices, small businesses and installers who need a simple wall-mount switch with no configuration. Its small footprint, 10Gbps switching capacity and NDAA and TAA compliance are what stand out.

Key features

• Provides five 10/100/1000Mbps ports for wired devices.
• Plug-and-play setup means no configuration is needed.
• Offers 10Gbps of switching capacity.
• Includes port status LED indicators.
• Designed for wall mounting and described as energy efficient.
• Complies with the 802.3, 802.3u and 802.3ab standards.

Specifications

Brand: UltraTech

Model: 0E-5PGIGUN

Product type: Ethernet Switch

Switch type: Unmanaged (not manageable)

Layer supported: 2

Total network ports: 5

Port speed: 10/100/1000Mbps

Network technology: 10/100/1000Base-T

Ethernet technology: 1 Gbps (Gigabit Ethernet)

Media type: Twisted pair

Switching capacity: 10Gbps

Transmission distance: 100m (328′)

Standards: 802.3 / 802.3u / 802.3ab

Power source: AC power

Power supply input: 100-240VAC

Mount type: Wall mount

Dimensions (L x W x H): 3.66″ x 2.66″ x 0.88″ (99 x 67.5 x 22.3mm)

Weight: 9.44oz

TAA compliant: Yes

NDAA compliant: Yes

RoHS: Compliant

Environmental certification (BPRN): BPR01322200

Country of origin: TW

Installation notes

Mount the switch on a wall near an AC outlet and keep cable runs within the 100m (328′) limit for twisted pair. Once powered, check the port LEDs to confirm each connected device has linked.
