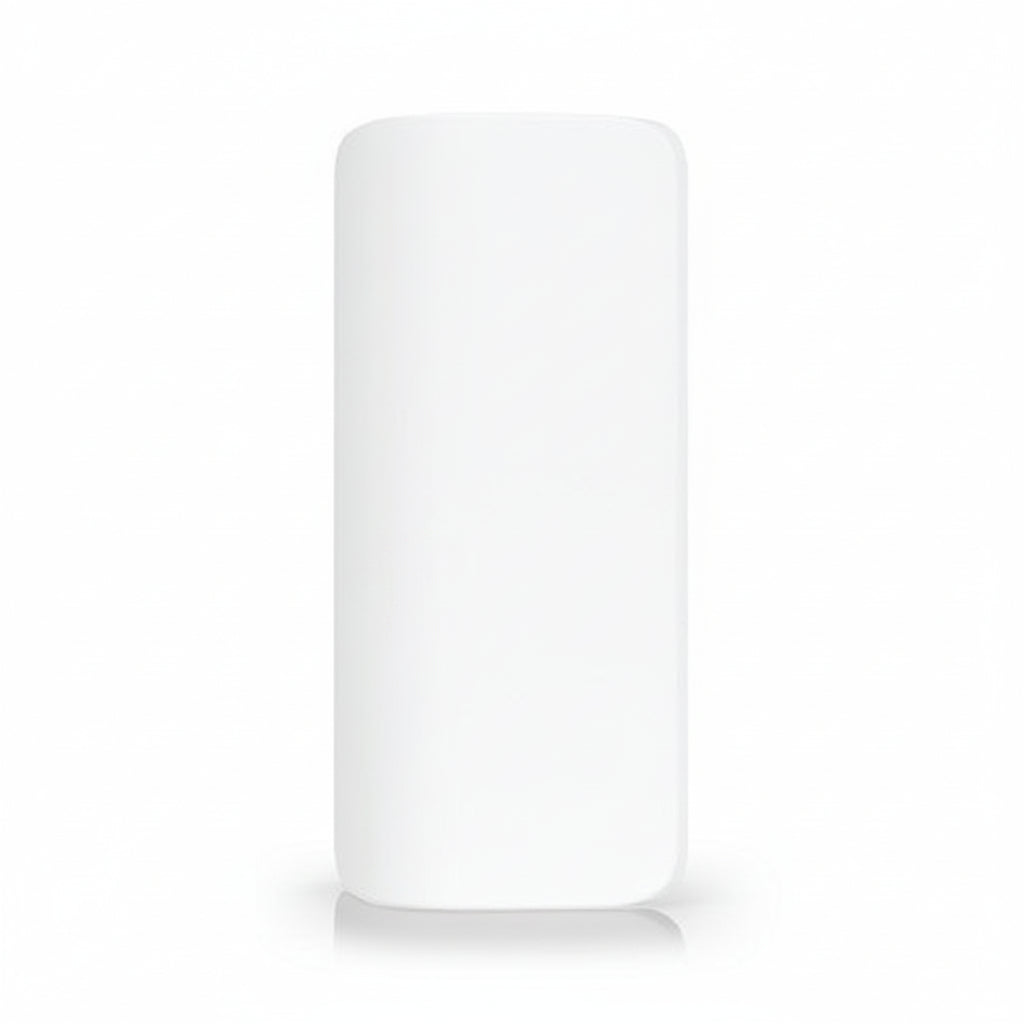

Ubiquiti WAVE-AP-MICRO-US Wave AP Micro Wide-Coverage 60 GHz PtMP Access Point

The Ubiquiti WAVE-AP-MICRO-US Wave AP Micro is an outdoor 60 GHz point-to-multipoint access point that serves as the hub for wireless links to remote stations. It covers a 90° sector with up to 5 Gbps of throughput and includes a 5 GHz weatherproof backup radio, so it suits installers building wireless distribution links in the UISP ecosystem. Integrated GPS and Bluetooth and a single 2.5 GbE WAN port keep the hardware simple.

Key features

• Delivers up to 5 Gbps of throughput, rated at 2.5 Gbps duplex.
• Covers a 90° sector for wide-area point-to-multipoint links.
• Includes a 5 GHz weatherproof backup radio with up to 800 Mbps of throughput.
• Connects through one 2.5 GbE WAN port.
• Has integrated GPS and Bluetooth.
• Requires firmware version 3.3.0 or later.

Specifications

Model: WAVE-AP-MICRO-US

Brand: Ubiquiti

Product Type: Outdoor Access Point

Product Line: UISP

Product Series: Wave 60 GHz

Max. Throughput: 5 Gbps (2.5 Gbps duplex)

Backup Radio Throughput: 800 Mbps (5 GHz)

Frequency Band: 5.00 GHz

Network Band: Single Band

Wireless LAN Standard: 802.11ax

Encryption Standard: WPA2-PSK

Ethernet Technology: 10 Gigabit Ethernet

Network (RJ-45) Ports: 1

Antenna Form Factor: Internal

Indoor/Outdoor: Outdoor

Form Factor: Pole Mount

Mount Type: Pole Mount

Power Consumption: 24.0 W

Width: 6.10″

Height: 11.20″

Depth: 41.66 cm

Weight: 2.90 lb

Environmental Certification: FCC

Energy Star: No

Environmentally Friendly: Yes

Packaged Quantity: 1

Installation notes

Mount the unit on a pole with a clear line of sight across the sector it needs to cover, and aim it before tightening the hardware. Make sure the power source can supply the 24 W draw, and update the firmware to version 3.3.0 or later during commissioning.
