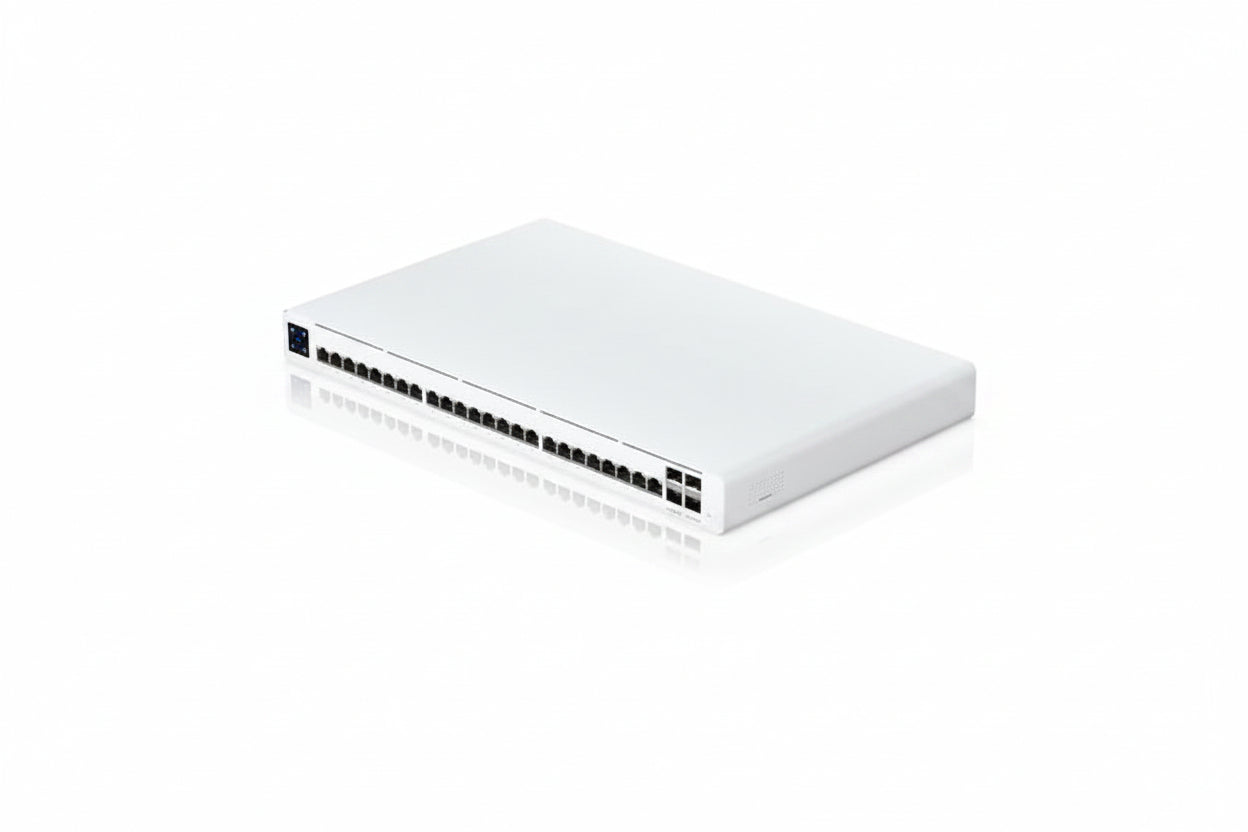

Ubiquiti UISP-S-PRO 24-Port UISP Switch Pro, 220W, PoE, White

The Ubiquiti UISP-S-PRO (UISP Switch Pro) is a 24-port, Layer 2 managed PoE switch built for ISP networks. It supplies 27V passive PoE to powered devices and gives installers four SFP+ uplink ports for fiber. It suits ISP and network installers who need a high PoE budget, local control and a touchscreen for on-site checks.

Key features

• Provides 24 GbE RJ45 ports, 16 of which supply 27V passive PoE.
• Offers 220W total PoE availability, with 15W per port on 2-pair and 30W per port on 4-pair.
• Includes port isolation, speed limiting and DHCP snooping.
• Has a 1.3″ color LCM touchscreen on the unit.
• Adds a Power TransPort input for DC redundancy.
• Can be managed standalone through the local web interface or through the UISP Application.

Specifications

Brand: Ubiquiti

Model: UISP-S-PRO

Product line: UISP

Product type: Switch

Layer supported: 2

Manageable: Yes

Total network ports: 24

SFP+ slots: 4

Ethernet technology: 10 Gigabit Ethernet

Media type supported: Optical fiber

PoE budget: 220W

Power source: AC power

Input voltage: 120V AC

Frequency: 60Hz

Color: White

Material: ABS

Width: 17.40″

Height: 1.70″

Depth: 10.50″

Energy Star: No

Environmental certification: IC

Packaged quantity: 1

Installation notes

Confirm that each connected device accepts 27V passive PoE before plugging it in, since passive PoE is not the same as standard PoE. Leave airflow around the switch, and use the extra DC input if you want power redundancy at the site.
