About the UF-SM-PATCH-APC-APC

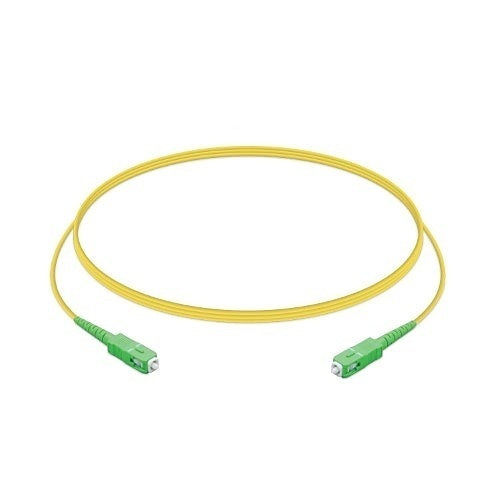

The Ubiquiti UF-SM-PATCH-APC-APC UFiber patch cord is a 1.5m single-mode fiber jumper with an SC/APC connector on each end. It is meant for linking network devices when you build out a GPON network, and it suits installers and businesses working in the UISP fiber line. The thin 2.0 mm plenum-rated jacket is what sets it apart.

Key features

  • Terminates in SC/APC connectors at both ends.
  • Uses SM G.657A1 fiber with a 9/125 µm core and cladding.
  • Simplex construction keeps it to a single fiber strand.
  • The 2.0 mm PVC jacket is ultra-thin.
  • Comes in a 1.5m length with a yellow jacket.

Specifications

Brand: Ubiquiti

Model: UF-SM-PATCH-APC-APC

Product Type: PatchCord Cable

Product Line: UISP

Product Series: Fiber

Connector Type: SC/APC

Connector on First End: SC

Connector on Second End: SC

Fiber Optic Mode: Single-mode

Core/Cladding Diameter: 9/125 µm

Cable Length: 1.50m

Color: Yellow

Jacket Material: PVC

Jacket Type: Plenum Duplex Zip

Cable Rating: Plenum

Features: Ultra-thin 2.0 mm jacket

Device Supported: Network Device

Installation notes

Match APC connectors to APC ports, since mixing them with other polish types can cause poor performance or damage the end faces. Clean the ferrules before mating and keep the bend radius gentle when routing the thin jacket.

Specifications

BrandUbiquiti
ModelUF-SM-PATCH-APC-APC
Product typeFiber Patch Cable

Specs are taken from the manufacturer listing. Need a detail that isn't here? Ask us.
