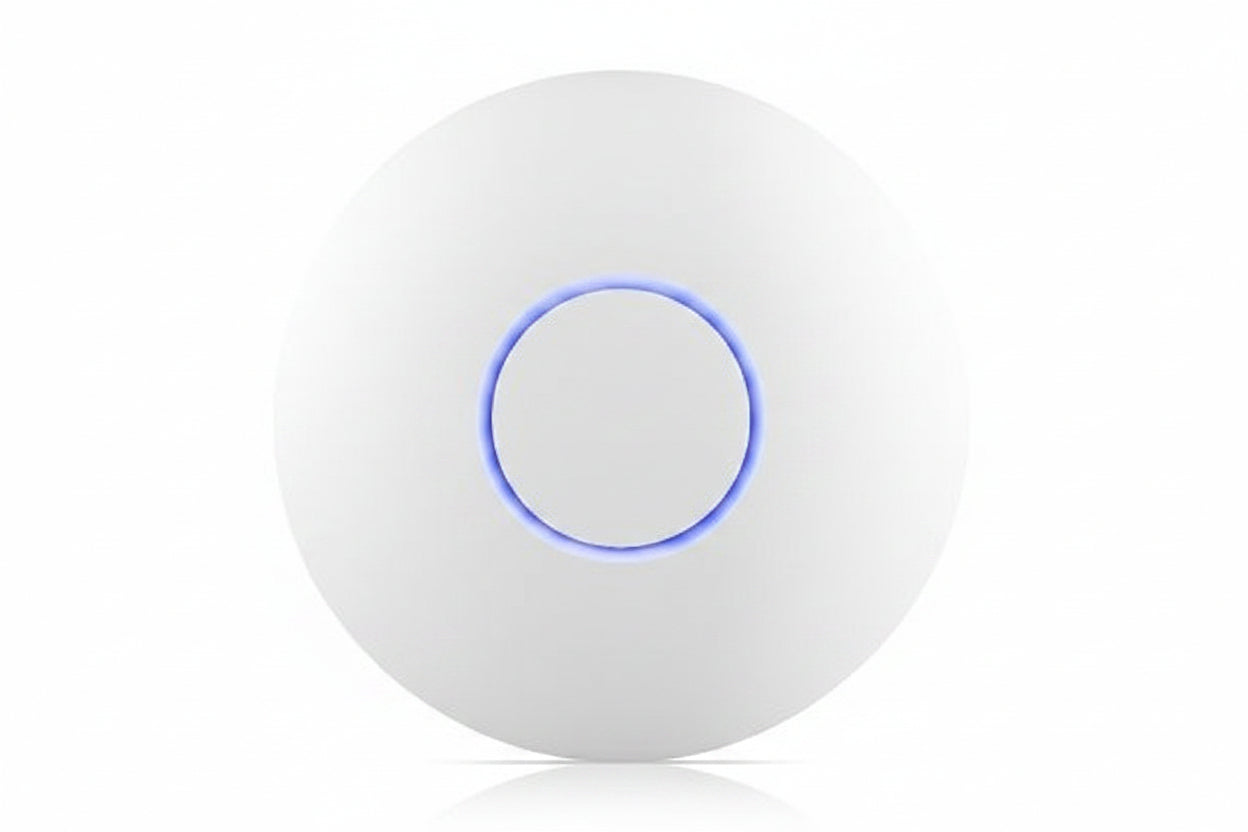

Ubiquiti UAP-AC-PRO-5-US AC Pro Access Point, US, 5-Pack, White

The Ubiquiti UAP-AC-PRO-5-US is a five-pack of UniFi AC Pro access points, a ceiling-mount WiFi 5 (802.11ac) unit with 3x3 MIMO and MU-MIMO. It suits installers and businesses building out multi-AP wireless networks that need to handle 250+ connected devices per access point. Gigabit Ethernet uplink and PoE power keep cabling to a single run per unit.

Key features

• Uses WiFi 5 (802.11ac) with 6 spatial streams.
• Covers up to 140 m² (1,500 ft²) per access point.
• Supports 250+ connected devices.
• Powered over PoE, so no separate power supply is needed at the ceiling.
• Gigabit Ethernet uplink for wired connection to the network.
• Supports MU-MIMO (Multi-User MIMO) for serving multiple clients.

Specifications

Brand: Ubiquiti

Model: UAP-AC-PRO-5-US

Product line: UniFi

Product series: UAP

Packaged quantity: 5

Wireless LAN standard: 802.11ac

MIMO technology: MU-MIMO (Multi-User MIMO)

Wireless transmission speed: 1.27Gbps

Frequency band: 2.40GHz

Number of antennas: 3

Ethernet technology: Gigabit Ethernet

Number of network (RJ-45) ports: 2

Form factor: Ceiling mount

Mount type: Ceiling mount

Color: White

Diameter: 7.70″

Width: 7.70″

Height: 1.40″

Weight: 15.90 oz

Power consumption: 9.0 W

Environmental certification: FCC

Country of origin: CN

Package contents: UniFi UAP-AC-PRO Wireless Access Point; Wall/Ceiling Kits

Installation notes

Plan cable runs to each ceiling location ahead of time and connect each unit to a PoE source, since it is powered over its Ethernet uplink. Space the access points for even coverage across the area and keep them clear of obstructions where possible.
