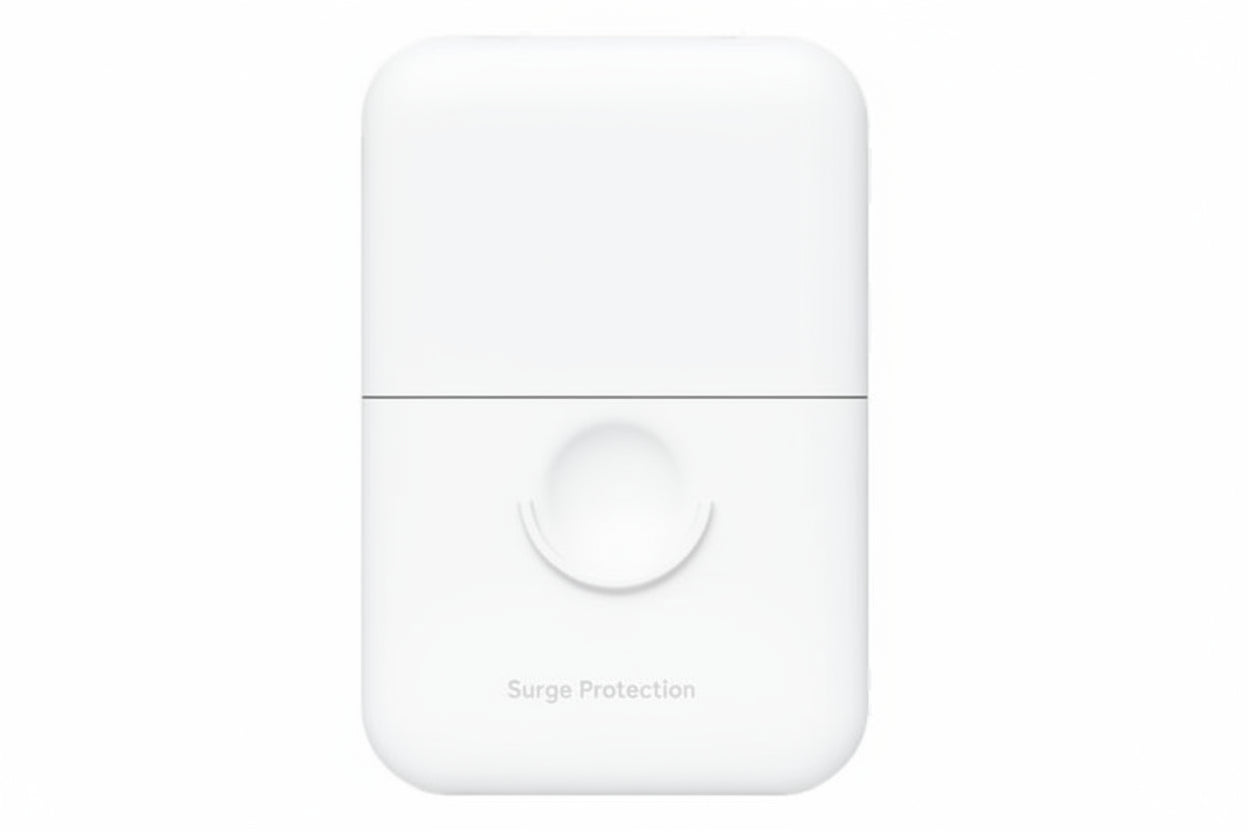

Ubiquiti UACC-ETH-SP-PRO Outdoor Ethernet Surge Protector, (2) RJ45 PoE++ Ports (60W), Up to 20kA, IPX5 Rated

The Ubiquiti UACC-ETH-SP-PRO is an outdoor Ethernet surge protector that guards networked devices against surges, with a discharge rating of up to 20kA. It gives two passive, surge-protected RJ45 connections in a compact polycarbonate housing with IPX5 weatherproofing. It suits installers and homeowners running Ethernet to outdoor devices who want protection that works with 10 GbE networks.

Key features

• Protects outdoor Ethernet devices from surges up to 20kA discharge current.
• Provides two passive, surge-protected RJ45 connections.
• Works with 10 GbE networks.
• Uses a polycarbonate enclosure with IPX5 weatherproofing.
• Installs quickly and easily.
• Measures 91 x 61 x 32.5mm (3.6 x 2.4 x 1.3″).

Specifications

Model: UACC-ETH-SP-PRO

Brand: Ubiquiti

Ports: (2) RJ45 PoE++ (60W)

Surge Protection: Up to 20kA

Weatherproofing: IPX5

Enclosure: Polycarbonate

Dimensions: 91 x 61 x 32.5mm (3.6 x 2.4 x 1.3″)

Installation notes

Place the protector in line with the outdoor Ethernet run, close to where the cable enters the building or reaches the device. Check that the mounting spot leaves room for the cable connections and keeps the unit protected from direct water exposure.
