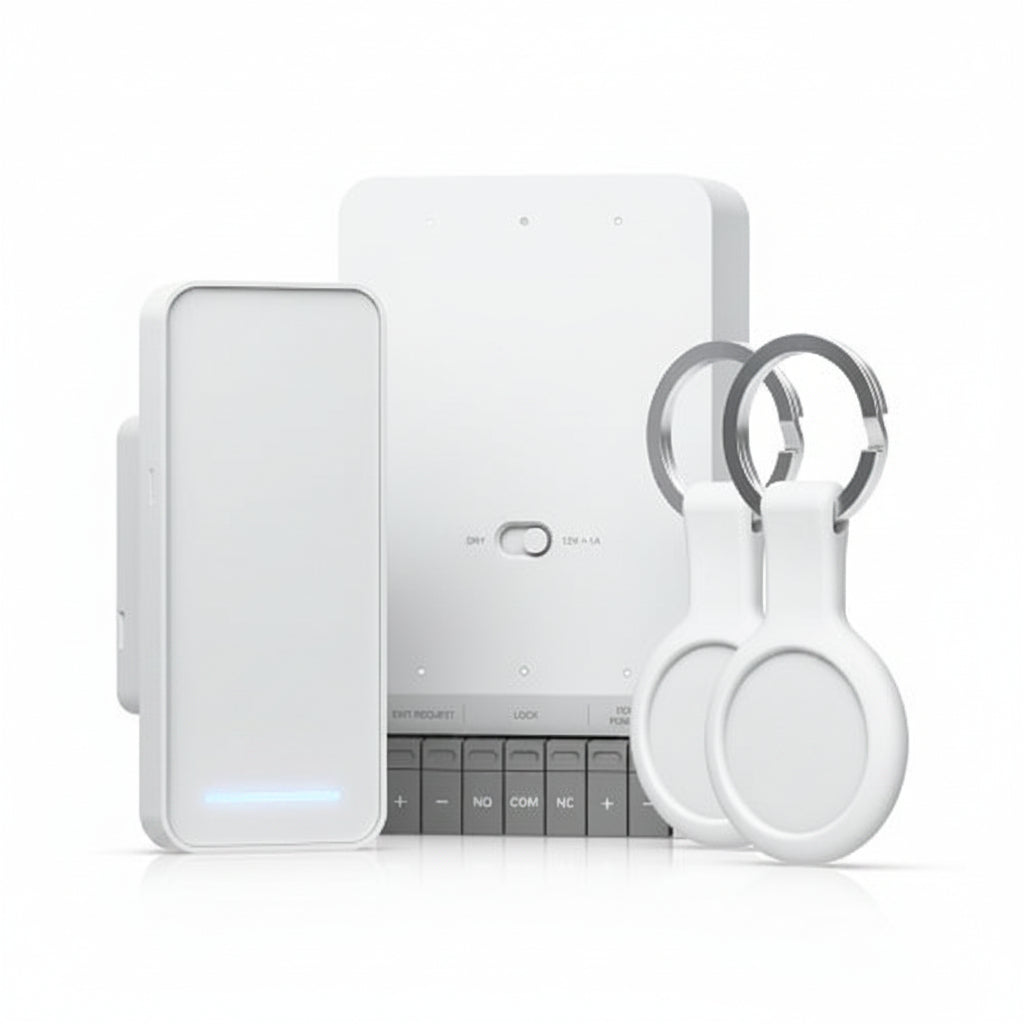

Ubiquiti UA-G3-SK G3 Starter Kit with Door Hub Mini, G3 Reader, and Pocket Keyfobs for Secure UniFi Access Control

The Ubiquiti UA-G3-SK is a UniFi Access starter kit that bundles a Door Hub Mini, a G3 Reader and two Pocket Keyfobs, giving you what you need to put one door under access control. It suits installers and businesses building out a UniFi Access system, and it stands out for covering NFC, mobile unlock and Apple/Google Wallet credentials in a single kit. The Door Hub Mini mounts on a DIN rail, and the outdoor-capable G3 Reader is tamper-resistant and UL 294 Level I certified.

Key features

• The kit includes a Door Hub Mini, a G3 Reader and two Pocket Keyfobs.
• The reader supports NFC, mobile unlock and Apple/Google Wallet access, and the kit includes 10 free 1-year Touch Passes for mobile credentials.
• The Door Hub Mini supports PoE++ and dual PoE output for connected devices.
• Dry and wet relay outputs give you flexibility when controlling different lock types.
• The G3 Reader is tamper-resistant, UL 294 Level I certified, and built for indoor and outdoor use.
• BLE 4.1 and a proximity sensor support user interaction, and the kit is NDAA compliant.

Specifications

Model: UA-G3-SK

Brand: Ubiquiti

Product Line: UniFi

Product Series: UA G3

Compatibility: UniFi Access

Form Factor: DIN Rail

Indoor/Outdoor: Outdoor

Ingress Protection Rating: IP54

Input Voltage: 48V DC

Power Consumption: 5.0000W

Environmental Certification: FCC

Environmentally Friendly: Yes

Package Contents: 2 x Pocket Keyfobs

Installation notes

Mount the Door Hub Mini on a DIN rail in a protected location close to the door, and confirm your PoE source can supply the power the hub and any connected devices will draw. Choose the dry or wet relay output to match your lock, and check the reader and lock operate correctly in UniFi Access before finishing the install.
