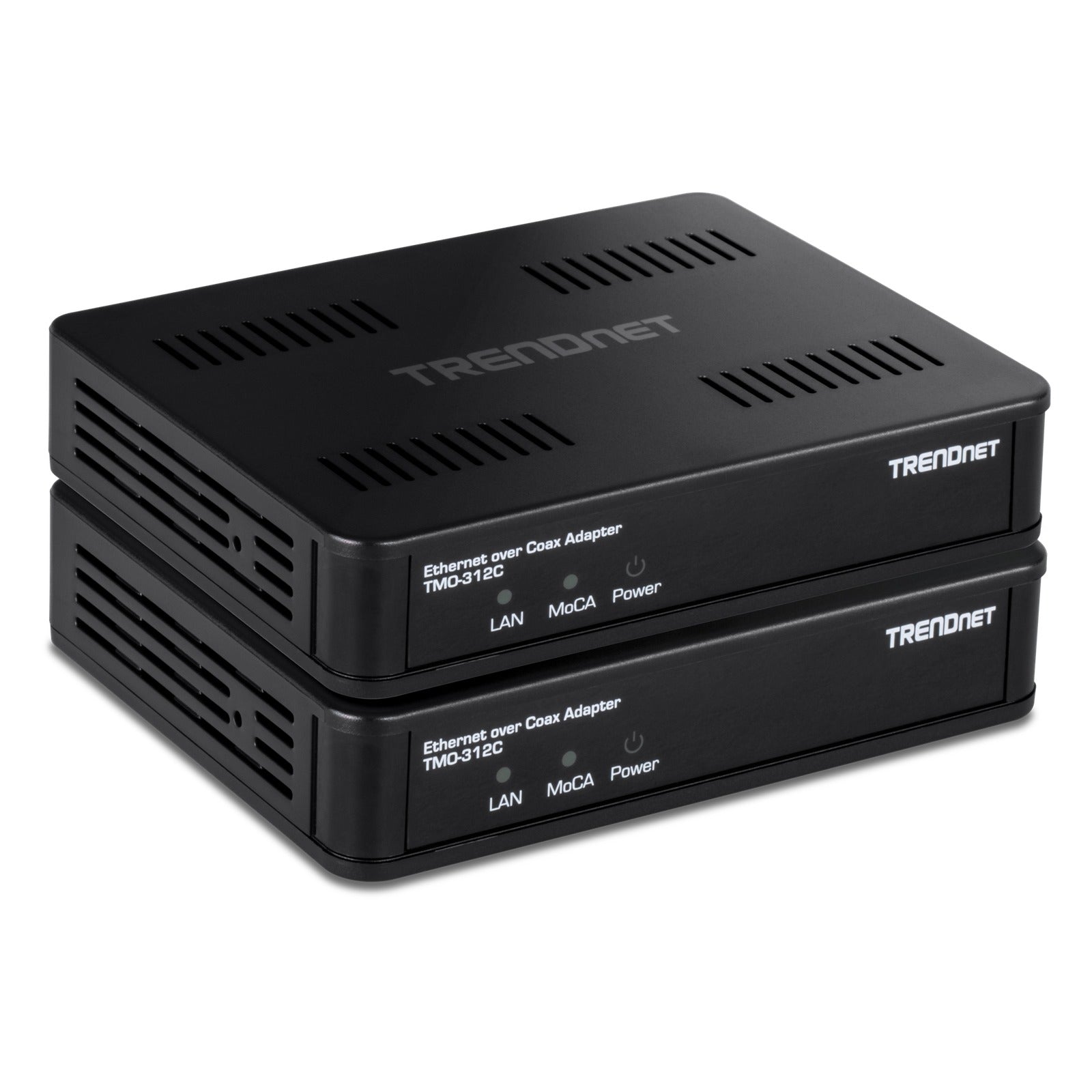

TRENDnet TMO-312C2K - MoCA 2.5 Ethernet Over Coax Adapter (2-Pack)

The TRENDnet TMO-312C2K is a two-pack of MoCA 2.5 Ethernet over coax adapters that connects Ethernet devices to an existing MoCA-compliant network. Each adapter has one Gigabit LAN port and one F-type coax connection, which suits installers and homeowners who want to use coax already in the walls. Bonded MoCA 2.5 channels give a net throughput of up to 2.5Gbps.

Key features

• The kit includes two MoCA 2.5 (TMO-312C) adapters, so you can set up a link right away.
• Each adapter has one RJ-45 Gigabit LAN port for wired devices.
• It works with MoCA 2.5 and is backward compatible with MoCA 2.0, 1.1 and 1.0.
• A single network can support up to 16 nodes.
• It is NDAA and TAA compliant for U.S. and Canada use.
• It is not compatible with DirecTV, DISH Network, AT&T U-Verse or other non-MoCA subscription services.

Specifications

Model: TMO-312C2K

Brand: TRENDnet

Product type: Coax Media Converter

Packaged quantity: 2

Media type supported: Coaxial

Coax connector: F-type female

Network technology: 10/100/1000Base-T

Ethernet technology: 1 Gbps (Gigabit Ethernet)

Number of RJ-45 ports: 1 per adapter

Maximum data transfer rate: 2.5Gbps

Power source: AC power

Power adapter: 12V, 1A (one per adapter)

Power consumption: 12.0W

Form factor / mount type: Desktop mount

Dimensions (W x D x H): 4.40″ x 3.50″ x 1.00″

TAA compliant: Yes

NDAA compliant: Yes

Country of origin: TW

Package contents: Ethernet over Coax 2.5Gbps Adapter (2-Pack), Quick Installation Guide, 2 x Power Adapter (12V, 1A)

Installation notes

Confirm the coax run is part of a MoCA-compliant network before you deploy, since these adapters will not work with satellite or other non-MoCA services. Place each adapter on a desktop or shelf within reach of an AC outlet and a coax wall jack, and keep the coax and Ethernet connections snug.
