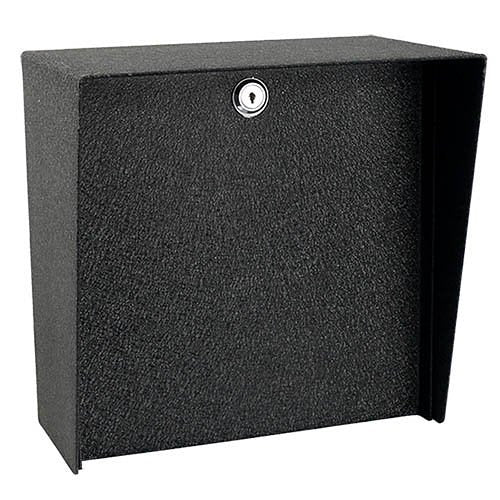

Pro MC-CS-10-E 10" x 10" Square Steel Outdoor Access Control Housing, Black

The Pedestal Pro MC-CS-10-E is a 10" x 10" square steel housing designed to secure and mount access control devices at pedestrian and vehicular entry points. Built for outdoor use in parking, gated entry, and access control applications, this lockable enclosure accommodates card readers, intercoms, keypads, cameras, push buttons, and control switches.

Constructed from 16-gauge steel and finished with a black powder coat that resists rust, fading, and weathering, the housing includes a removable door panel for flush-mount device installation. A 3" deep back box area and 3.5" weather canopy protect devices from sun, rain, and snow. The door panel features EPDM rubber weather seals and a zinc-plated cam lock with key for secure closure.

The housing includes 12 knockouts for flexible mounting to gooseneck pedestals, bollards, or walls, and a centered 1.8" hole for conduit access. All components are powder-coated at 400°F with outdoor-grade polyester TGIC finish for durability. The unit arrives fully assembled and ready to install.

• 10x10 inch square steel housing with 3-inch deep back box fits hundreds of access control device combinations
• Black powder-coated finish resists rust, scratching, and UV fading in outdoor environments
• Weatherproof design includes 3.5-inch overhang canopy, EPDM rubber seals, and zinc-plated cam lock
• Removable 16-gauge steel door panel allows flush-mount installation of card readers, keypads, and cameras
• 12 mounting knockouts and centered conduit hole enable installation on pedestals, bollards, or walls
• Arrives fully assembled with removable door panel, stainless steel hinge, and lock with keys included
