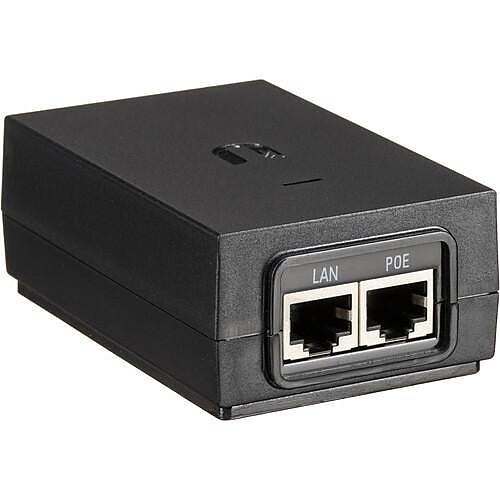

Ubiquiti POE-48-24W-G 48V PoE Adapter, Black

The Ubiquiti POE-48-24W-G is a 48V PoE adapter that injects power onto a gigabit Ethernet run so a single cable can feed a Ubiquiti PoE device. It suits installers and network admins deploying UISP-line gear where there is no PoE switch port available. Earth grounding and surge protection set it apart from a plain power supply, and its compact size makes it easy to place near the device or in a rack.

Key features

• Powers Ubiquiti PoE devices over the same cable that carries data.
• Includes earth grounding and surge protection for the connected link.
• Helps protect against ESD events.
• Provides a gigabit Ethernet input and a PoE output.
• Lists airGateway as a compatible device.

Specifications

Brand: Ubiquiti

Model: POE-48-24W-G

Product Line: UISP

Product Type: PoE Adapter

Color: Black

Compatibility: airGateway

Input Ports: 1 x Gigabit Ethernet

Output Ports: 1 x PoE

Power over Ethernet (PoE): Yes

Protection Type: Surge Protection

Input Voltage: 120V AC

Minimum Input Current: 0.4000A

Maximum Input Current: 0.60A

Minimum Frequency: 50Hz

Maximum Frequency: 60.00Hz

Maximum Output Voltage: 48V

Maximum Output Current: 500.0mA

Maximum Output Power: 24.00W

Width: 2.40″

Height: 1.30″

Depth: 3.60″

Weight: 5.59oz

Operating Temperature: 32-104°F

Storage Temperature: -22-158°F

Operating Relative Humidity: 35-95%

Installation notes

Connect the LAN port to your switch or router and the POE port to the powered device, and use the grounding connection so the surge protection can do its job. Keep the adapter indoors or in a protected enclosure within the listed operating temperature and humidity range, and confirm the link comes up before closing out the job.
