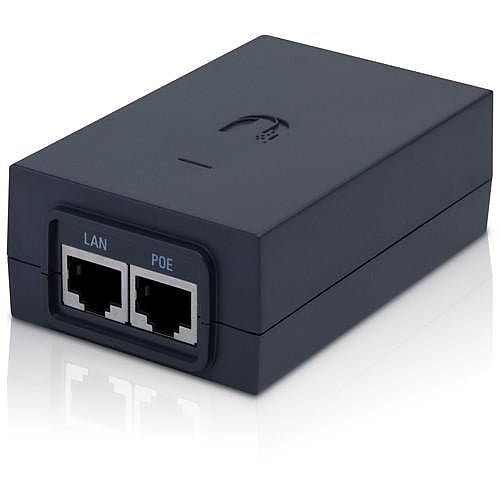

Ubiquiti POE-24-AF5X airFiber 5X PoE Injector, 24VDC, 24W

The Ubiquiti POE-24-AF5X is a desktop PoE injector from the UISP product line that delivers 24V DC power over Ethernet to Ubiquiti PoE devices, including airFiber radios. It suits installers and network owners who need a dedicated power source for a wireless link, with earth grounding and surge protection built in. It runs from 120V AC and supplies up to 24W at 1.0A.

Key features

• Powers Ubiquiti PoE devices over a single Ethernet connection.
• Provides earth grounding to help protect connected equipment.
• Includes surge protection on the power path.
• Helps protect against ESD events.
• Compact desktop form factor with Ethernet input and output ports.

Specifications

Brand: Ubiquiti

Model: POE-24-AF5X

Product Type: PoE Injector

Product Line: UISP

Compatibility: airGateway

Power over Ethernet (PoE): Yes

Form Factor: Desktop

Input Ports: Ethernet

Output Ports: Ethernet

Protection Type: Surge Protection

Input Voltage: 120V AC

Minimum Frequency: 50Hz

Maximum Frequency: 60.00Hz

Minimum Input Current: 0.4000A

Maximum Input Current: 0.60A

Maximum Output Voltage: 24V

Maximum Output Current: 1.0A

Maximum Output Power: 24.00W

Width: 2.20″

Height: 3.50″

Depth: 41.66cm

Weight: 5.59oz

Operating Temperature: 32-104°F

Storage Temperature: -22-158°F

Operating Relative Humidity: 35-95%

Installation notes

Connect the injector's output port to the PoE device and its input port to the network switch or router, and make sure the earth ground is properly connected so the surge protection can do its job. Place the unit indoors in a dry, ventilated spot within the listed operating temperature and humidity ranges.
