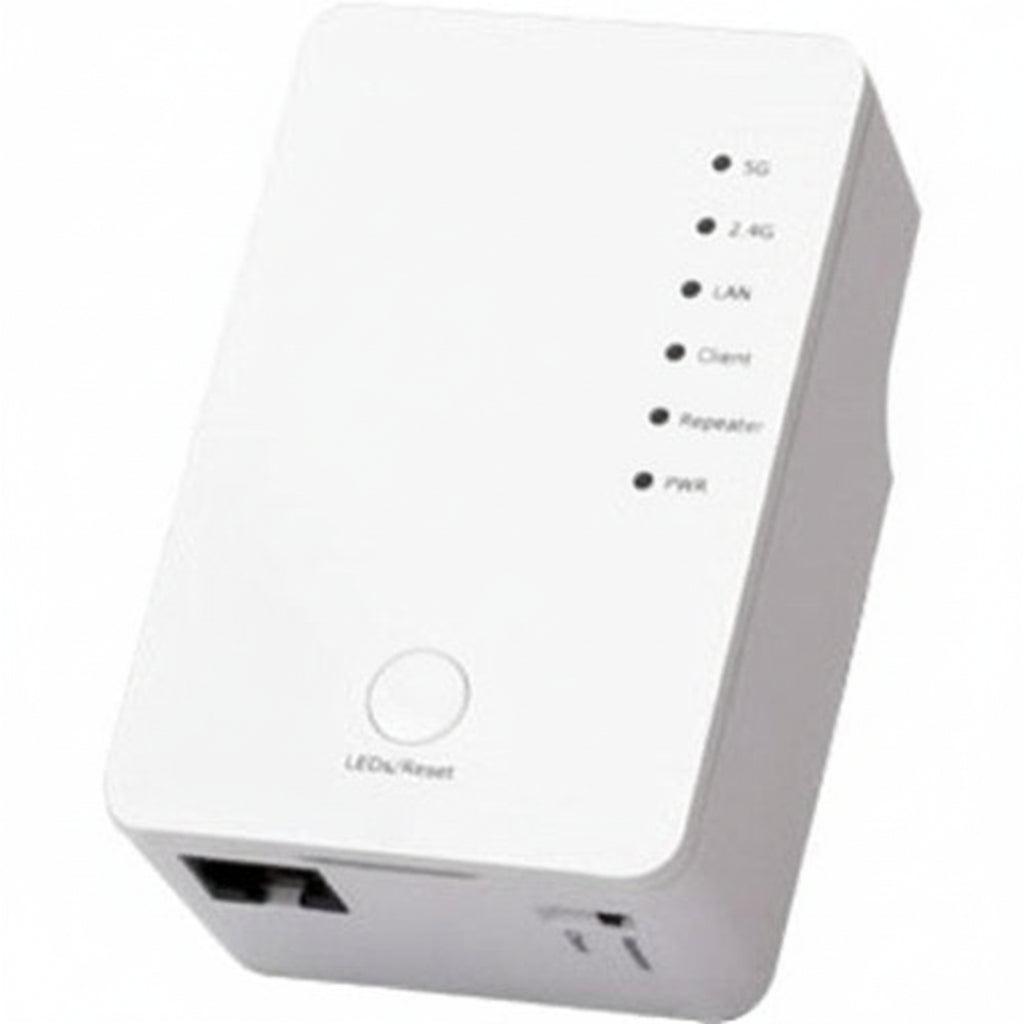

Luxul P40 AC1200 Wi-Fi Bridge Range Extender

The Luxul P40 is an AC1200 Wi-Fi bridge and range extender that plugs straight into a wall outlet. It extends an existing wireless network or links wired Ethernet devices to Wi-Fi, which suits homeowners and installers dealing with a weak-signal area or a device that needs a network connection without a cable run. It stands out for pairing 802.11ac speeds with a compact body.

Key features

• Transfers data at up to 1200Mbps over 802.11ac.
• Plugs directly into a wall outlet, so no separate power adapter is needed.
• Works in Repeater Mode to extend a network or in Bridge/Client Mode to connect wired devices.
• Keeps a compact design without giving up performance.
• Status LEDs can be set to stay off during operation.

Specifications

Brand: Luxul

Model: P40

Product type: Wireless Range Extender

Wireless standard: 802.11ac

Wireless transmission speed: 1.17Gbps

Frequency band: 5.00GHz

Antennas: 2 (2x2)

Encryption: WPA/WPA2-PSK

Connectivity: Wireless

Form factor / mount type: Wall Mount

Power source: AC Power

Dimensions: 5.67 x 3.78 x 3.03″

Depth: 1.50″

NDAA compliant: Yes

TAA compliant: No

Country of origin: CN

Packaged quantity: 1

Package contents: AC1200 WiFi Bridge + Range Extender, 1 x Quick Install Guide

Installation notes

Choose an outlet where the unit gets a solid signal from the main network, since placing it too far away will limit the benefit of extending. Confirm the mode (Repeater or Bridge/Client) before mounting so you can check connectivity at the final location.
