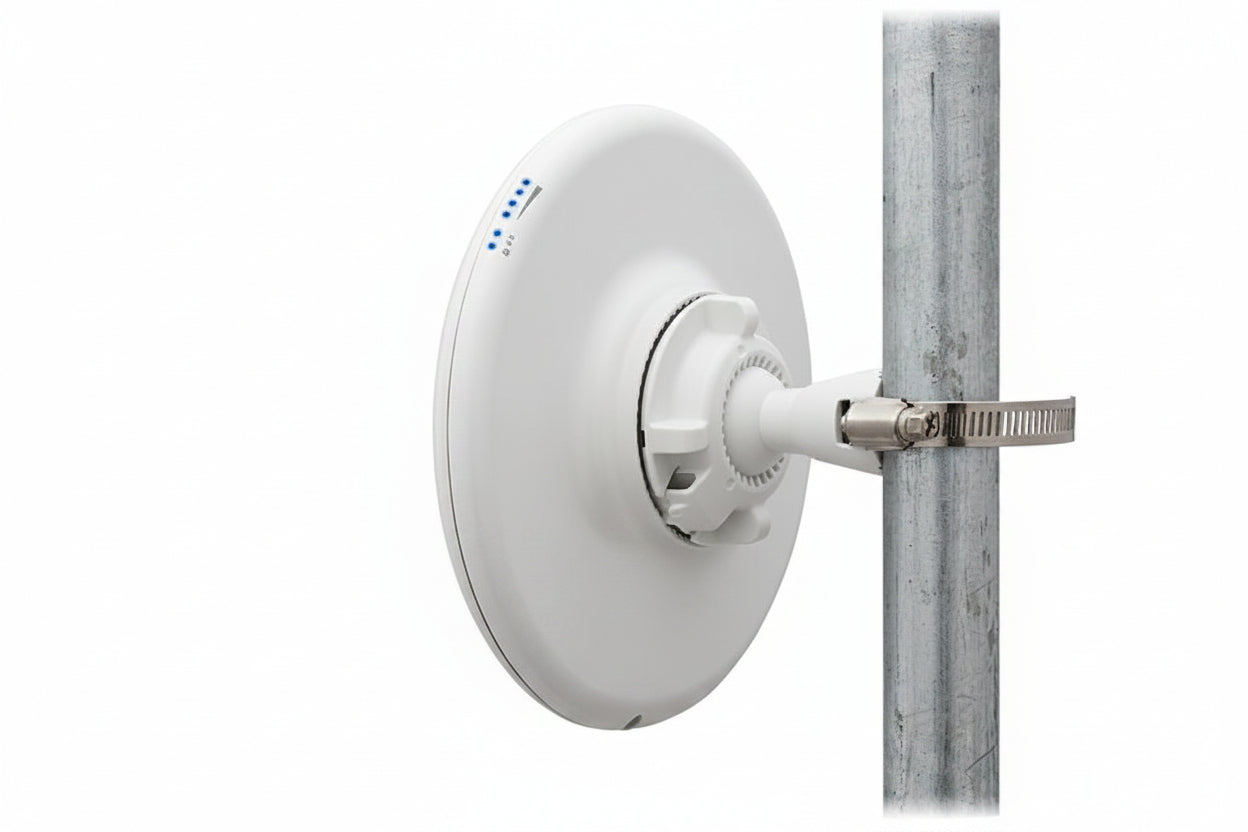

Ubiquiti NBE-5AC-GEN2-US NanoBeam 5AC Gen2, US

The Ubiquiti NBE-5AC-GEN2-US NanoBeam 5AC Gen2 is an outdoor 802.11ac wireless bridge that links two sites over a point-to-point connection. It suits installers and businesses that need a compact CPE unit with a rated outdoor antenna range of 9 miles. A dedicated management radio and throughput of 450+ Mb/s set it apart.

Key features

• Uniform beamwidth helps the antenna resist noise from nearby signals.
• A dedicated Wi-Fi radio handles management, separate from the data link.
• The airMAX ac processor is built for strong performance.
• Throughput reaches 450+ Mb/s.
• Power, LAN and WLAN LED indicators show unit status at a glance.
• The unit runs airOS software and supports versatile mounting.

Specifications

Model: NBE-5AC-GEN2-US

Brand: Ubiquiti

Product type: Bridge

Product line: UISP

Product series: airMAX

Wireless LAN standard: 802.11ac

Outdoor antenna range: 9mi

Throughput: 450+ Mb/s

Memory: 128MB DDR2, 8MB flash

Ethernet technology: 10 Gigabit Ethernet

Network (RJ-45) ports: 1

PoE (RJ-45) port: Yes

Power consumption: 8.5W

Indoor/Outdoor: Outdoor

Form factor / mount type: Pole Mount

Color: White

Length: 8.75″

Width: 7.40″

Depth: 7.40″

Height: 4.90″

Weight: 1.17 lb

Certifications: FCC, IC, CE; RoHS compliant

Country of origin: CN

Package contents: NanoBeam AC Gen2 NBE-5AC-GEN2 Wireless Bridge, Pole Mount Kit, 24V 0.5A Gigabit PoE Adapter

Installation notes

Mount the unit on a pole using the included kit, and aim it at the far-end radio with a clear line of sight. Power it through the supplied PoE adapter on the single RJ-45 port, and use the dedicated management radio to align and commission the link.
