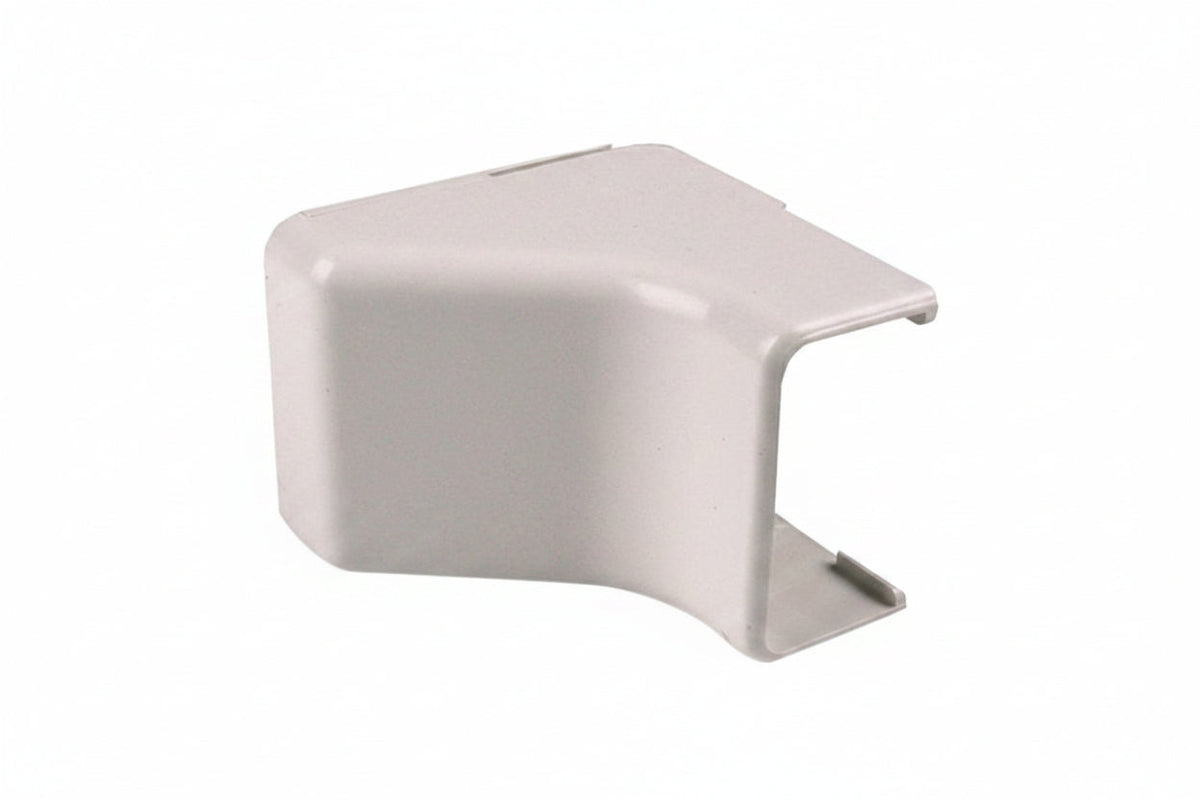

HellermannTyton TSR2I-50 1-1/4-Inch 2-Piece Cable Raceway Ceiling Drop, PVC, White, 10-Pack

The HellermannTyton TSR2I-50 is a 1-1/4-inch PVC cable raceway ceiling drop in white, sold as a 10-pack. It routes and covers premise wiring down from the ceiling, so installers and facilities teams can keep drops neat and protected. It has a hidden latch for secure closure and fast re-entry, and its fittings are built around a minimum bend radius.

Key features

• A hidden, self-locking positive latch resists tampering and still opens for quick re-entry.
• The fittings keep a minimum 1″ bend radius, in line with ANSI/TIA-568-C and 569-A.
• Rubber-based foam-tape adhesive bonds firmly and conforms to the mounting surface.
• A flexible hinge handles repeated openings without discoloration or stress cracking.
• The PVC construction is RoHS certified.

Specifications

Brand: HellermannTyton

Model: TSR2I50

Product Type: Cable Routing

Material: PVC

Color: White

Width: 1.25″

Packaging: 10-pack

Environmental Certification: RoHS

Environmentally Friendly: Yes

Country of Origin: US

Installation notes

Clean and dry the mounting surface before pressing the adhesive-backed raceway into place, so the foam tape bonds well. Lay the cable in without forcing it past the fitting bend radius, and confirm the latch is fully closed once the run is complete.
