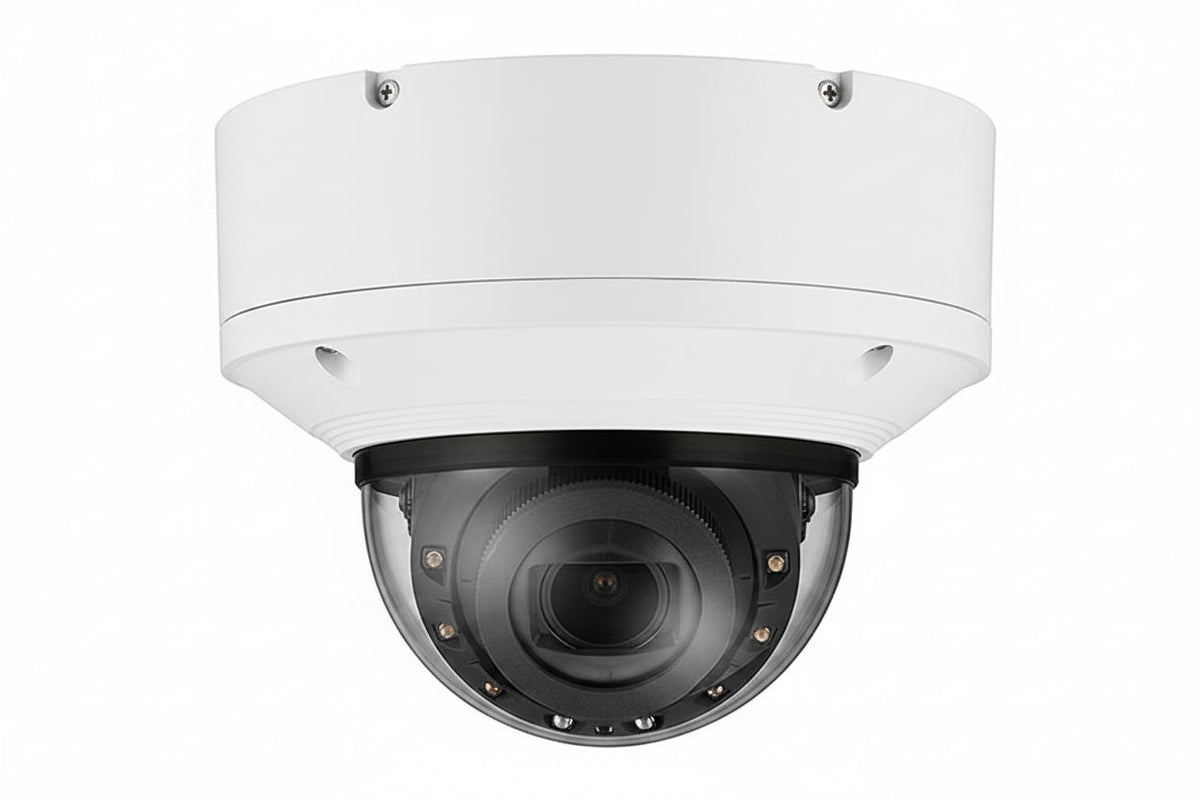

Hanwha XNV-9083R Series 8MP Outdoor IR Vandal Dome IP Camera, 4.4-9.3mm Motorized Varifocal Lens, White

The Hanwha XNV-9083R is an 8MP outdoor IR vandal dome IP camera with a 4.4-9.3mm motorized varifocal lens, finished in white. It handles day and night perimeter and building-exterior surveillance for installers, businesses and homeowners who need 4K detail in a tough housing. IK10 impact resistance, IP66 weather protection and NDAA and TAA compliance make it a solid fit for exposed or compliance-sensitive sites.

Key features

• Records up to 3840 x 2160 (4K) for clear, detailed live and recorded video.
• The varifocal lens lets you tune the field of view on site, with 2.1x optical zoom to bring distant subjects closer.
• The f/1.3 maximum aperture helps the camera produce sharp, detailed images.
• Built-in infrared night vision reaches up to 164.04 ft, picking up light the eye cannot see.
• A CMOS sensor delivers HD video with lower power draw.

Specifications

Brand: Hanwha

Model: XNV-9083R

Product Type: Dome Camera

Effective Camera Resolution: 8MP

Maximum Video Resolution: 3840 x 2160

Maximum Frame Rate: 30fps

Aspect Ratio: 16:9

Image Sensor Type: CMOS

Lens Type: Varifocal (lens included)

Focal Length: 4.4-9.3mm

Optical Zoom: 2.1x

Maximum Aperture: F1.3

Minimum Aperture: f/2.15

Iris Type: P-iris

Field of View (Horizontal): 112.1°

Field of View (Vertical): 58.00°

Minimum Illumination: 0.0040lux

Shutter Speed: 2 second to 1/12000 second

Wide Dynamic Range: Yes

Night Vision: Infrared (IR), 164.04 ft

Video Format: H.264

Recording Format: 4K

Storage Type: Memory Card

Features: Audio Detection

Connectivity: Wired, Network (RJ-45)

Remote Management: Yes

Cloud Capabilities: Cloud Enabled

Input Voltage: 12V DC

Form Factor: Dome

Mount Type: Pendant Mount

Indoor/Outdoor: Outdoor

Ingress Protection Rating: IP66

Impact Protection Rating: IK10

Durability: Impact Resistant

Operating Temperature: -58°F to 131°F

Operating Humidity: 95% RH (Non-condensing)

Diameter: 7.10″

Weight: 4.19 lb

Color: White

NDAA Compliant: Yes

TAA Compliant: Yes

Installation notes

Mount the camera on a solid surface suited to its 4.19 lb weight, and aim it to avoid direct glare or nearby reflective surfaces that can wash out the IR night image. Run network cabling to the RJ-45 port with a weather-sealed connection, confirm the 12V DC supply, and set the final field of view with the motorized varifocal lens during commissioning.
