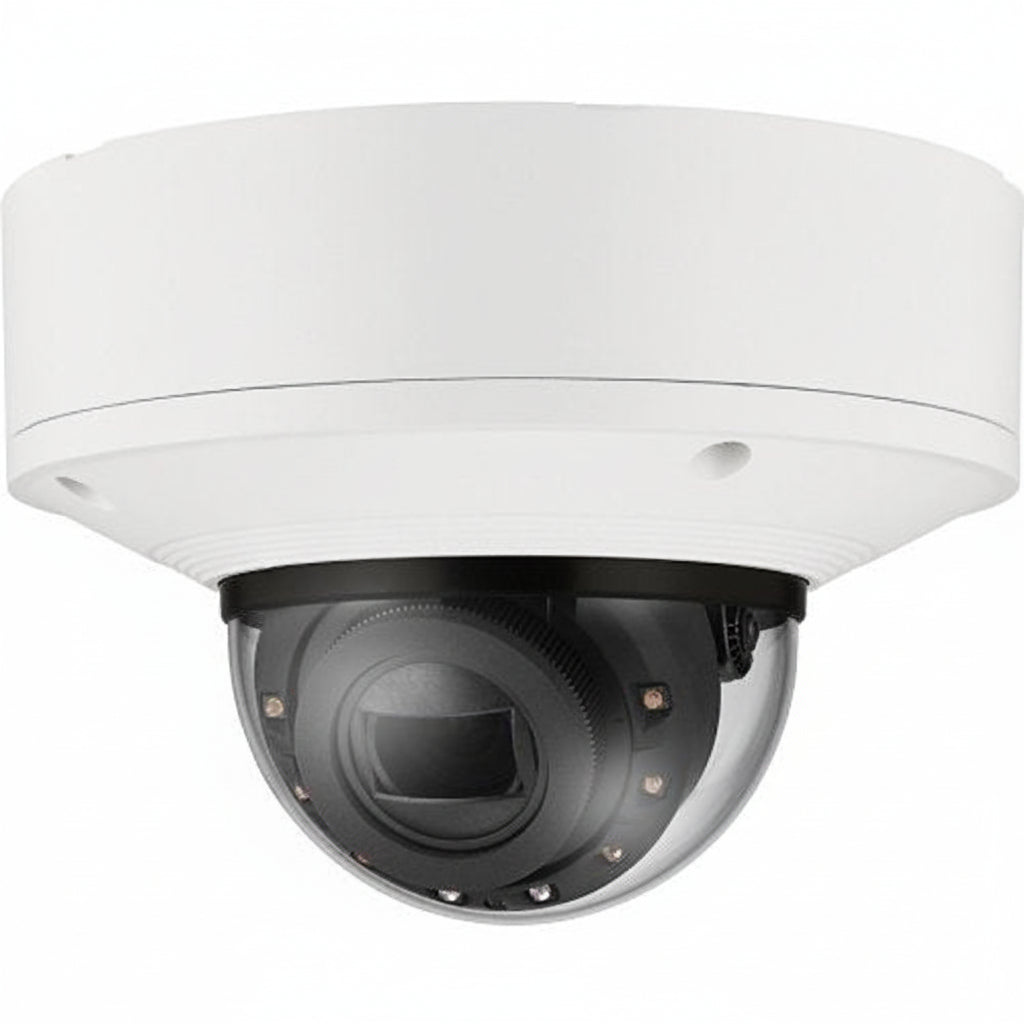

Hanwha XNV-6083R Series 2MP Outdoor IR Vandal Dome IP Camera, 2.8-12mm Motorized Varifocal Lens, White

The Hanwha XNV-6083R is a 2MP outdoor IR vandal dome IP camera with a 2.8-12mm motorized varifocal lens, built for installers and businesses that need dependable video in exposed locations. It records up to 1920 x 1080 and carries IK10 impact and IP66 ingress ratings, so it suits spots where tampering and weather are a concern. Infrared night vision reaches 164.04' and the unit is NDAA and TAA compliant.

Key features

• The motorized varifocal lens lets you fine-tune focus and framing for the scene.
• A 4.3x optical zoom and a 12mm maximum focal length help with identification at distance.
• An f/1.4 maximum aperture lets in more light for better image quality in low light.
• Infrared night vision captures footage out to 164.04' without any external light source.
• Full HD recording with up to 1920 x 1080 resolution gives clear, detailed video.

Specifications

Brand: Hanwha

Model: XNV-6083R

Product Type: Dome Camera

Effective Camera Resolution: 2MP

Maximum Video Resolution: 1920 x 1080

Maximum Resolution: 1280 x 720

Aspect Ratio: 16:9

Maximum Frame Rate: 120fps

Image Sensor Type: CMOS

Video Formats: H.264

Recording Formats: Full HD

Analog Video Signal Format: CVBS

Lens Type: Motorized Varifocal

Focal Length: 2.8-12mm

Minimum Focal Length: 2.80mm

Maximum Focal Length: 12.00mm

Optical Zoom: 4.3x

Maximum Aperture: F1.4

Minimum Aperture: f/3.6

Field of View: Diagonal

Field of View (Horizontal): 119.5°

Field of View (Vertical): 62.80°

Lens Included: Yes

Night Vision: Yes

Night Vision Type: Infrared (IR)

Night Vision Distance: 164.04'

Minimum Illumination: 0.0040lux

Longest Shutter Speed: 1/12000 Second

Shortest Shutter Speed: 2 Second

Wide Dynamic Range: Yes

Features: Audio Detection

Form Factor: Dome

Mount Type: Pendant Mount

Indoor/Outdoor: Outdoor

Durability: Impact Resistant

Impact Protection Rating: IK10

Ingress Protection Rating: IP66

Connectivity Technology: Wired

Network (RJ-45): Yes

Remote Management: Yes

Storage Type: Memory Card

Input Voltage: 12V DC

Minimum Operating Temperature: -58°F

Maximum Operating Temperature: 131°F

Operating Humidity: 95% RH (Non-condensing)

Diameter: 7.10″

Weight: 4.19lb

Color: White

TAA Compliant: Yes

NDAA Compliant: Yes

Country of Origin: VN

Installation notes

This is a pendant-mount dome, so confirm the mounting surface can support the camera's weight before drilling. Run the network cable and 12V DC power with a drip loop at the camera, then adjust zoom and focus remotely from the final viewing position once it is aimed.
