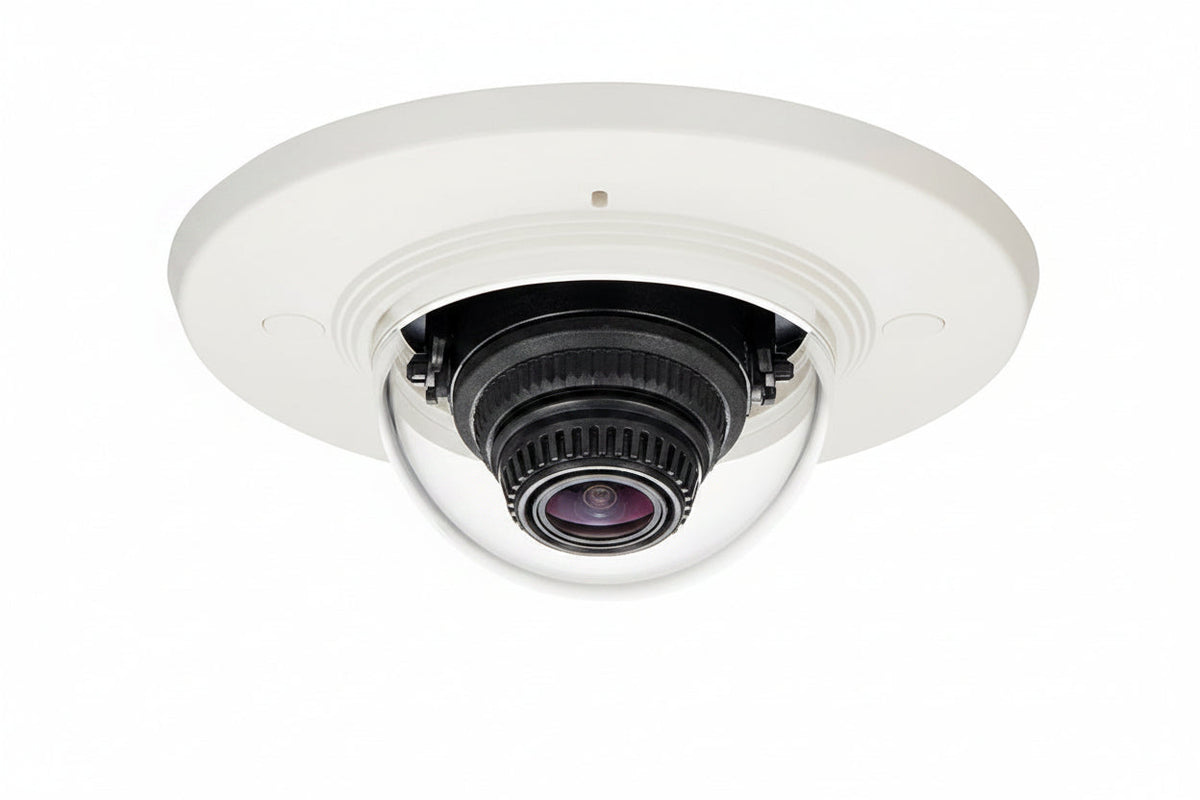

Hanwha XND-6011F X-Series 2MP Flush-Mount Indoor Dome Camera, 2.8mm Fixed Lens

The Hanwha XND-6011F is a 2MP flush-mount indoor dome network camera from the X-Series, built for interior spaces where a low-profile fixture is needed. It records at up to 60 fps through a 2.8mm fixed lens and handles bright and dark scenes with 150dB wide dynamic range. On-board business and audio/video analytics, a built-in mic and NDAA compliance make it a fit for retail and commercial installs.

Key features

• Captures 2MP video at up to 60 fps.
• Supports H.265, H.264 and MJPEG compression.
• Wide dynamic range of 150dB helps with high-contrast scenes.
• Includes on-board video and audio analytics plus built-in retail business intelligence analytics.
• Has digital image stabilization and a built-in microphone.
• Features a magnetic cover and a USB port to simplify installation.

Specifications

Model: XND-6011F

Brand: Hanwha

Product series: X

Product type: Dome camera

Effective resolution: 2MP

Maximum video resolution: 1920 x 1080

Aspect ratio: 16:9

Maximum frame rate: 60fps

Image sensor: CMOS

Lens type: Fixed

Focal length: 2.8mm

Maximum aperture: f/2

Field of view: Diagonal

Field of view (vertical): 62.20°

Minimum illumination: 0.5500 lux

Shutter speed range: 1/12000 second to 2 seconds

Wide dynamic range: Yes

Noise reduction: 2D Digital Noise Reduction (2DNR)

Video formats: MJPEG

Recording formats: H.264

Storage type: SD card

Network: RJ-45, Yes

Connectivity: Wired

Remote management: Yes

Input voltage: 12V DC

Mount type: Flush mount

Form factor: Dome

Indoor/outdoor: Indoor

Color: Ivory

Diameter: 3.90″

Height: 5.10″

Weight: 0.60 lb

Operating temperature: 14°F to 131°F

Operating humidity: 90% RH

NDAA compliant: Yes

Country of origin: KR

Installation notes

This is an indoor-only camera, so mount it in a protected location within the listed temperature and humidity range, and allow clearance above the ceiling surface for the flush-mount body. Run a network cable to the RJ-45 port, confirm the 12V DC power source is in place, and use the USB port and magnetic cover to aid setup and commissioning.
