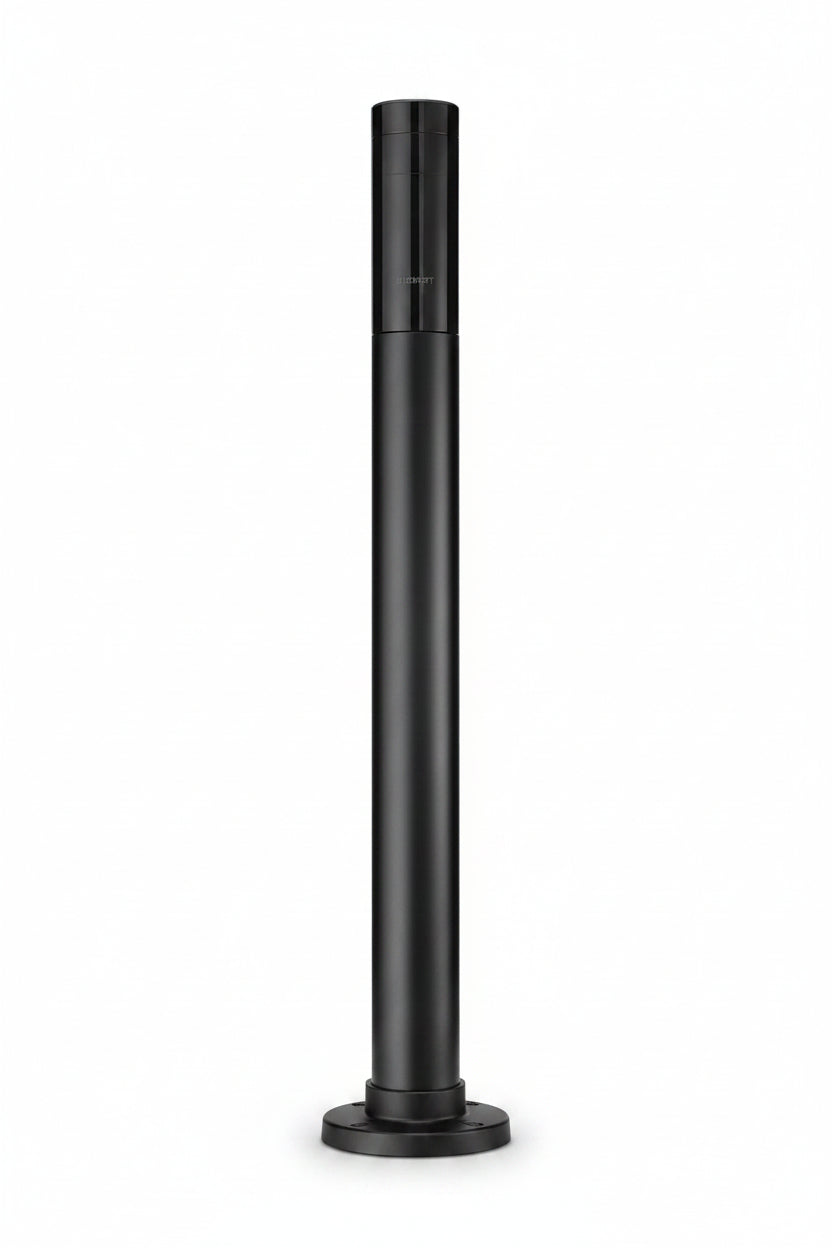

Hanwha XNB-H6282B X Series 2MP IP Bandit Barrier Camera, Kit

The Hanwha XNB-H6282B (model XNBH6282B) is a 2MP IP Bandit Barrier camera kit from the X Series. It is built for banking and retail counters, where a lens has to sit at a teller window or service point. It suits installers fitting teller towers, counters and partitions. The height-adjustable Bandit Barrier lens and the built-in audio support stand out.

Key features

• Records 2MP (1920 x 1080) video at up to 60fps in H.265 or H.264, with MJPEG and multiple streaming also supported.
• A 2.8 mm wide-angle lens, with WDR (120dB) to handle high-contrast scenes.
• Built-in analytics, Hallway View, WiseStream II and LDC are supported.
• Bi-directional audio is supported, and the camera runs on PoE or 12V DC.
• An SD, SDHC or SDXC card slot takes cards up to 256GB for onboard storage.
• The lens height is adjustable, with installation options for different installation types.

Specifications

Model: XNB-H6282B

Brand: Hanwha

Product Series: X

Product Type: Network Camera

Resolution: 2MP (1920 x 1080)

Aspect Ratio: 16:9

Maximum Frame Rate: 60fps

Lens Type: Fixed

Focal Length: 2.8mm

Lens Included: Yes

Wide Dynamic Range: Yes

Shortest Shutter Speed: 1/12000 Second

Longest Shutter Speed: 2 Second

Analog Video Signal Format: CVBS

Features: Audio Detection

Storage Type: Memory Card

Network (RJ-45): Yes

Connectivity Technology: Wired

Remote Management: Yes

Input Voltage: 12V DC

Mount Type: Box Mount

Color: Black

Operating Temperature: 14°F to 131°F

Operating Humidity: 90%

Weight: 14.82oz

Country of Origin: VN

Package Contents: 1 x XNB-H6282B 2MP Network Bandit Barrier Camera, 1 x XNB-6002 main unit, 1 x SLA-T2880BA Bandit Barrier lens with 8m cable

Installation notes

Plan the main unit location and the lens position together, so the lens cable reaches without strain. Set the lens height at the counter or window before final fixing, and check the field of view on a live image. Confirm the PoE or 12V DC supply and the network connection before commissioning, and format any memory card in the camera.
