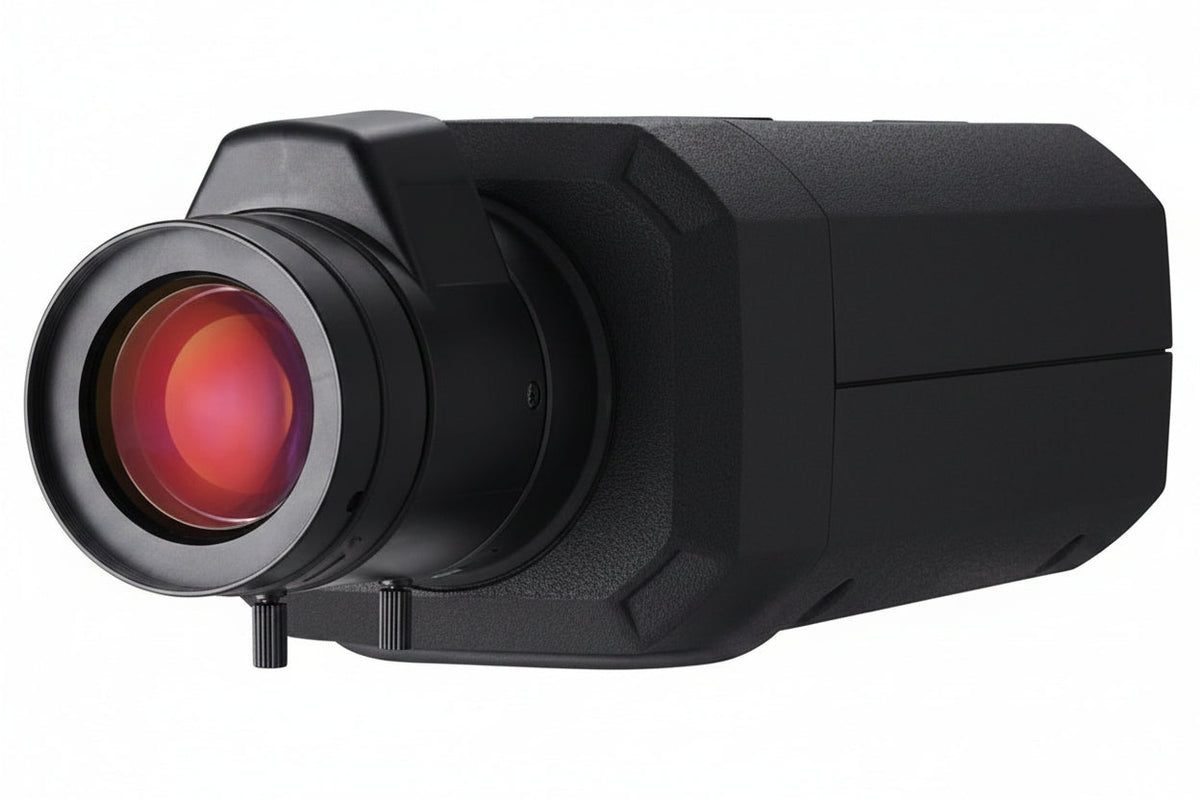

Hanwha XNB-6003 X Series 2MP AI Box Camera

The Hanwha XNB-6003 is an X Series 2MP box network camera for indoor surveillance, built around a CMOS sensor and Full HD recording. It suits installers and businesses that want a C-mount box camera with a manual lens and remote management, and its standouts are Wide Dynamic Range, audio detection and NIR active illumination for night vision.

Key features

• Delivers Full HD recording for clear real-time surveillance video.
• Uses a CMOS sensor, which draws less power than a CCD while producing good HD video.
• Includes motion detection, plus audio detection, to help flag activity.
• Connects over a wired network, with an RJ-45 port for the connection.
• Supports remote management and Wide Dynamic Range for scenes with mixed lighting.

Specifications

Brand: Hanwha

Model: XNB-6003

Product Series: X

Product Type: Network Camera

Image Sensor Type: CMOS

Maximum Resolution: 1280 x 720

Maximum Video Resolution: 1600 x 1200

Aspect Ratio: 16:9

Maximum Frame Rate: 120fps

Recording Formats: Full HD

Video Formats: H.264

Analog Video Signal Format: CVBS

Video Signal Format: CVBS (Composite)

Wide Dynamic Range: Yes

Features: Audio Detection

Night Vision Type: NIR Active Illumination

Longest Shutter Speed: 2 Second

Shortest Shutter Speed: 1/12000 Second

Lens Type: Manual

Lens Mount Type: C

Mount Type: Box Mount

Indoor/Outdoor: Indoor

Connectivity Technology: Wired

Network (RJ-45): Yes

Remote Management: Yes

Storage Type: Memory Card

Minimum Operating Temperature: 14°F

Maximum Operating Temperature: 131°F

Operating Humidity: 95%

Width: 3.20″

Height: 2.60″

Depth: 6.50″

Color: Black

TAA Compliant: Yes

Country of Origin: VN

Installation notes

This is an indoor box camera with a manual C-mount lens, so fit and focus the lens at the mounting location and check the view on a live feed before final tightening. Keep the network cable run protected and strain-relieved, and aim the camera away from direct light sources to get the most from the sensor and WDR.
