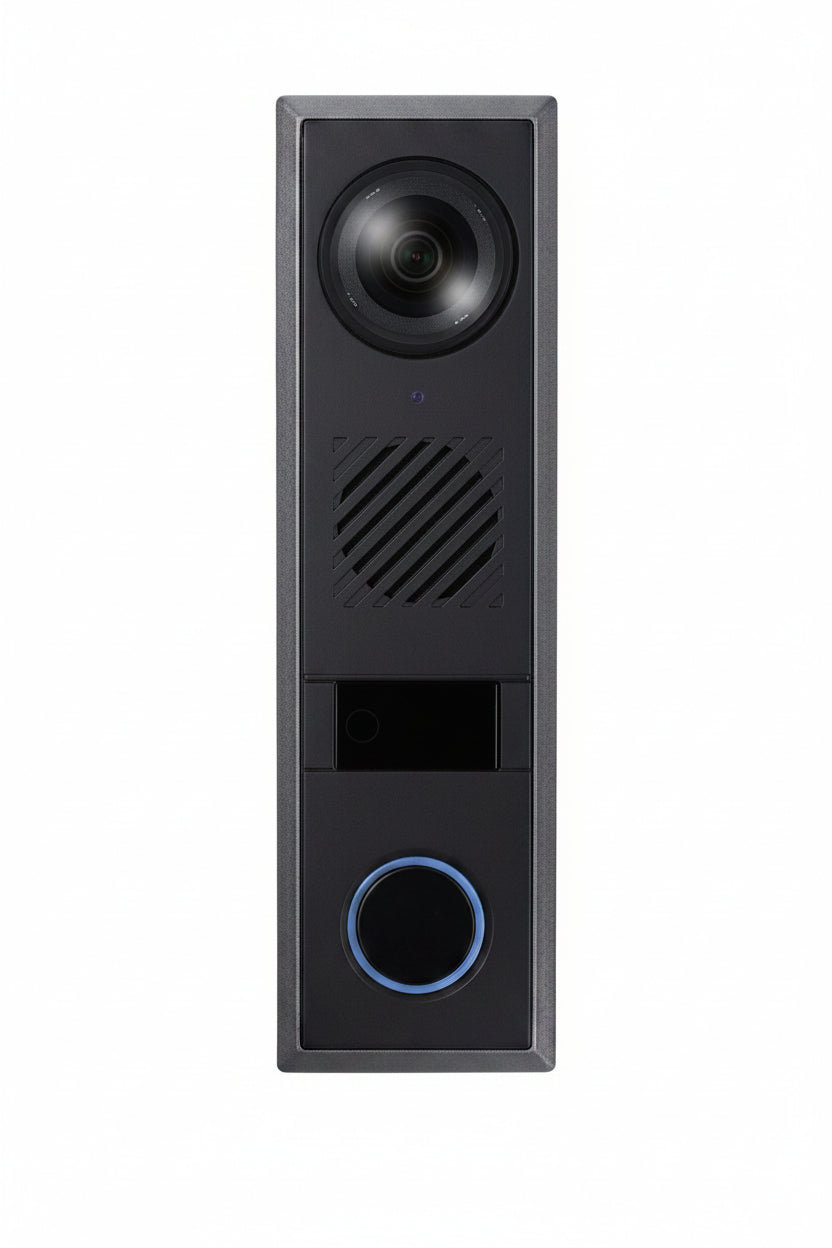

Hanwha TID-600R T Series 1-Slot 2MP IP Video Intercom Station with PoE, 12VDC, 1.6mm Fixed Lens

The Hanwha TID-600R is a T Series IP video intercom station that pairs a 2MP camera with a built-in microphone and speaker for two-way communication at an entry point. It suits installers and businesses adding a SIP-based door station to a surveillance setup. The 1.6 mm fixed lens covers a 180° horizontal view, and the housing is rated IP65, IK08 and NEMA 4X.

Key features

• The 1/2.8″ 2MP sensor and 1.6 mm fixed lens give a 180° horizontal and 114° vertical field of view.
• Infrared viewing reaches 5 m for low-light visibility.
• The built-in mic and speaker deliver 85 dB at 0.5 m, with echo cancellation and noise reduction for clearer conversations.
• Touchless call and a built-in tamper switch are included.
• SIP 2.0 support lets it work with SIP-based systems.
• Power comes from PoE or 12VDC, and a microSD slot is built in. The relay output is rated at a maximum of 550 mA when used with a 2A 12VDC adapter.

Specifications

Brand: Hanwha

Model: TID-600R

Product series: T

Product type: Video Door Phone Sub Station

Effective resolution: 2MP

Image sensor: 1/2.8″ CMOS

Lens: 1.6 mm fixed focal, F1.6

Horizontal field of view: 180°

Vertical field of view: 114°

IR viewable length: 5 m

Speaker output: 85 dB at 0.5 m

Input voltage: 12V DC (PoE also supported)

Power consumption: 17.6 W

Storage: MicroSD, 1 slot

Protection ratings: IP65, IK08, NEMA 4X

Color: Black

Material: Aluminum

Dimensions (W x H x D): 1.90″ x 6.50″ x 1.90″

NDAA compliant: Yes

TAA compliant: No

Country of origin: VN

Installation notes

Mount the station at a height and angle that gives a clear view of visitors' faces, and avoid pointing it at bright light sources. If you power it over PoE, confirm the switch or injector can supply enough power. If you use the 12VDC input with a relay load, make sure the adapter matches the relay output requirement.
