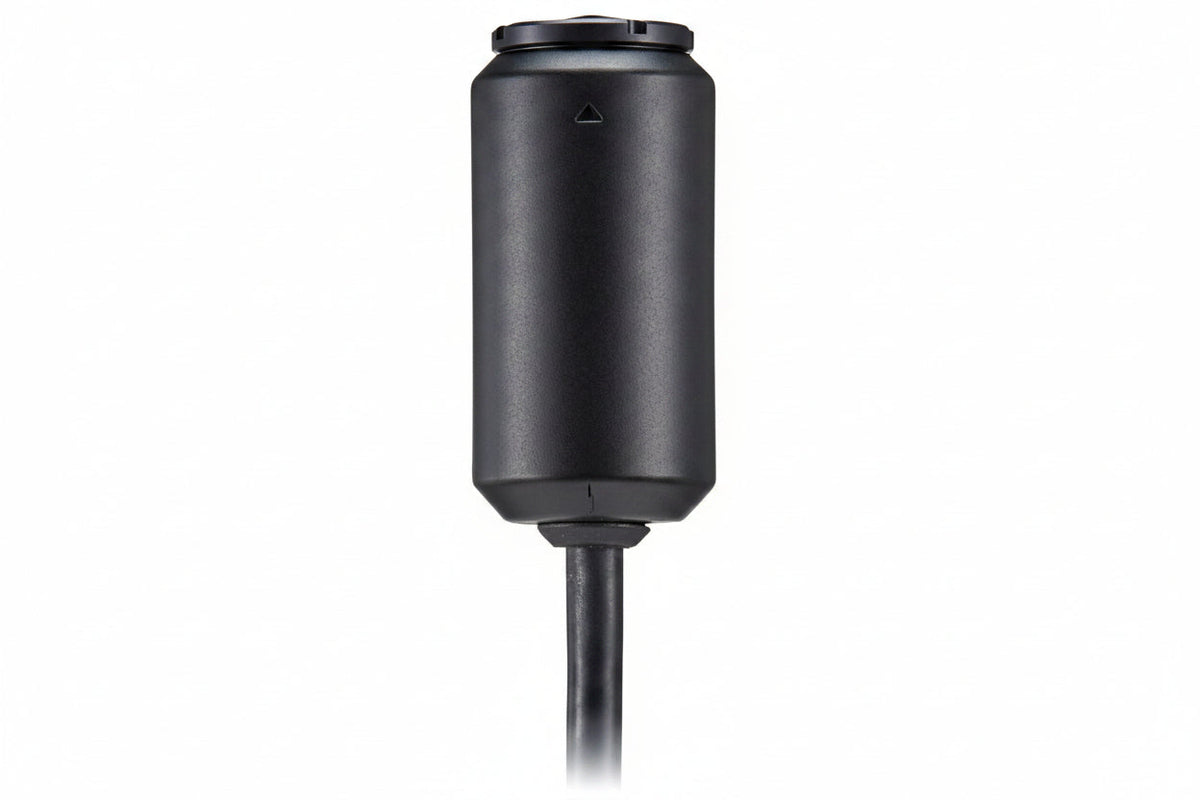

Hanwha SLA-T2480 Lens Module for XNB-6001 Cameras, 2.4mm Fixed Lens

The Hanwha SLA-T2480 is a 2.4mm fixed lens module made for Hanwha XNB-6001 cameras. It gives the camera a wide 138° horizontal field of view, which suits installers who need to cover a broad area from a single position. It pairs 2MP resolution with 0.45 Lux low-light sensitivity and 120dB WDR, and it is NDAA compliant.

Key features

• The 2.4mm fixed focal length provides a horizontal field of view of 138°.
• 2MP resolution delivers a standard HD image.
• Low-light sensitivity is rated at 0.45 Lux.
• 120dB WDR helps balance scenes with bright and dark areas.
• An 8m/26ft cable connects the lens module to the camera.

Specifications

Model: SLA-T2480

Brand: Hanwha

Product Type: Lens Module

Focal Length: 2.4mm

Resolution: 2MP

Minimum Illumination: 0.45 Lux

WDR: 120dB

Horizontal Field of View: 138°

Cable Length: 8m/26ft

Compatibility: Hanwha XNB-6001 Surveillance Camera

NDAA Compliant: Yes

Color: Black

Height: 2.00″

Diameter: 0.90″

Country of Origin: KR

Installation notes

Plan the lens position so the cable run between the module and the camera stays within the supplied cable length, and avoid sharp bends or strain on the cable. After mounting, check the view on a monitor and adjust the aim so the wide field of view covers the target area.
