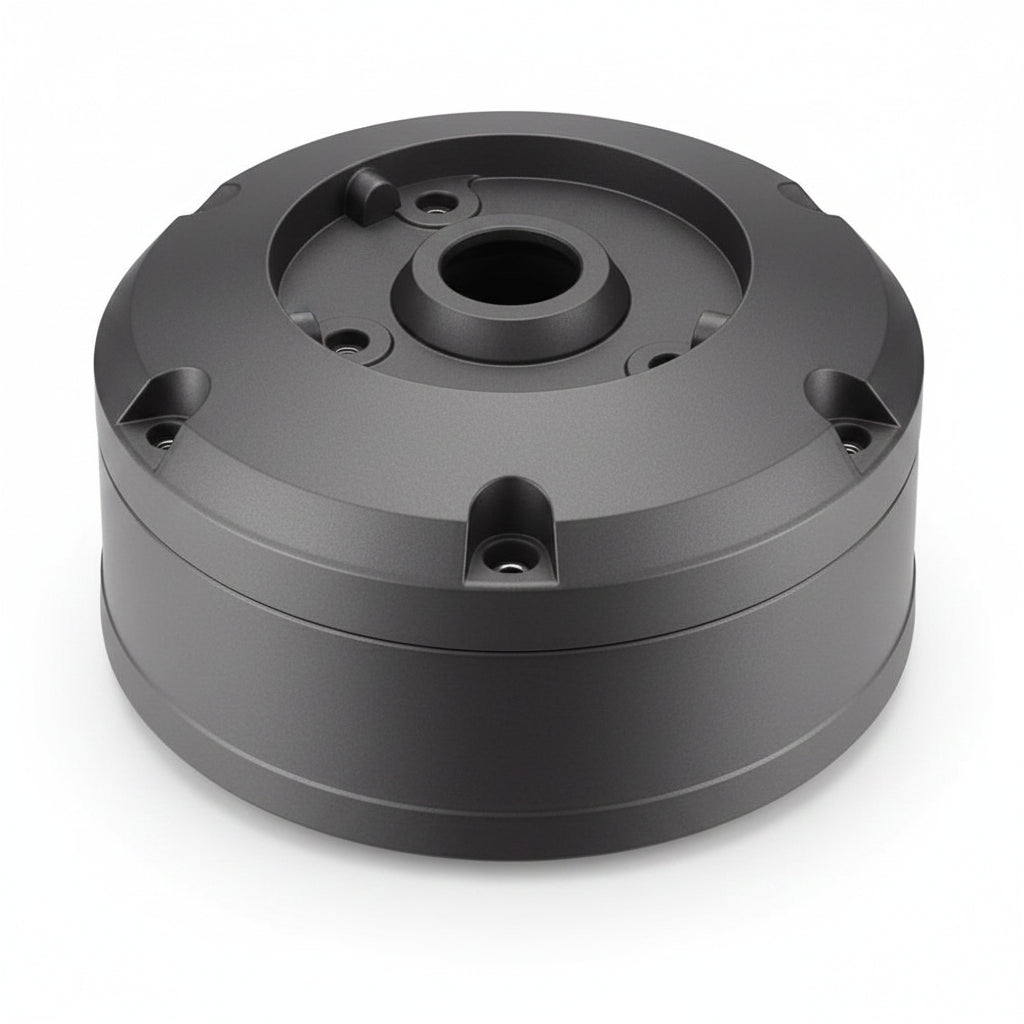

Hanwha SBO-147B Back Box for QNO-6082R Bullet Camera, Dark Gray

The Hanwha SBO-147B is a dark gray aluminum back box made for the Hanwha QNO-6082R bullet camera. It gives that camera a water-proof mounting enclosure, which suits installers and integrators fitting QNO-6082R units outdoors or in exposed locations. It is NDAA compliant and built from metal rather than plastic.

Key features

• Made specifically for the Hanwha QNO-6082R network bullet camera.
• Water-proof design helps protect the connection area from the elements.
• Aluminum construction in a dark gray finish.
• Round body measuring Ø147.5 x 73.3 mm (5.81 x 2.89″).
• Weighs 980 g (2.16 lbs).
• Listed as NDAA compliant.

Specifications

Brand: Hanwha

Model: SBO-147B

Product Type: Mounting Box

Device Supported: Network Camera

Compatibility: Hanwha Techwin QNO-6082R Network Camera

Material: Aluminum

Color: Dark Gray

Dimensions: Ø147.5 x 73.3 mm (5.81 x 2.89″)

Diameter: 5.80″

Height: 2.90″

Weight: 980 g (2.16 lbs)

Features: Water Proof

NDAA Compliant: Yes

Country of Origin: VN

Installation notes

Fasten the back box to a solid surface before mounting the camera, and route the cable through the box so the entry point stays sealed. Because the box is only rated water-proof as listed, keep any cable penetrations and the camera joint properly sealed during installation.
