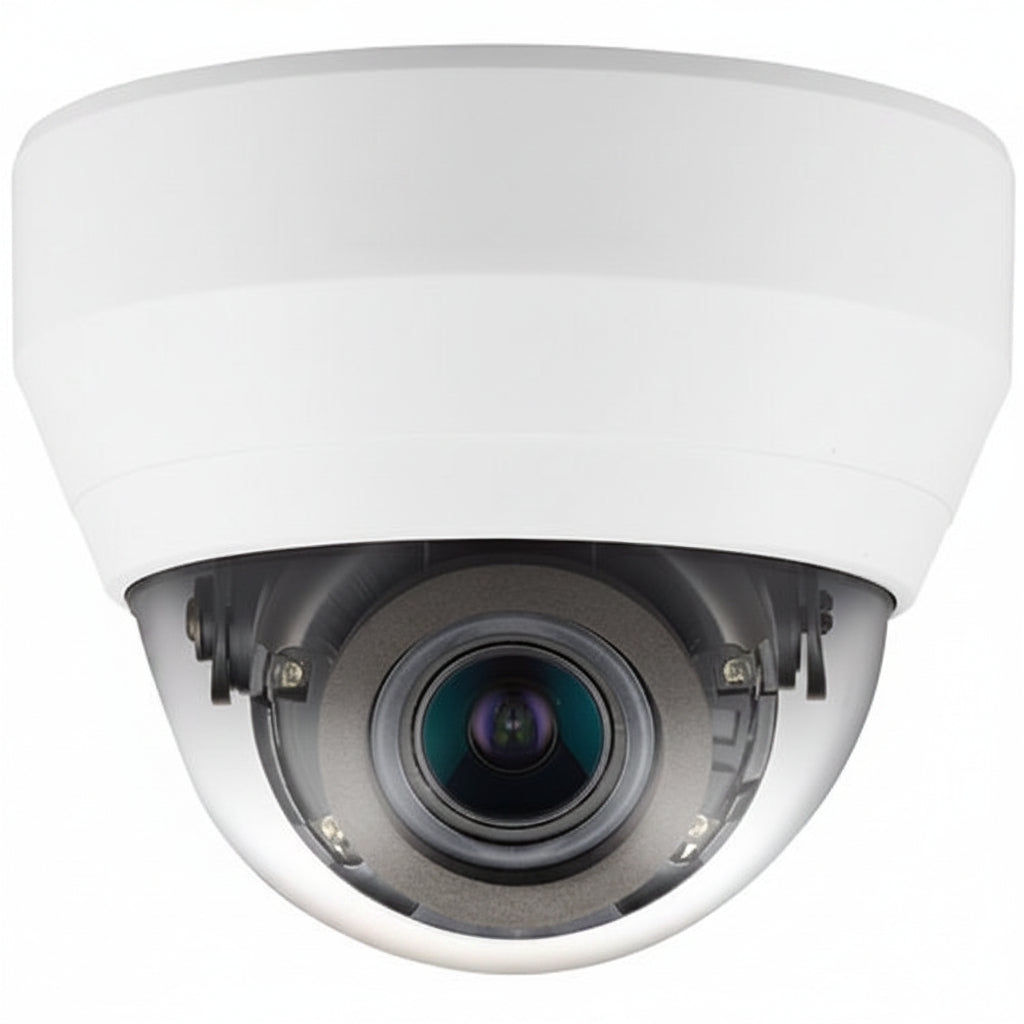

Hanwha QND-6082R Q-Series 2MP IR Vandal Dome Camera, 3.2-10mm Varifocal Lens, White

The Hanwha QND-6082R is a 2MP outdoor IR vandal dome network camera from the Q-Series, with a motorized 3.2-10mm varifocal lens. It suits installers and businesses that need one wired camera for day and night coverage and want to set the field of view after mounting. It is NDAA compliant and records to an onboard microSD card.

Key features

• Captures 2MP (1920 x 1080) video at up to 30fps at all resolutions.
• The 3.2-10mm (3.1x) varifocal lens lets you adjust the view on site.
• Infrared LEDs give about 20m of viewable range in the dark.
• Supports H.265, H.264 and MJPEG with multiple streaming.
• Built-in motion, tampering and defocus detection, plus hallway view and LDC support.
• A microSD/SDHC/SDXC slot takes cards up to 128GB, and power is PoE or 12VDC.

Specifications

Brand: Hanwha

Model: QND-6082R

Product Series: Q

Product Type: Dome Camera

Color: White

Effective Camera Resolution: 2MP

Max. Resolution: 1920 x 1080

Aspect Ratio: 16:9

Image Sensor Type: CMOS

Maximum Frame Rate: 30fps

Video Codecs: H.265, H.264, MJPEG

Focal Length: 3.2-10mm

Optical Zoom: 3.0x

Maximum Aperture: F1.6

Field of View (Horizontal): 109.0°

Field of View (Vertical): 57.40°

Minimum Illumination: 0.095Lux (Color), 0Lux (B/W, IR LED on)

Night Vision: Yes, Infrared (IR)

Night Vision Distance: 20m (65.62′)

Wide Dynamic Range: Yes

Shutter Speed: 1/12,000 second to 1/5 second

Storage: Micro SD/SDHC/SDXC, up to 128GB

Network (RJ-45): Yes

Connectivity: Wired

Remote Management: Yes

Input Voltage: 12V DC (PoE supported)

Mount Type: Ceiling Mount

Indoor/Outdoor: Outdoor

Ingress Protection Rating: IP66

Durability: Waterproof

Operating Temperature: 14°F to 131°F

Operating Humidity: 90% RH

Diameter: 4.72″

Height: 3.90″

Weight: 0.71lb

NDAA Compliant: Yes

Country of Origin: VN

Installation notes

Choose a mounting spot where the IR LEDs will not shine onto a nearby wall, soffit or other close surface, since that reflection can wash out the night image. Seal the cable entry point, and fine-tune the zoom and focus on the live image once the camera is mounted and powered.
