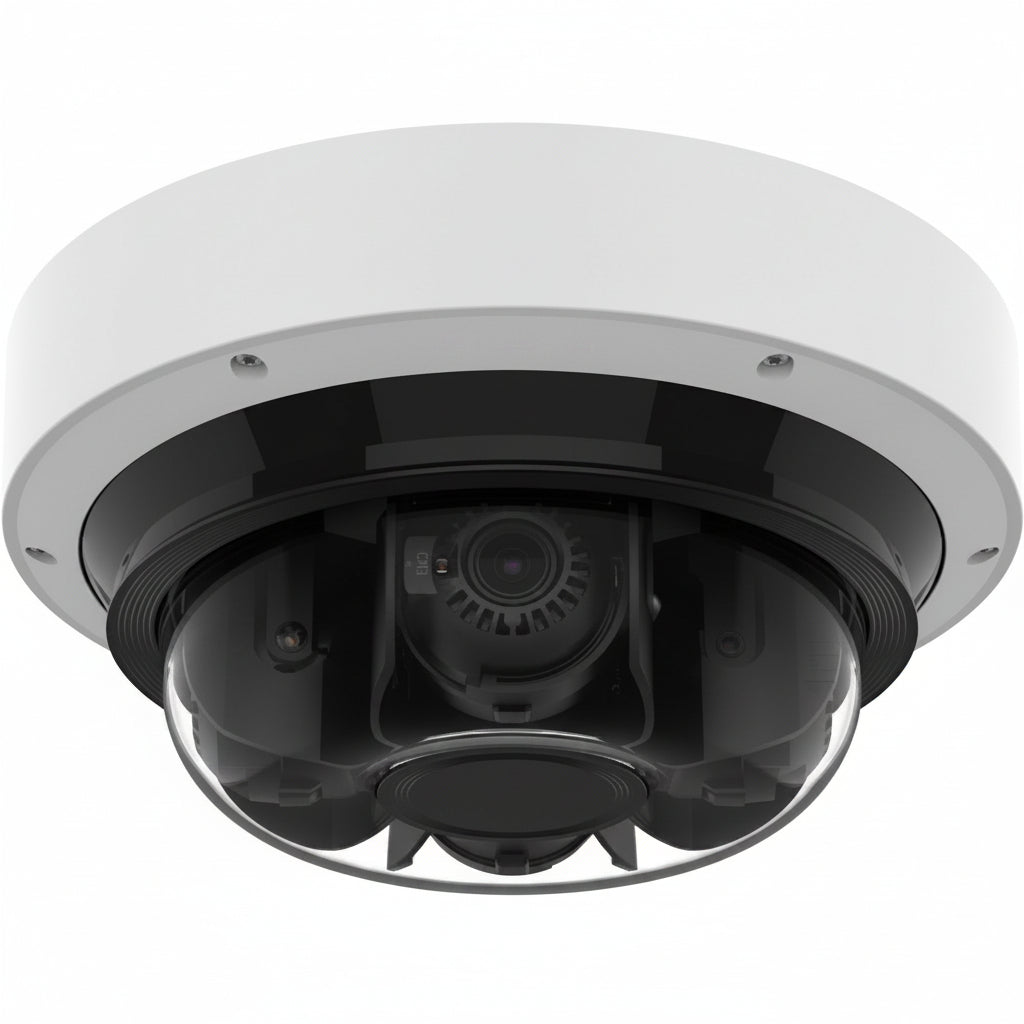

Hanwha PNM-C32083RVQ 4K 4-Channel Smart Camera with IP66 Protection, 3.3-5.7mm Motorized Varifocal Lens

The Hanwha PNM-C32083RVQ is a multi-directional network camera with four 8MP sensors in one outdoor dome, giving 32MP of effective resolution. It suits installers and businesses that need to cover several directions, such as a corner or intersection, from a single mounting point. Its AI person and vehicle classification and its IP66, IK10 and NEMA4X protection are what stand out.

Key features

• AI-based analytics events classify objects as a person or a vehicle.
• Vehicle attributes distinguish car, bus, truck, motorcycle and bicycle.
• BestShot is supported.
• WiseNR II, prefer shutter control and WiseStream III are included.
• TPM 2.0 with FIPS 140-2 level 2 is built in.
• The housing is rated IP66, IK10 and NEMA4X.

Specifications

Model: PNM-C32083RVQ

Brand: Hanwha

Product name: 4K x 4 AI IR Multi-directional Dome

Product type: Dome Camera

Number of sensors: 4

Effective camera resolution: 32MP

Maximum video resolution: 3840 x 2160

Maximum frame rate: 20fps

Image sensor type: CMOS

Aspect ratio: 16:9

Video format: H.264

Lens type: Motorized varifocal, lens included

Focal length: 3.3-5.7mm

Field of view (horizontal): 109.0°

Field of view (vertical): 55.00°

Maximum aperture: f/1.5

Minimum aperture: f/1.9

Shutter speed: 1/12,000 second to 2 seconds

Minimum illumination: 0.0100 lux

Night vision: Yes, Infrared (IR)

Night vision distance: 65.62'

Wide dynamic range: Yes

Storage type: Memory card

Network: RJ-45

Connectivity: Wired

Remote management: Yes

Indoor/outdoor: Outdoor

Ingress protection rating: IP66

Impact protection rating: IK10

Mount type: Conduit box mount

Operating temperature: -40°F to 131°F

Operating humidity: 0-95% RH (non-condensing)

Diameter: 9.84″

Weight: 6.22lb

Color: White

TAA compliant: Yes

Country of origin: KR

Installation notes

Each of the four sensors is adjusted by hand for pan along the track, tilt and rotation, so plan time on site to aim each view. Mount it to a conduit box, seal the cable entry properly to keep the outdoor rating, and use a ladder or lift suited to the camera's 6.22lb weight.
