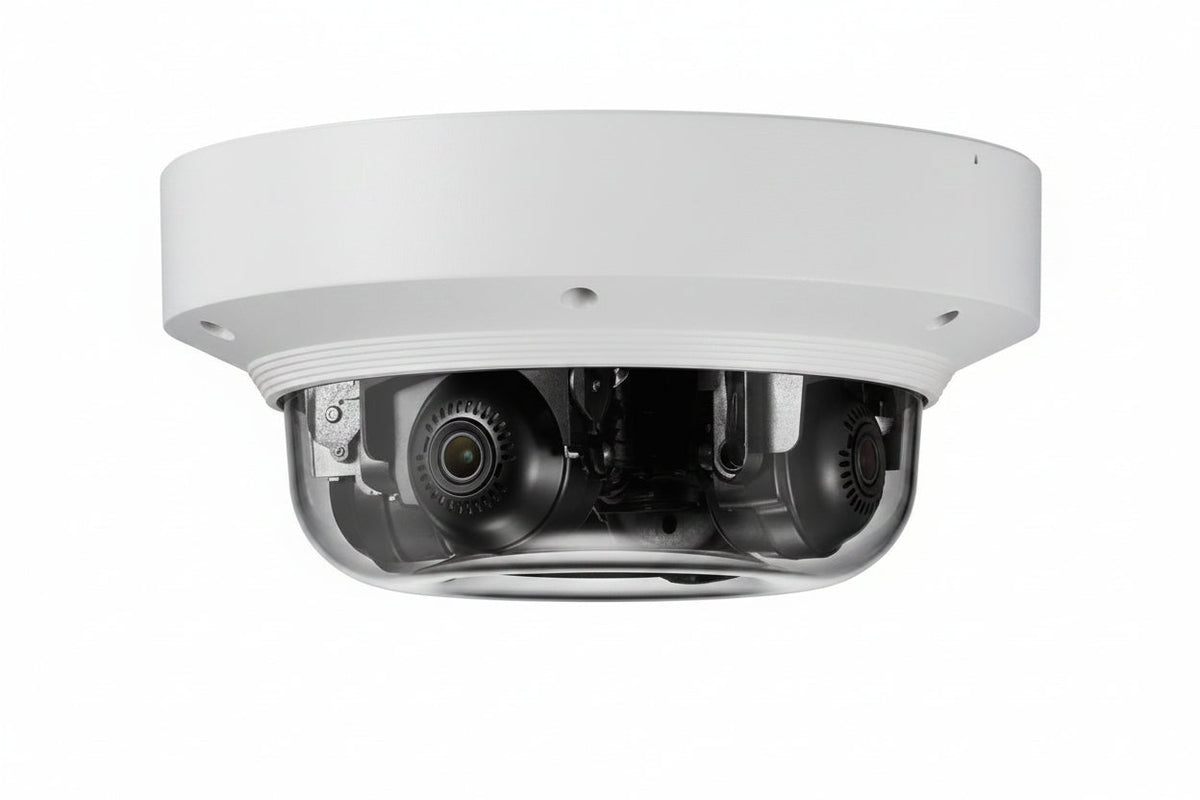

Hanwha PNM-9084QZ1 P Series 8MP (2MP x 4) Multi-Sensor Multi-Directional PTRZ Camera, 3-6mm Motorized Varifocal Lens, IP66, IK10 (Replaces PNM-9084QZ)

The Hanwha PNM-9084QZ1 is a P Series multi-directional network camera with four 2MP sensors, giving an effective 8MP of coverage from a single dome housing. It suits installers and businesses that want to watch several directions from one mounting point instead of running multiple cameras. The 3-6mm motorized varifocal lens, IP66 and IK10 ratings, and a wide operating temperature range make it a fit for exposed locations (it replaces the PNM-9084QZ).

Key features

• Four sensors in one dome cover multiple directions with a single camera.
• The varifocal lens adjusts from 3mm to 6mm, with 2x optical zoom for bringing subjects closer.
• A CMOS image sensor and a maximum aperture of f/2.2 support sharp, detailed video.
• Full HD recording and H.264 video keep the footage clear and the format familiar.
• Wide dynamic range, alarm triggering and remote management are supported.
• IP66 and IK10 ratings make it dust-tight, water-resistant and impact resistant.

Specifications

Model: PNM-9084QZ1

Brand: Hanwha

Product Series: P

Product Type: Network Camera

Form Factor: Dome

Color: White

Number of Sensors: 4

Effective Camera Resolution: 8MP

Image Sensor Type: CMOS

Maximum Resolution: 1280 x 720

Maximum Video Resolution: 1600 x 1200

Aspect Ratio: 16:9

Recording Formats: Full HD

Video Formats: H.264

Maximum Frame Rate: 60fps

Lens Included: Yes

Lens Type: Varifocal

Focal Length: 3-6mm

Minimum Focal Length: 3.00mm

Maximum Focal Length: 6.00mm

Optical Zoom: 2.0x

Maximum Aperture: f/2.2

Minimum Aperture: f/3.1

Field of View: Diagonal

Longest Shutter Speed: 2 Second

Shortest Shutter Speed: 1/12000 Second

Wide Dynamic Range: Yes

Features: Alarm Triggering

Connectivity Technology: Wired

Network (RJ-45): Yes

Remote Management: Yes

Storage Type: Memory Card

Mount Type: Ceiling Mount

Ingress Protection Rating: IP66

Impact Protection Rating: IK10

Durability: Impact Resistant

Operating Humidity: 90%

Minimum Operating Temperature: -40°F

Maximum Operating Temperature: 131°F

Weight: 6.61lb

Diameter: 9.90″

TAA Compliant: Yes

Country of Origin: KR

Installation notes

Choose a mounting surface that can safely carry the camera's 6.61lb weight, and plan the cable run to the RJ-45 port before you mount it. Aim each sensor at its area of interest and adjust the motorized lens from the network during commissioning, then confirm the view from each direction before closing up the dome.
