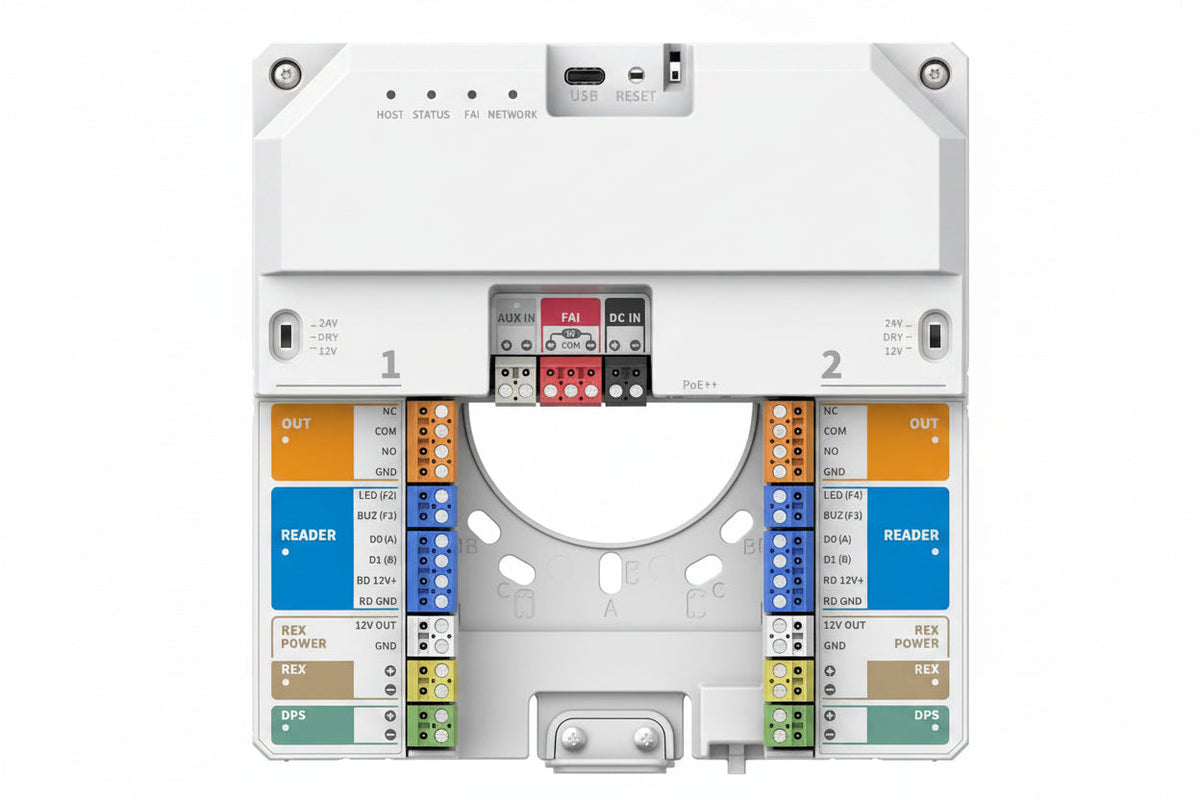

Hanwha NHP-P200 OnCAFE IP Controller, 2-Doors, 2-Port for Wiegand / OSDP Readers

The Hanwha NHP-P200 OnCAFE IP Controller is a two-door access controller that manages Wiegand and OSDP readers over a single PoE+ Ethernet connection. It suits installers and businesses that need to secure two doors from one compact, cloud-enabled unit. Built-in tamper monitoring and power monitoring with memory retention help keep the system's status and settings intact.

Key features

• Controls two doors with two Wiegand / OSDP reader ports, and supports up to 4 OSDP readers.
• Includes five supervised inputs plus up to four unsupervised OSDP flex inputs.
• Two Form-C wet relay outputs offer a selector for dry, 12VDC or 24VDC power.
• A dedicated RJ-45 10/100 PoE+ Ethernet port handles both network connection and power.
• Stores up to 50,000 cardholders and caches 250,000 events while offline.

Specifications

Model: NHP-P200

Vendor Name: 4602~Hanwha Vision

Product Line: OnCafe

Cloud Capabilities: Cloud Enabled

Installation notes

Set the relay power selector (dry, 12VDC or 24VDC) to match each lock or strike before connecting it. Because the controller is powered over PoE+, confirm the network switch port or injector supplies PoE+ before commissioning.
