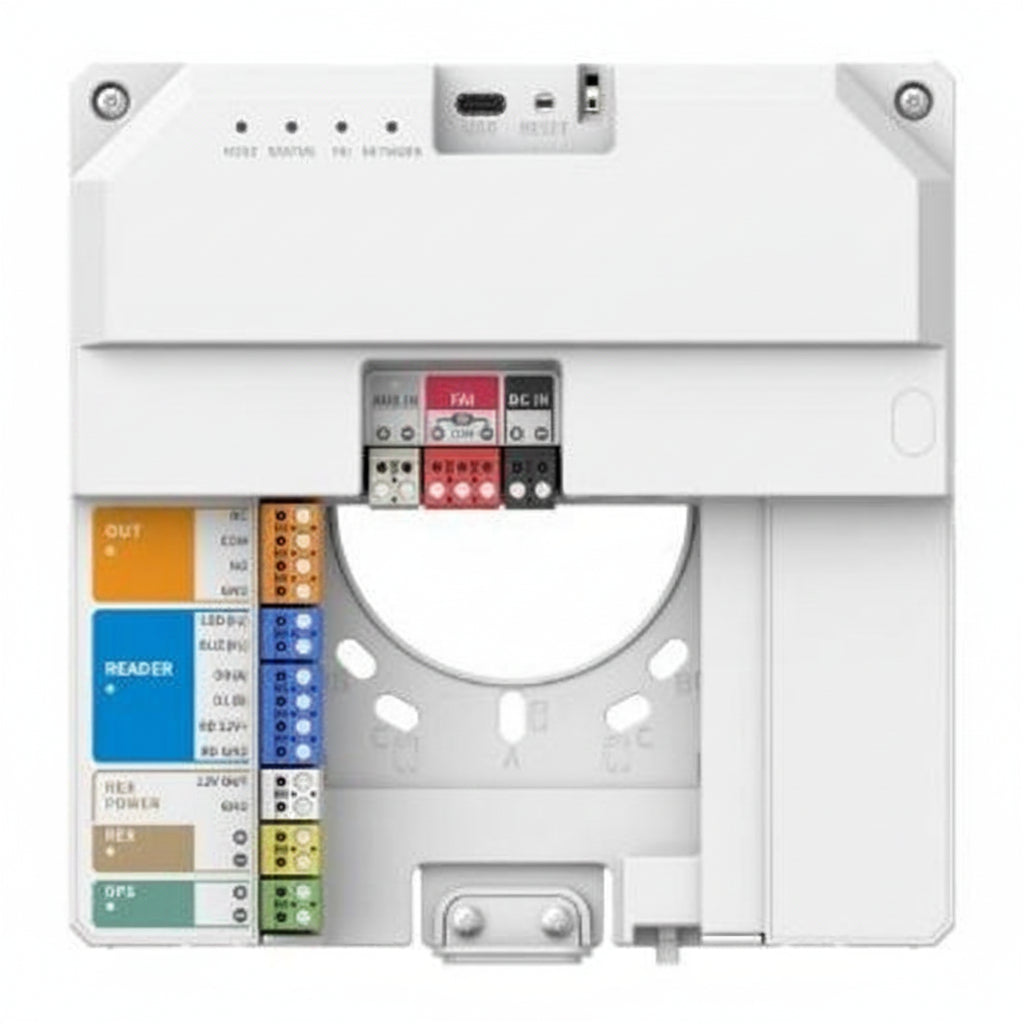

Hanwha NHP-P100 OnCAFE IP Controller, Single Door, 1-Port for Wiegand / OSDP Reader

The Hanwha NHP-P100 OnCAFE IP Controller is a single-door access controller that connects one Wiegand or OSDP reader to a door and manages who gets through it. It suits installers and businesses that want a compact, network-connected controller, and it is cloud enabled as part of Hanwha's OnCafe line. Its PoE+ Ethernet port and built-in tamper monitoring make it straightforward to deploy at a single opening.

Key features

• Controls one door through a single reader port that accepts Wiegand or OSDP, with support for up to 2 OSDP readers.
• Includes 3 supervised inputs plus up to 2 unsupervised OSDP flex inputs for door and sensor connections.
• Provides one Form-C wet relay output with a selector for dry, 12VDC or 24VDC power.
• Connects through a dedicated RJ-45 10/100 PoE+ Ethernet port.
• Holds up to 50,000 cardholders and caches 250,000 events when offline.
• Monitors its own power onboard and retains memory, and includes built-in tamper monitoring.

Specifications

Brand: Hanwha

Model: NHP-P100

Product Type: Single-Door Access Controller

Product Line: OnCafe

Vendor Name: 4602~Hanwha Vision

Application/Usage: Healthcare

Cloud Capabilities: Cloud Enabled

Installation notes

Mount the controller in a secure location on the protected side of the door, and run Ethernet to the PoE+ port from a switch that can supply enough power. Set the relay power selector to match the lock before connecting it, and test the reader, inputs and tamper function during commissioning.
